In this chapter we'll cover some textures that modify and combine colors.

TexAColorOp

One of the most used combination plugins. It has two input AColor textures, two optional multiplier textures, an optional separate alpha channel input texture and a lot of output textures: sum, difference, product, division, min, max, intensity, power and single color channel outputs.

Parameters

  • color_a - The first color
  • color_b - The second color
  • mult_a - Multiplier for the first color
  • mult_b - Multiplier for the second color
  • result_alpha - The alpha for the result; if not specified, the resulting alpha taken from the first color)
  • mode - Which output should be considered as the output of the main texture (0 - result_a, 1 - result_b, 2 - product, 3 - sum, 4 - difference, 5 - power, 6 - division, 7 - Minimum, 8 - Maximum, 9 - absolute difference), 10 - Lower intensity color, 11 - Greater intensity color
  • product - (color_a*mult_a)*(color_b*mult_b)
  • division - (color_a*mult_a)/(color_b*mult_b)
  • minimum - Min(color_a*mult_a , color_b*mult_b)
  • maximum - Max(color_a*mult_a , color_b*mult_b)
  • sum - (color_a*mult_a)+(color_b*mult_b)
  • difference - (color_a*mult_a)-(color_b*mult_b)
  • result_a - color_a*mult_a
  • result_b - color_b*mult_b
  • red - (color_a*mult_a).r
  • green - (color_a*mult_a).g
  • blue - (color_a*mult_a).b
  • alpha - (color_a*mult_a).a
  • intensity - mult_a*(color_a.r+color_a.g+color_a.b)/3.0
  • power - (color_a*mult_a)^mult_b


Example

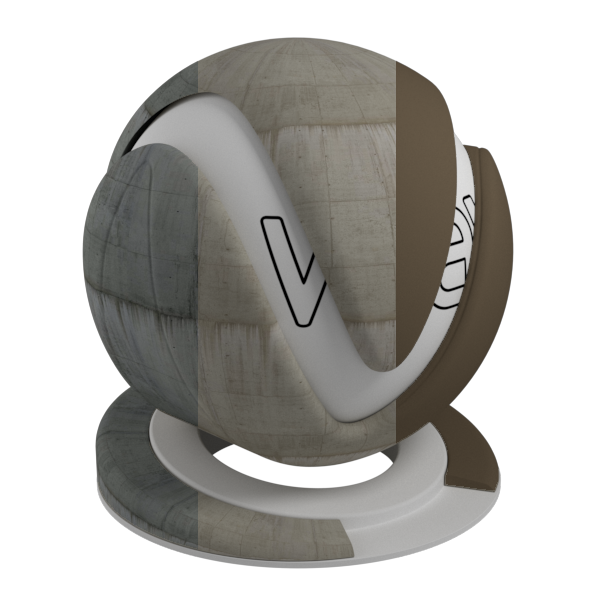

The middle section of the image is the result of multiplying Texture A (left) by Texture B (right).

Code


# Load scene from a file.
renderer.load(os.path.join(SCENE_PATH, 'material.vrscene'))

newBitmap = renderer.classes.BitmapBuffer()
newBitmap.file = os.path.join('assets', 'bricks01.jpg')
newTexture = renderer.classes.TexBitmap()
newTexture.bitmap = newBitmap

newBitmap2 = renderer.classes.BitmapBuffer()
newBitmap2.file = os.path.join('assets', 'Wood_Diff.jpg')
newTexture2 = renderer.classes.TexBitmap()
newTexture2.bitmap = newBitmap2

# Create a new TexAColorOp to combine the textures
combinedTexture = renderer.classes.TexAColorOp()
# Assign the input textures
combinedTexture.color_a = newTexture
combinedTexture.color_b = newTexture2
combinedTexture.mode = 2   # product mode

diffuseBRDF = renderer.classes.BRDFDiffuse()
diffuseBRDF.color_tex = combinedTexture

newMaterial = renderer.classes.MtlSingleBRDF()
newMaterial.brdf = diffuseBRDF

newNode = renderer.classes.Node()
newNode.material = newMaterial
newNode.geometry = renderer.plugins['CubeShape@mesh2']
newNode.transform = vray.Transform(vray.Matrix(1), vray.Vector(-15, 0, 0))
// Load scene from a file.
renderer.load("material.vrscene");

BitmapBuffer newBitmap = renderer.newPlugin<BitmapBuffer>();
newBitmap.set_file("assets" PATH_DELIMITER "bricks01.jpg");
TexBitmap newTexture = renderer.newPlugin<TexBitmap>();
newTexture.set_bitmap(newBitmap);

BitmapBuffer newBitmap2 = renderer.newPlugin<BitmapBuffer>();
newBitmap2.set_file("assets" PATH_DELIMITER "Wood_Diff.jpg");
TexBitmap newTexture2 = renderer.newPlugin<TexBitmap>();
newTexture2.set_bitmap(newBitmap2);

// Create a new TexAColorOp to combine the textures
TexAColorOp combinedTexture = renderer.newPlugin<TexAColorOp>();
// Assign the input textures
combinedTexture.set_color_a(newTexture);
combinedTexture.set_color_b(newTexture2);
combinedTexture.set_mode(2);   // product mode

BRDFDiffuse diffuseBRDF = renderer.newPlugin<BRDFDiffuse>();
diffuseBRDF.set_color_tex(combinedTexture);

MtlSingleBRDF newMaterial = renderer.newPlugin<MtlSingleBRDF>();
newMaterial.set_brdf(diffuseBRDF);

Node newNode = renderer.newPlugin<Node>();
newNode.set_material(newMaterial);
newNode.set_geometry(renderer.getPlugin("CubeShape@mesh2"));
newNode.set_transform(Transform(Matrix(1), Vector(-15, 0, 0)));
// Load scene from a file.
renderer.Load("material.vrscene");

BitmapBuffer newBitmap = renderer.NewPlugin<BitmapBuffer>();
newBitmap.File = Path.Combine("assets", "bricks01.jpg");
TexBitmap newTexture = renderer.NewPlugin<TexBitmap>();
newTexture.Bitmap = newBitmap;

BitmapBuffer newBitmap2 = renderer.NewPlugin<BitmapBuffer>();
newBitmap2.File = Path.Combine("assets", "Wood_Diff.jpg");
TexBitmap newTexture2 = renderer.NewPlugin<TexBitmap>();
newTexture2.Bitmap = newBitmap2;

// Create a new TexAColorOp to combine the textures
TexAColorOp combinedTexture = renderer.NewPlugin<TexAColorOp>();
// Assign the input textures
combinedTexture.ColorA = newTexture;
combinedTexture.ColorB = newTexture2;
combinedTexture.Mode = 2;   // product mode

BRDFDiffuse diffuseBRDF = renderer.NewPlugin<BRDFDiffuse>();
diffuseBRDF.ColorTex = combinedTexture;

MtlSingleBRDF newMaterial = renderer.NewPlugin<MtlSingleBRDF>();
newMaterial.Brdf = diffuseBRDF;

Node newNode = renderer.NewPlugin<Node>();
newNode.Material = newMaterial;
newNode.Geometry = renderer.GetPlugin("CubeShape@mesh2");
newNode.Transform = new Transform(new Matrix(1), new Vector(-15, 0, 0));
// Load scene from a file synchronously.
renderer.loadSync("material.vrscene");

var newBitmap = renderer.classes.BitmapBuffer();
newBitmap.file = path.join("assets", "bricks01.jpg");
var newTexture = renderer.classes.TexBitmap();
newTexture.bitmap = newBitmap;

var newBitmap2 = new renderer.classes.BitmapBuffer();
newBitmap2.file = path.join("assets", "Wood_Diff.jpg");
var newTexture2 = new renderer.classes.TexBitmap();
newTexture2.bitmap = newBitmap2;

// Create a new TexAColorOp to combine the textures
var combinedTexture = new renderer.classes.TexAColorOp();
// Assign the input textures
combinedTexture.color_a = newTexture;
combinedTexture.color_b = newTexture2;
combinedTexture.mode = 2;   // product mode

var diffuseBRDF = new renderer.classes.BRDFDiffuse();
diffuseBRDF.color_tex = combinedTexture;

var newMaterial = renderer.classes.MtlSingleBRDF();
newMaterial.brdf = diffuseBRDF;

var newNode = renderer.classes.Node();
newNode.material = newMaterial;
newNode.geometry = renderer.plugins["CubeShape@mesh2"];
newNode.transform = vray.Transform(vray.Matrix(1), vray.Vector(-15, 0, 0));

TexBlend

Blend two input AColor textures using another float texture for weighting (or a constant value, of course).

Parameters

  • color_a - input texture A
  • color_b - input texture B
  • blend_amount - blend coefficient (could be a texture)
  • composite - If true, color_b will be composited over color_a with the given weight, taking its alpha into account


Example

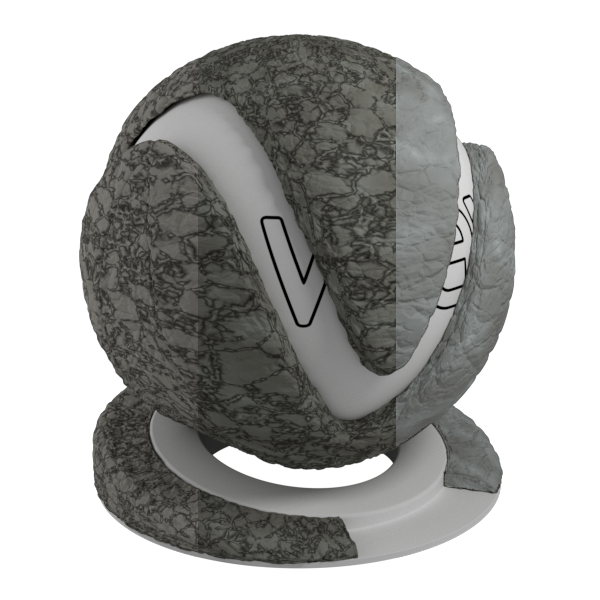

The middle section of the image represents a mix between Texture Top (left) and Color Bottom (right).


TexClamp

Clamp an input texture between some min and max values.

Parameters

  • texture - Input texture
  • min_color - Minimum value to sample from texture
  • max_color - Maximum value to sample from texture


TexCondition

Switch between two AColor textures depending on some type of comparison between two float textures.

Parameters

  • operation - The condition check: 0 - equal, 1 - not equal, 2 - greater than, 3 - greater or equal, 4 - less than, 5 - less or equal
  • op_a - The first number to compare
  • op_b - The second number to compare
  • result_true - The color to return if the condition is true
  • result_false - The color to return if the condition is false
  • color - The resulting color


Example

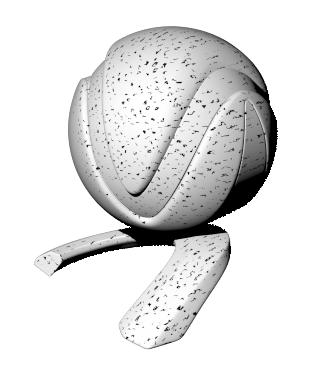

Here we combine the checkered and marble textures, and output black where their contours match.



TexFloatOp

Similar to TexAColorOp for floats, it has a whole lot of functions.

Parameters

  • float_a - The first number
  • float_b - The second number
  • product - float_a*float_b
  • ratio - float_a/float_b
  • sum - float_a+float_b
  • difference - float_a-float_b
  • power - The first number raised to the power of the second number
  • sin - sin(float_a*float_b)
  • cos - cos(float_a*float_b)
  • asin - asin(float_a*float_b)
  • acos - acos(float_a*float_b)
  • atan - atan(float_a*float_b)
  • atan2 - atan2(float_b, float_a), computes the arctangent of float_b/float_a
  • min - min(float_a, float_b)
  • max - max(float_a, float_b)
  • abs - abs(float_a)
  • ceil - ceil(float_a)
  • exp - exp(float_a)
  • floor - floor(float_a)
  • log - log(float_a)
  • log10 - log10(float_a)
  • sqrt - square root of float_a
  • fmod - fmod(float_a, float_b)
  • average - (float_a+float_b)*0.5
  • tan - tan(float_a)
  • mode - Determines what output to use when no output parameter is specified. Useful if the type of the operation needs to be animatable.


TexGradient, TexGradRamp, TexRamp

Gradient textures.

Parameters

  • compatibility_with - This is used to differentiate between textures exported from different applications. The value means : 0 - 3ds Max (this is also the default), 1 - Maya, ...
  • alpha_from_intensity - If 2 - the alpha is forced to 1.0f; 1 - the resulting alpha is the color intensity (if compatibility_with is 0) or the color luminance (if compatibility_with is 1); 0 - the alpha is taken from the bitmap alpha
  • invert - If true, the resulting texture color will be inverted
  • invert_alpha - If true and invert is on, the resulting texture alpha will be inverted too. If false, just the color will be inverted
  • color_mult - A multiplier for the texture color
  • color_offset - An additional offset for the texture color
  • alpha_mult - A multiplier for the texture alpha
  • alpha_offset - An additional offset for the texture alpha
  • nouvw_color - The color when there are no valid uvw coordinates
  • color - The resulting color
  • out_transparency - The resulting transparency
  • out_alpha - The resulting alpha
  • out_intensity - The resulting intensity
  • uvwgen - The uvw generator for the texture
  • placement_type - The way the valid portion of the texture is applied: 0 - the whole texture is valid, 1 - crop, 2 -place
  • u - U coordinate of the valid texture sector
  • v - V coordinate of the valid texture sector
  • w - Width of the valid texture sector
  • h - Height of the valid texture sector
  • jitter - Amount of random placement variation
  • tile_u - If true there is horizontal tiling
  • tile_v - If true there is vertical tiling
  • uv_noise_on - If true the noise is enabled.
  • uv_noise_animate - If true the noise is animated. Use "UV noise phase" to animate the noise.
  • uv_noise_amount - UV noise amount
  • uv_noise_levels - UV noise iterations
  • uv_noise_size - UV noise size
  • un_noise_phase - UV noise phase
  • positions - positions of the given colors
  • colors - the given colors
  • texture_map - the texture used for mapped gradient ramp
  • gradient_type - 0:four corner, 1:box, 2:diagonal, 3:lighting, 4:linear, 5:mapped, 6:normal, 7:pong, 8:radial, 9:spiral, 10:sweep, 11:tartan
  • interpolation - 0:none, 1:linear, 2:expUp, 3:expDown, 4:smooth, 5:bump, 6:spike
  • noise_amount - Distortion noise amount
  • noise_type - 0:regular, 1:fractal, 2:turbulence
  • noise_size - default = 1.0
  • noise_phase - default = 0.0
  • noise_levels - default = 4.0
  • noise_treshold_low - default = 0.0f
  • noise_treshold_high - default = 1.0f
  • noise_smooth - default = 0.0f
  • gradient_position - When 'gradient_type' is 'position' this will specify the position of color in gradient to return


Example

Here's an example with gradient maps used for the wallpaper, the chair, and the tree's decorations:




TexHSVToRGB

Convert HSV input texture to RGB.

Parameters

  • inHsv - Input texture in HSV format
  • color - Output texture in RGB format


TexInvert

Returns the input texture's complementary color.

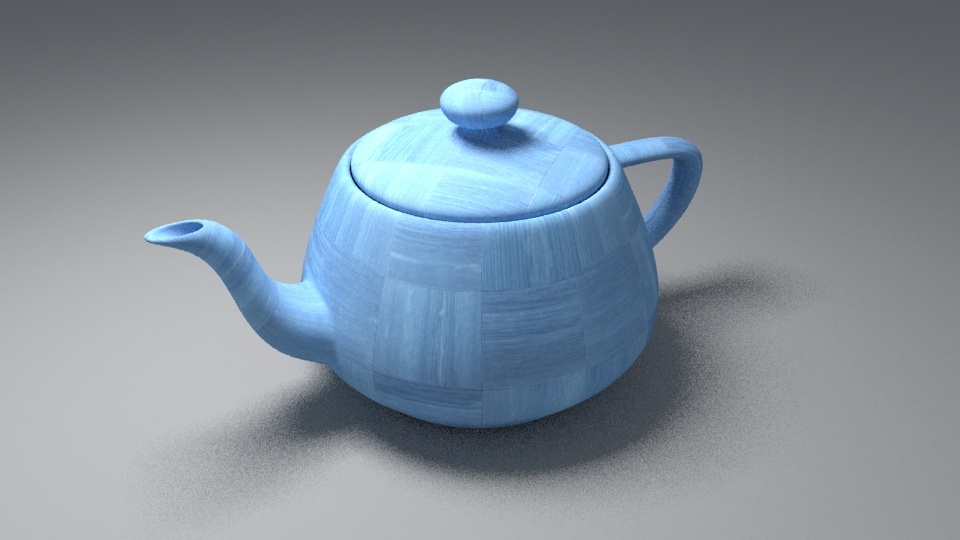

The following scene is rendered by using the scene bundle and uncommenting "vrscenes/map_41 TexInvert.vrscene".



Parameters

  • texture - The texture to be inverted
  • invert_alpha - Whether to invert alpha channel also
  • color - The inverted texture color

TexLayered

Combine an unlimited number of textures.

Parameters

  • compatibility_with - This is used to differentiate between textures exported from different applications. The value means : 0 - 3ds Max (this is also the default), 1 - Maya, ...
  • alpha_from_intensity - If 2 - the alpha is forced to 1.0f; 1 - the resulting alpha is the color intensity (if compatibility_with is 0) or the color luminance (if compatibility_with is 1); 0 - the alpha is taken from the bitmap alpha
  • invert - If true, the resulting texture color will be inverted
  • invert_alpha - If true and invert is on, the resulting texture alpha will be inverted too. If false, just the color will be inverted
  • color_mult - A multiplier for the texture color
  • color_offset - An additional offset for the texture color
  • alpha_mult - A multiplier for the texture alpha
  • alpha_offset - An additional offset for the texture alpha
  • nouvw_color - The color when there are no valid uvw coordinates
  • color - The resulting color
  • out_transparency - The resulting transparency
  • out_alpha - The resulting alpha
  • out_intensity - The resulting intensity
  • textures - Textures to layer
  • blend_modes - 0:None, 1:Over, 2:In, 3:Out, 4:Add, 5:Subtract, 6:Multiply, 7:Difference, 8:Lighten, 9:Darken, 10:Saturate, 11:Desaturate, 12:Illuminate
  • alpha - Texture or float for alpha coefficient


TexLuminance

Returns a single float luminance (0.3R + 0.59G + 0.11B) from input color texture. Note that in V-Ray terms this is different from the "intensity" term, which is (0.33R + 0.33G + 0.33B).

Parameters

  • input - Input texture
  • luminance - Output texture with float values


TexRaySwitch

Use a different texture for different types of rays: shadow, GI, reflection, refraction and default.

Parameters

  • default_texture - This texture is used if texture is not set for specific ray type or if the ray type is unknown.
  • shadow_ray_texture - This texture is used for shadow rays.
  • gi_ray_texture - This texture is used for GI rays.
  • reflect_ray_texture - This texture is used for reflection rays.
  • refract_ray_texture - This texture is used for refraction rays.


TexRemap

Remap an input texture color through some kind of user-defined curve.

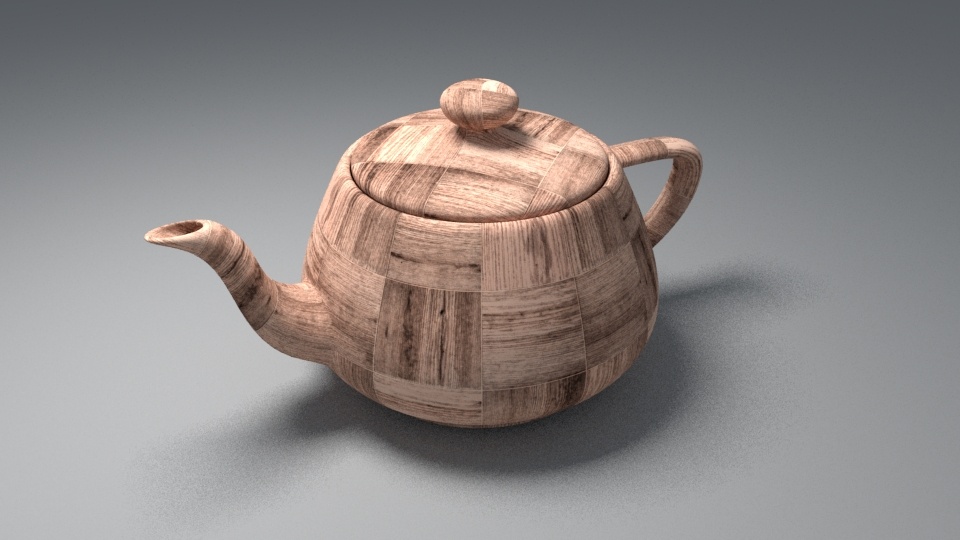

The scene is "vrscenes/map_05 TexBitmap & TexRemap.vrscene".


Parameters

  • type - type of conversion: 0:RemapValue, 1:RemapColor, 2:RemapHSV.
  • float_positions - positions of the given float values
  • float_values - the given float values
  • float_types - interpolation types for the floats (None - 0; Linear - 1; Smooth - 2; Spline - 3)
  • color_positions - the given float values
  • color_colors - the given colors
  • color_types - interpolation types for the colors (None - 0; Linear - 1; Smooth - 2; Spline - 3)
  • red_positions - positions of the given values for the red channel
  • red_values - the given values for the red channel
  • red_types - interpolation types for the red channel (None - 0; Linear - 1; Smooth - 2; Spline - 3)
  • green_positions - positions of the given values for the green channel
  • green_values - the given values for the green channel
  • green_types - interpolation types for the green channel (None - 0; Linear - 1; Smooth - 2; Spline - 3)
  • blue_positions - positions of the given values for the blue channel
  • blue_values - the given values for the blue channel
  • blue_types - interpolation types for the blue channel (None - 0; Linear - 1; Smooth - 2; Spline - 3)
  • hue_positions - positions of the given values for the hue channel
  • hue_values - the given values for the hue channel
  • hue_types - interpolation types for the hue channel (None - 0; Linear - 1; Smooth - 2; Spline - 3)
  • saturation_positions - positions of the given values for the saturation channel
  • saturation_values - the given values for the saturation channel
  • saturation_types - interpolation types for the saturation channel (None - 0; Linear - 1; Smooth - 2; Spline - 3)
  • value_positions - positions of the given values for the value channel
  • value_values - the given values for the value channel
  • value_types - interpolation types for the value channel (None - 0; Linear - 1; Smooth - 2; Spline - 3)
  • alpha_from_intensity - If true, the resulting alpha is the color intensity; otherwise the alpha is taken from the colors
  • out_value - the output value, depending on input_value and color params
  • out_color - the output color, depending on input_value/input_color and float params
