This page provides information about the BIM information panel in Enscape for Acrhicad.
Overview
The Enscape BIM information panel opens within the Enscape window and allows easy selection and inspection of all BIM data within a project.
You can open and close the BIM Information panel by pressing the B key on your keyboard when the Enscape Viewport is in focus or by clicking on the associated BIM Mode button.

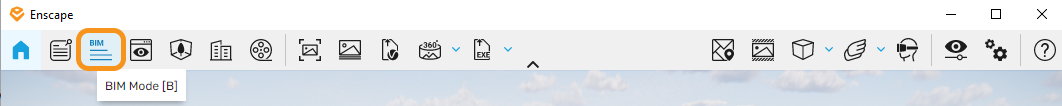

BIM Mode button
The BIM Information panel opens on the left-hand side of the Enscape window and can be opened in all Projections.
All BIM information is listed and categorized according to how it was entered in Archicad. It allows you to display and, to a certain extent, browse BIM Data in your project. This information is only editable in Archicad.

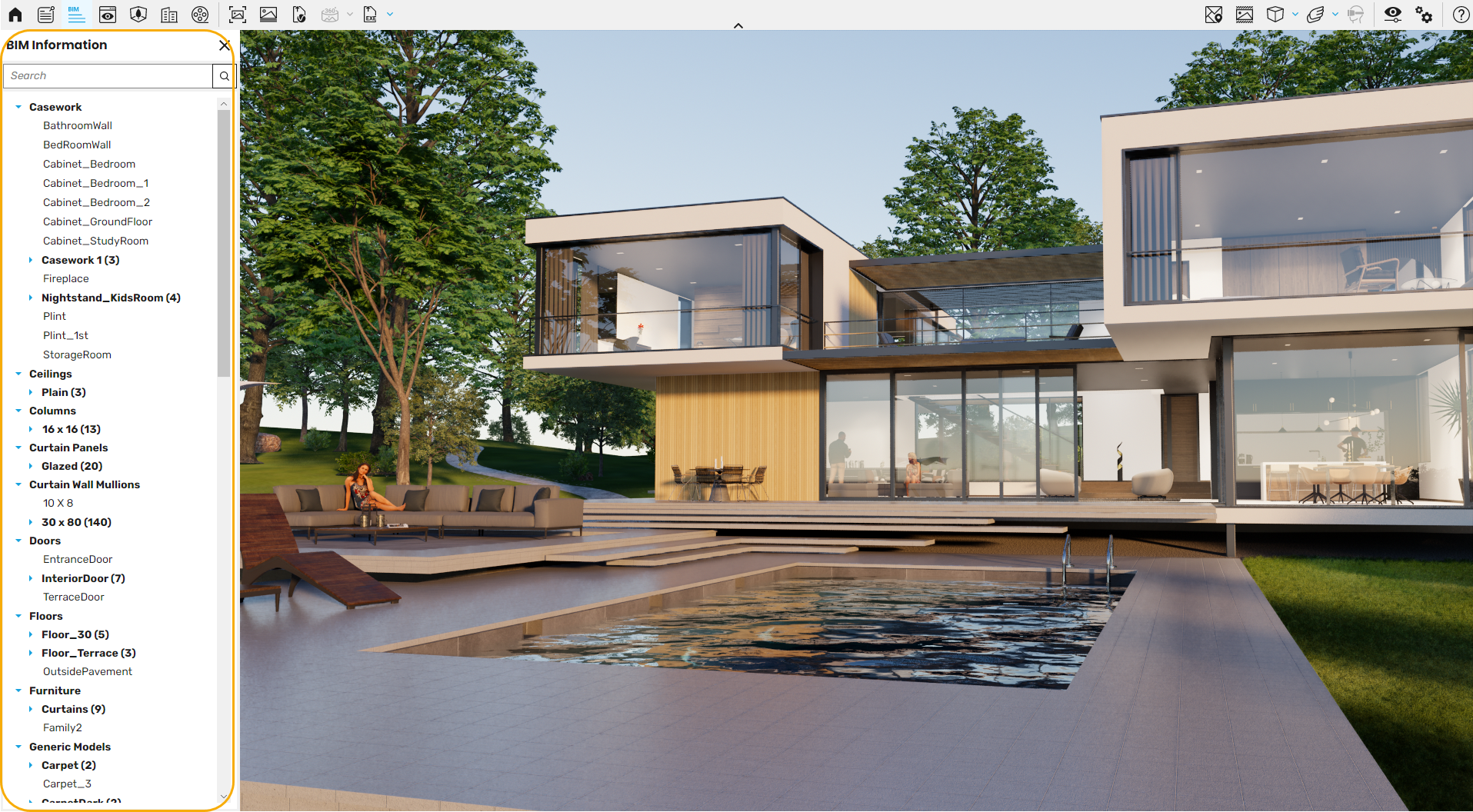

BIM Information Panel in Enscape Viewport
Selecting BIM Information
You can select the element to view its information in several ways.
You can directly select it in the Enscape window. Move the mouse over the desired area, and each element is highlighted. Alternatively, you can select the element from the list in the BIM Information panel, and as you move the mouse over each element it is highlighted.

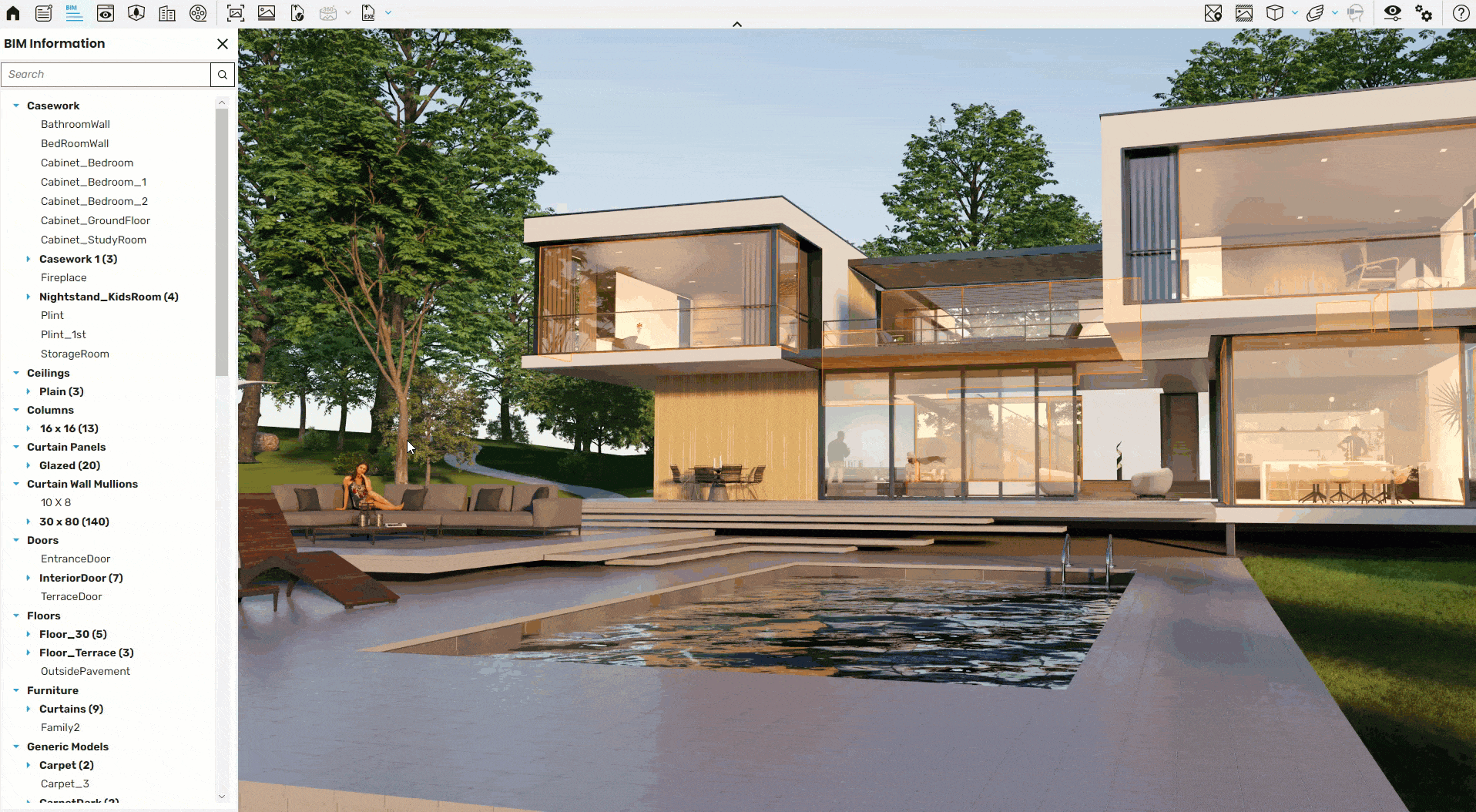

Selecting BIM Information
You can also use the Search facility to be found at the top of the BIM Information panel. It returns any BIM Information relating to the search term you use. If you hover over the returned results, the top-level items highlight all the objects of that type in the Enscape window. You can then expand the top-level item (by clicking the arrow next to it) and click on its instances to view the BIM data of each instance.

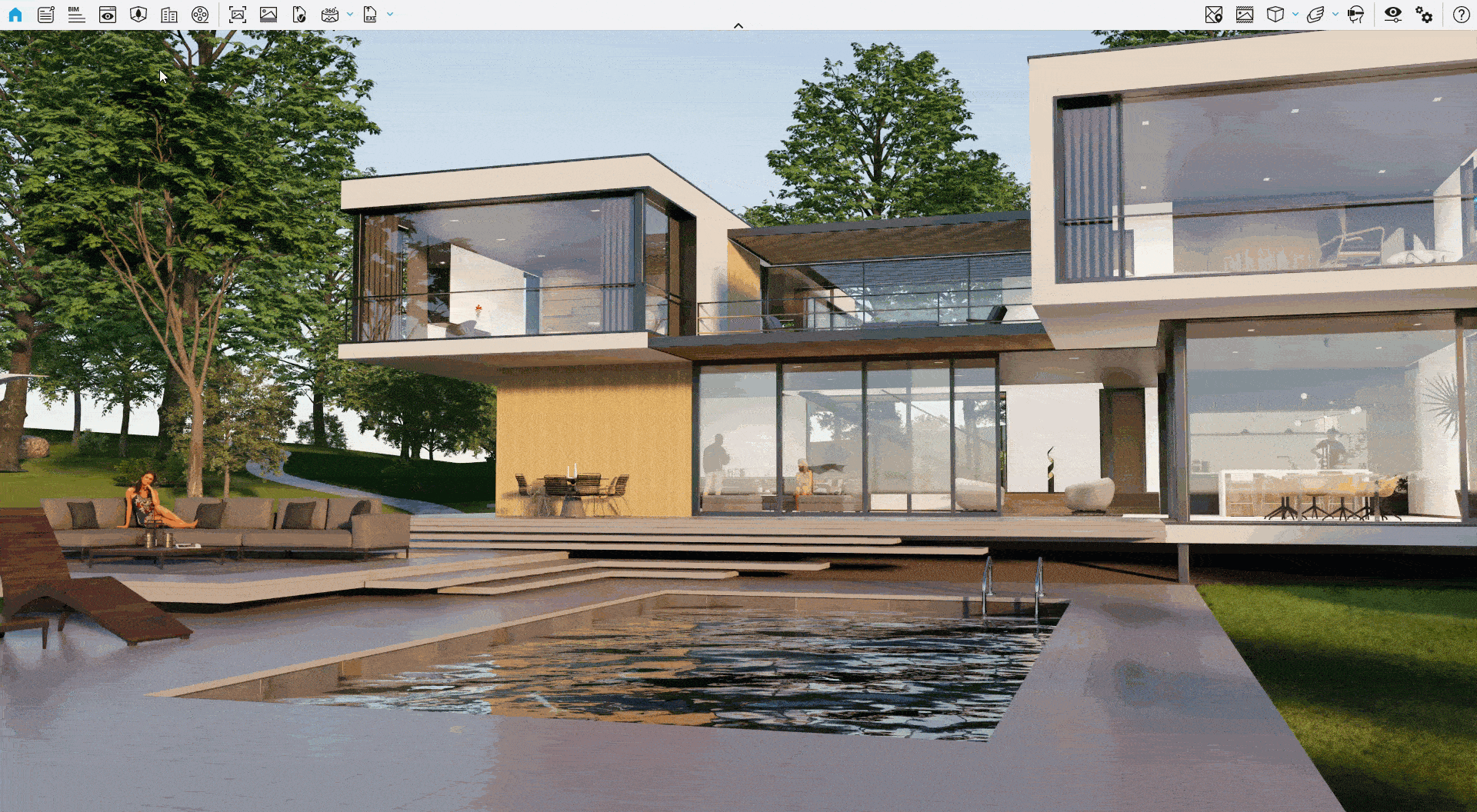

Search BIM Information
Lastly, right-clicking on geometry in the Enscape window provides two options, one option being Show BIM Data.

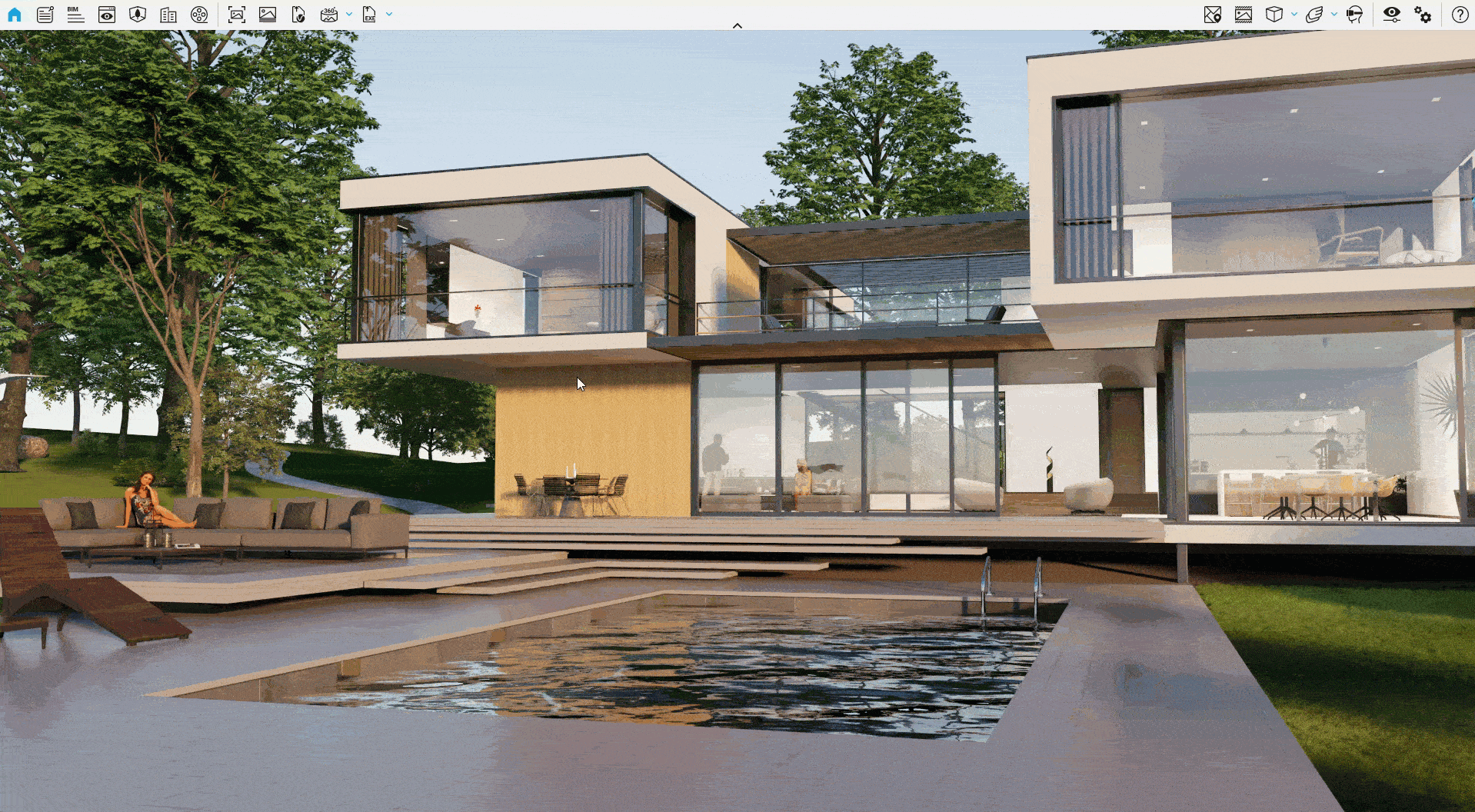

Show BIM Data
