This page provides information about the Toon Render Channel in V-Ray for Blender.


Overview


The V-Ray Toon Render Channel renders the entire scene with the V-Ray Toon rendering effect and contains a mask for the toon outlines, although the toon color is not present in it. It also supports opacity set from the toon effect, presenting it as grayed outlines.


UI Path: ||V-Ray Node Editor|| > World > Render Channels > Advanced > V-Ray Toon


beauty render Before image

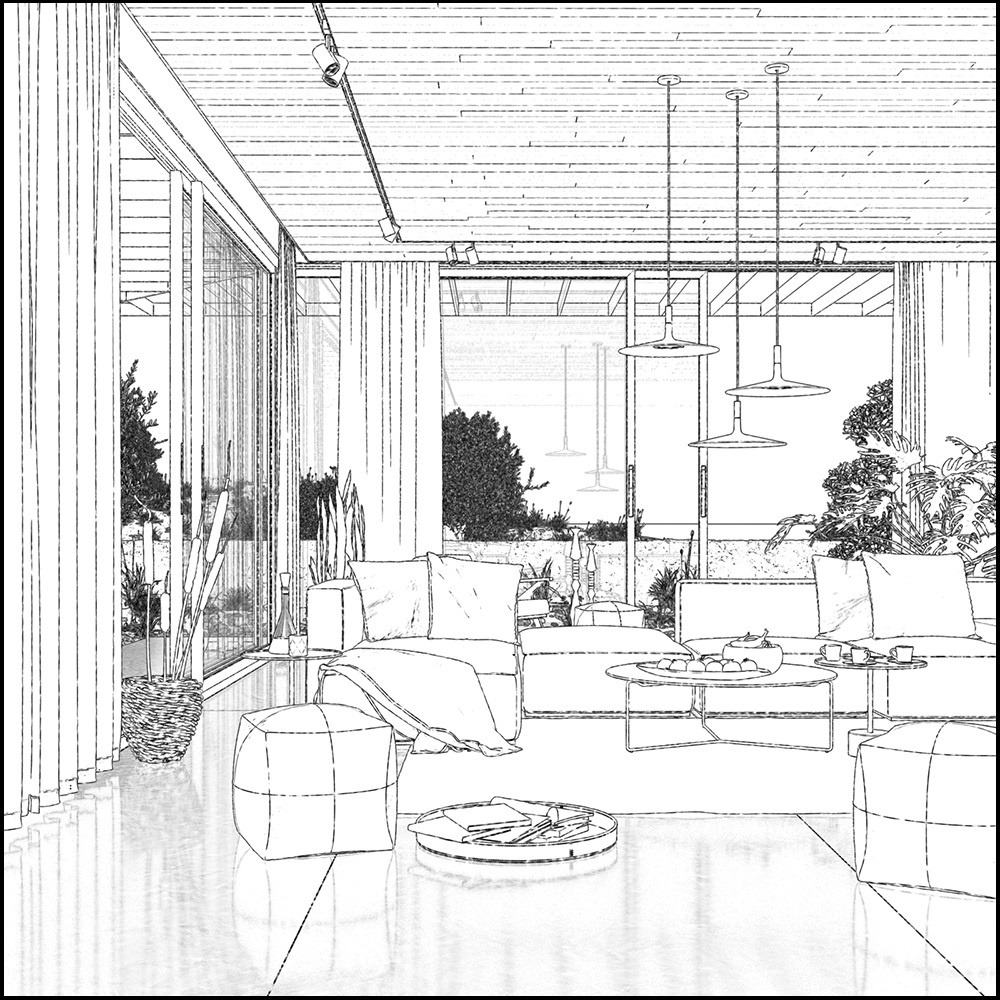

toon channel After image


Properties


See the Render Channels page to find out where you can find these properties.


Channel Name – Customizable name for the render channel.

Enable Deep Output  Specifies whether to include this render channel in deep images.

Color Mapping

Consider For Anti-Aliasing – When enabled, anti-aliasing is used where possible.

Filtering –  Applies an image filter to this channel.

Derive Raw Channels – Generates data in the raw channels by combining the respective color and the filter color channels.

Vfb Color Corrections – Applies the post-render color adjustments made from the VFB.

Denoise – Enables the render channel's denoising, provided the Denoiser is enabled.



Common Uses


V-Ray Toon is often used for creating cartoon-like renders. This can be achieved my Multiplying it by the V-Ray Diffuse render channel in a compositing or editing software.
