This page provides information about the Lighting Render Element in V-Ray for Cinema 4D.


Overview



 The Lighting Render Element stores direct lighting information from lights in the scene and materials as lit by the lighting. This render element can be used to brighten, lessen, or tint the direct lighting in a composite.

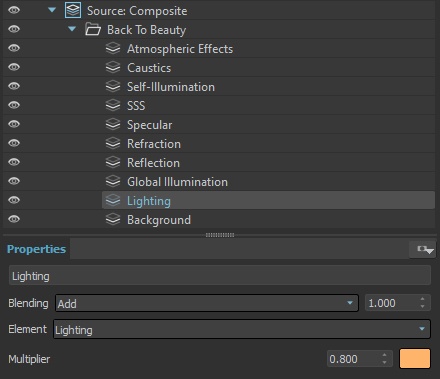

The VRayLighting render element is the same as VRayRawLighting multiplied by VrayDiffuseFilter. VRayLighting is provided as a convenience to the compositor.


UI Path: ||V-Ray|| > Render Elements > Lighting

How to add a render element to a scene

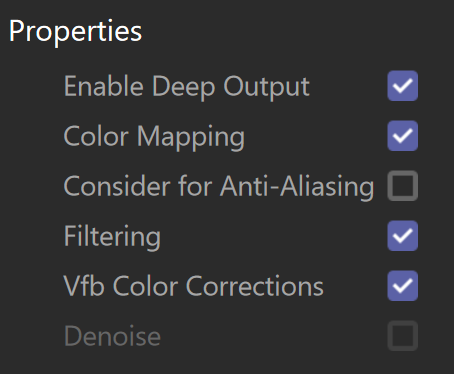

Properties


Enable Deep OutputSpecifies whether to include this render element in deep images.

Color Mapping – Applies the color mapping options specified in the Color Mapping rollout of the V-Ray tab in the Render Settings window to this render element. This option is enabled by default.

Consider for Anti-Aliasing – When enabled, anti-aliasing is used where possible.

Filtering –  Applies an image filter to this channel.

Derive Raw Channels – Generates data in the raw channels by combining the respective color and the filter color channels.

Vfb Color Corrections – Applies the post-render color adjustments made from the VFB.

Denoise – Enables the render element's denoising, provided the Denoiser render element is present.
