This page provides information about the SSS Render Element in V-Ray for Cinema 4D.


Overview

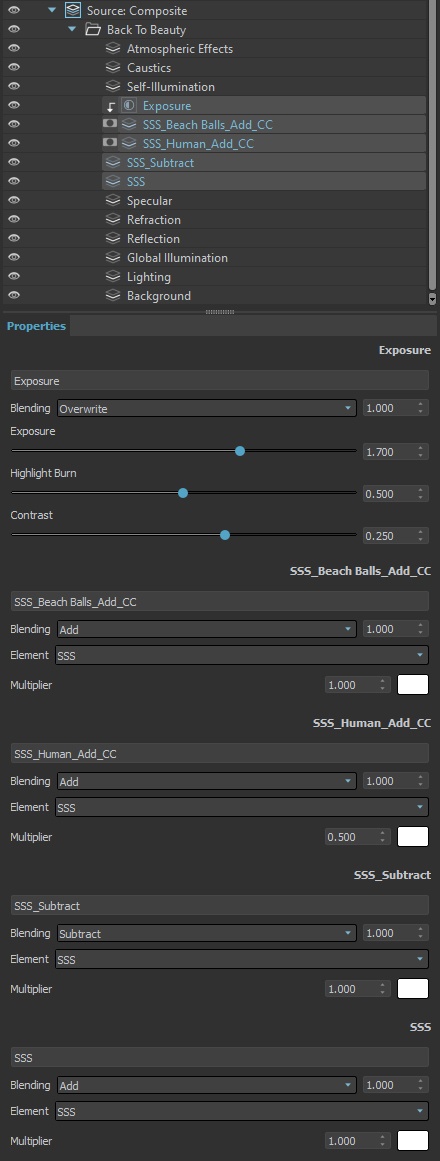

The SSS Render Element stores information calculated from Subsurface Scattering materials (VRayFastSSS2/VRayMtl).  This render element can then be used to enhance or color-correct just the subsurface scattering component of the image during the compositing process.


UI Path: ||V-Ray|| > Render Elements > SSS


How to add a render element to a scene

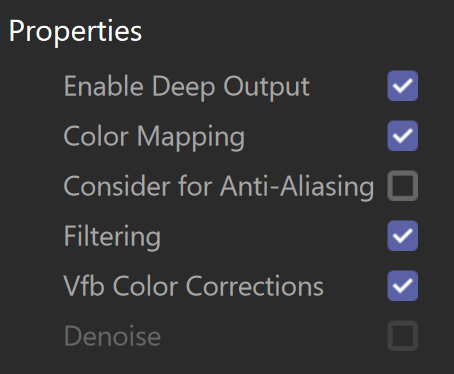

Properties

Enable Deep Output – Specifies whether to include this render element in deep images.

Color Mapping – Applies the color mapping options specified in the Color Mapping rollout of the V-Ray tab in the Render Settings window to this render element. This option is enabled by default.

Consider for Anti-Aliasing – When enabled, anti-aliasing is used where possible.

Filtering –  Applies an image filter to this channel.

Derive Raw Channels – Generates data in the raw channels by combining the respective color and the filter color channels.

Vfb Color Corrections – Applies the post-render color adjustments made from the VFB.

Denoise – Enables the render element's denoising, provided the Denoiser render element is present.
