This page contains information about the V-Ray AovExtraTex node.
Overview
The V-Ray AOV ExtraTex (USD) node is used to export a V-Ray Extra Texture element based on the attached input. The input texture is applied over the geometry associated with the material holding the AOV bind.

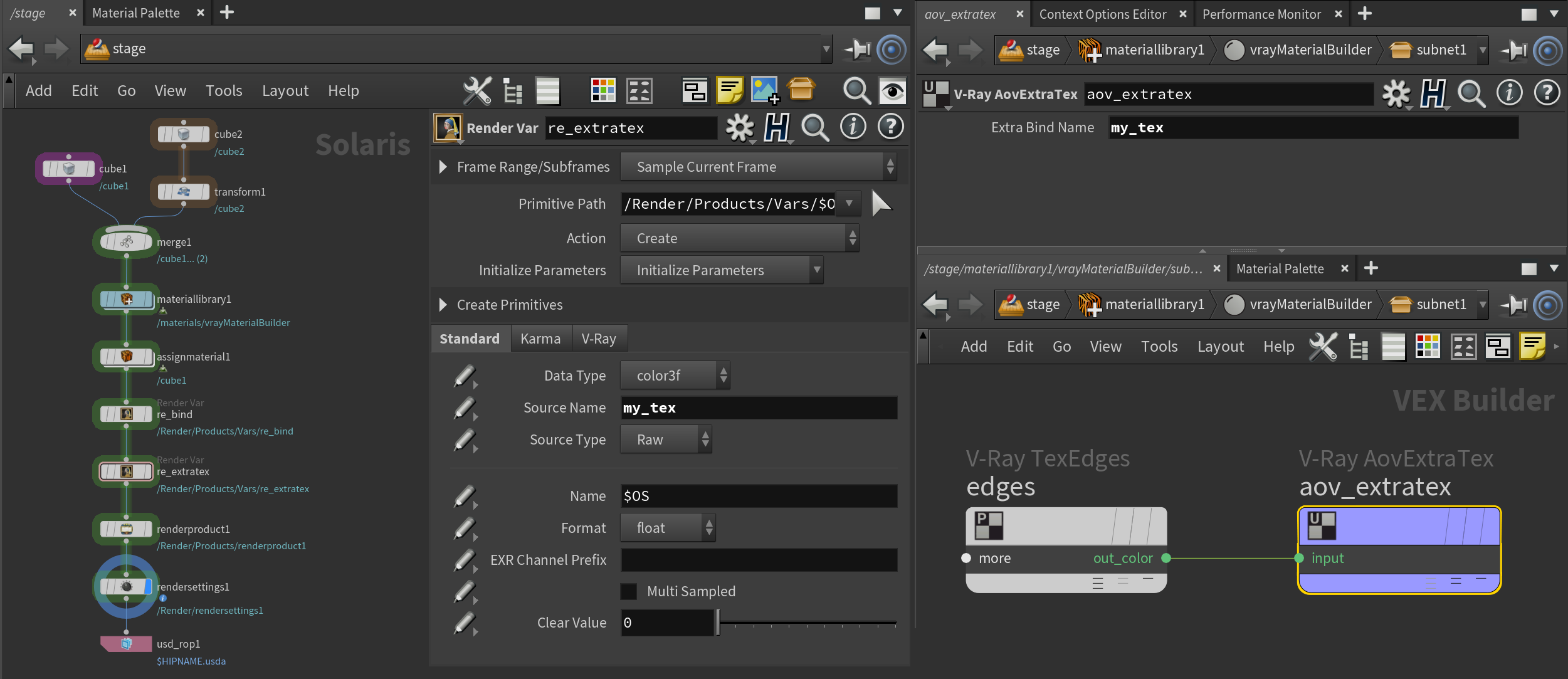

To create a global Extra Texture AOV, add a V-Ray ExtraTexAOV VOP in a shading network inside a Material Library VOP, and point a RenderVar LOP to the Extra Bind Name parameter value of the VOP node.
Parameters
Extra Bind Name – Specifies the ExtraTex AOV name.
