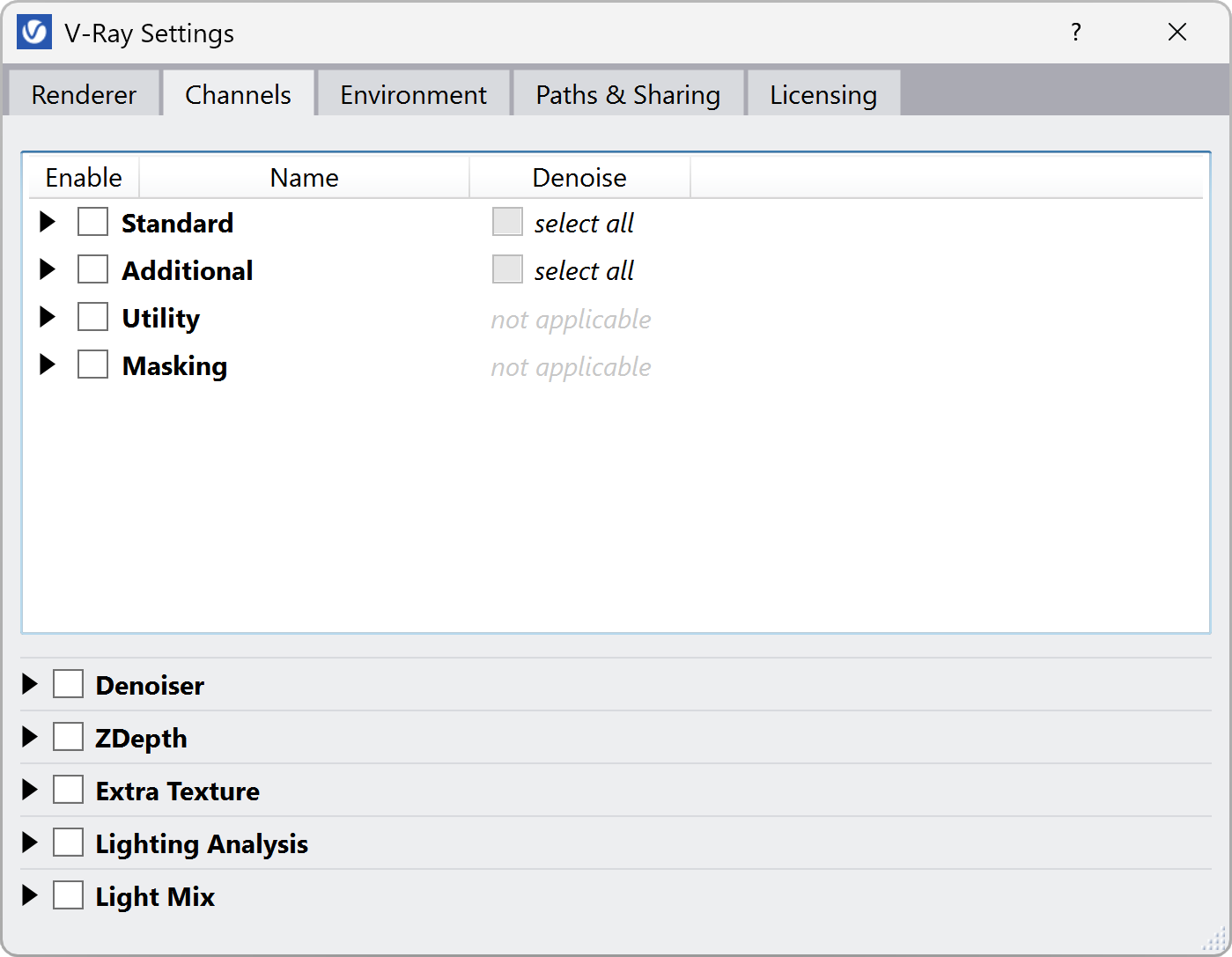

This page provides details on the Channels settings available in V-Ray for Revit.

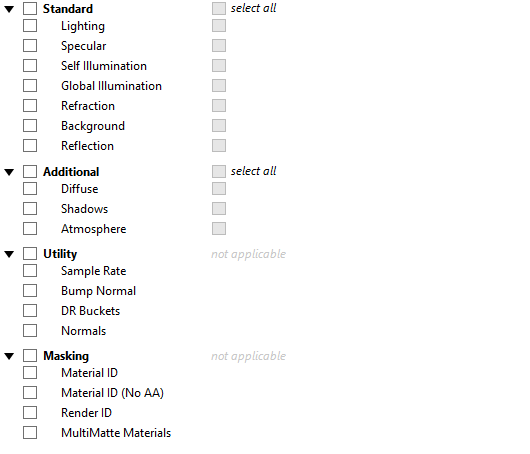

Standard Channels

The Render Channels Container allows you to extract one or more render elements from the final image.

Lighting – The diffuse direct surface lighting.

Specular – The surface specular highlights.

Self Illumination – The self-illumination of the surface.

GI – The diffuse surface global illumination.

Refraction – The refractions on the surface.

Background – The image background as set in the project, with the rest of the image rendered as black.

Reflection – The reflections on the surface.

Diffuse – The pure diffuse surface color.

Shadows – The diffuse light that was blocked by other objects.

Atmosphere – Atmospheric effects.

Sample Rate – Shows an image where the pixel brightness is directly proportional to the number of samples taken at this pixel.

Bump Normal – The normals generated by bump maps.

DR Bucket – Allows you to extract an image which shows which bucket was rendered by which machine during distributed rendering.

Normals – The surface normals.

Material ID – Provides a mask for individual objects and materials that are easy to select in compositing software.

  • Shows each material as a solid unshaded color.
  • Supports anti-aliasing at the edges of objects where they meet other objects or the background.
  • This channel is not supported in RT GPU rendering.

Material ID (no AA) – Provides a mask for individual objects and materials that are easy to select in compositing software.

  • Shows each material as a solid unshaded color.
  • Assigns a Material ID to each pixel in the render element
  • Does not support anti-aliasing as each pixel can have only a single Material ID assigned to it.
  • This channel is supported in RT GPU rendering.

Render ID  – Creates selection masks based on the node handle of each object.

MultiMatte Materials  – Creates red, green and blue selection masks based on the ID Number set within the V-Ray material.
