Grid

The V-Ray Grid texture map generates a procedural grid texture.

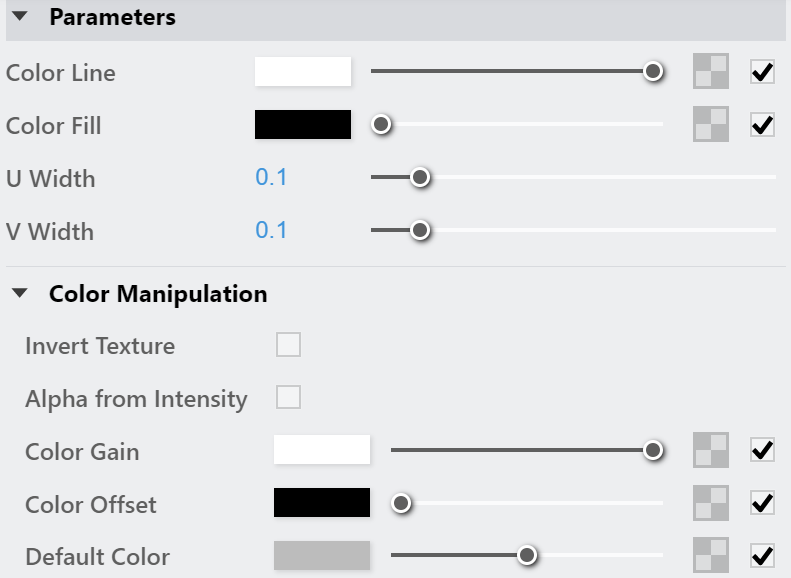

Color Line – Specifies the grid line's color or texture. When a texture is selected, it overrides the color as long as the texture checkbox is enabled.

Color Fill – Specifies the grid fill's color or texture. When a texture is selected, it overrides the color as long as the texture checkbox is enabled.

U Width – Controls the horizontal line width.

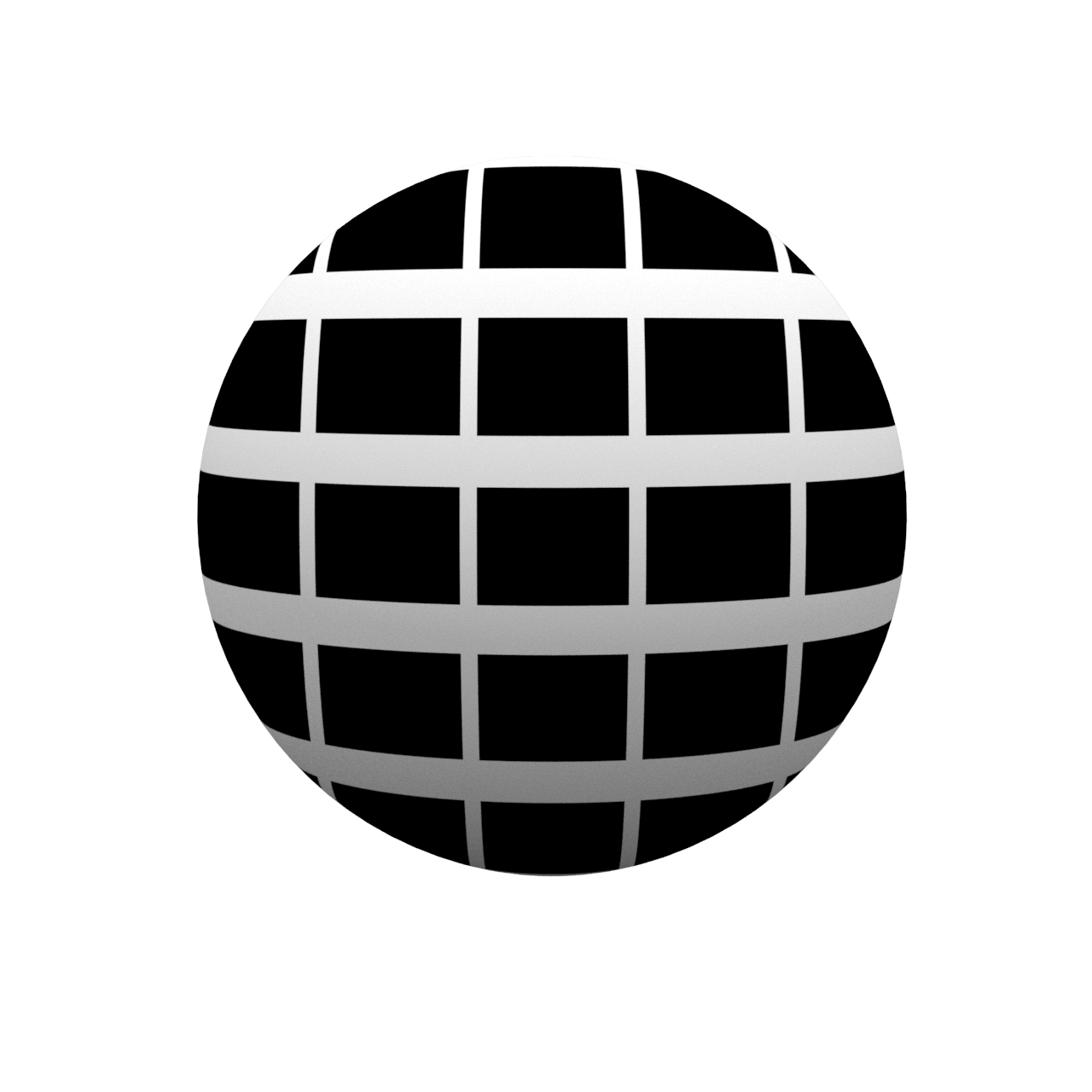

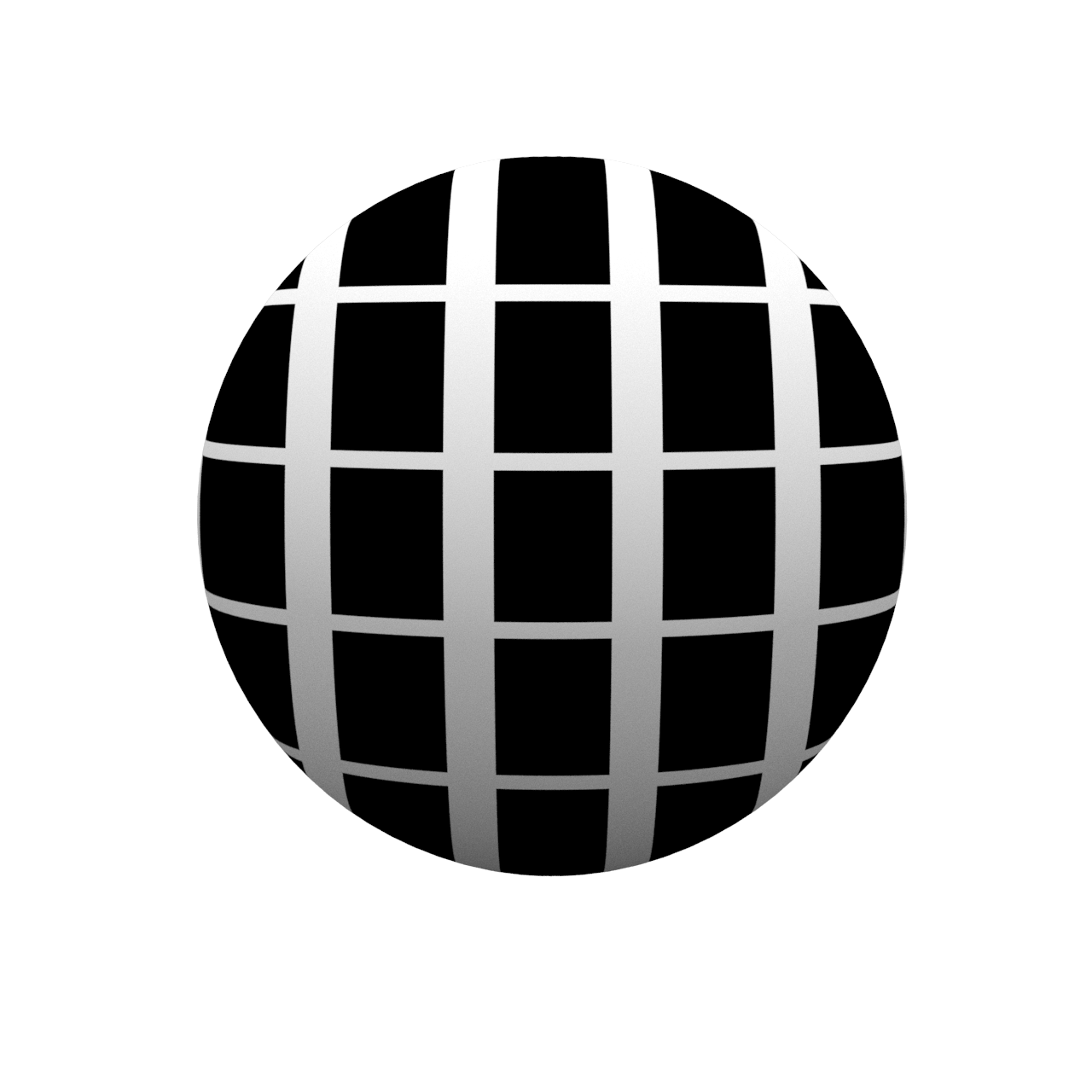

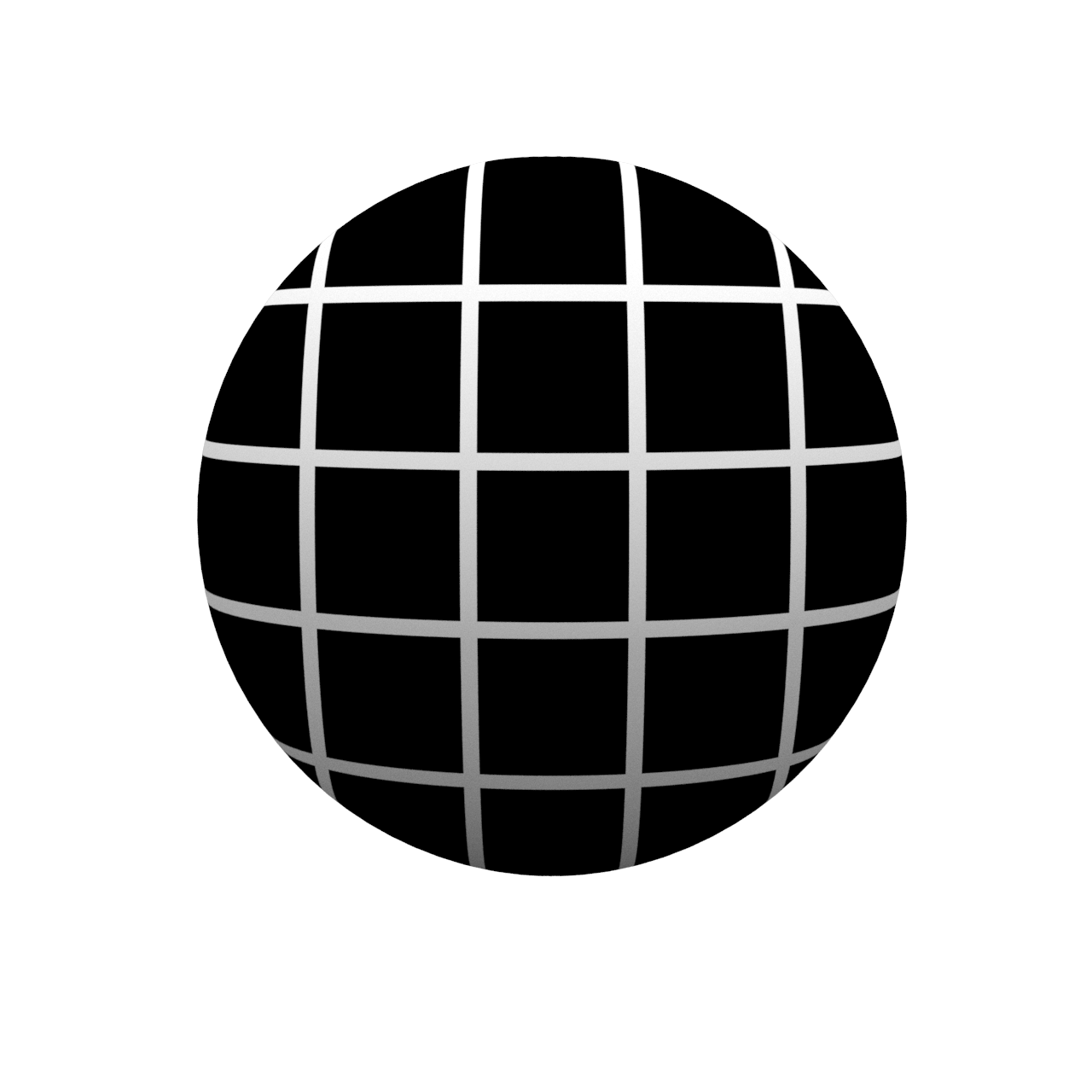

V Width – Controls the vertical line width. For more information, see the U Width and V Width example below.

Color Manipulation

Invert Texture – Inverts the RGB texture values.

Alpha from Intensity – Uses the texture RGB intensity/ luminance as alpha channel.

Color Gain – Corrects the color of the texture by multiplying the the RGB color values in the texture with the RGB color values specified here. A texture map can be assigned here.

Color Offset – Corrects the color of the texture by adding the RGB color values specified here to the RGB color values of the texture. A texture map can be assigned here.

Default Color – Specifies a default color used for polygons with no valid UVs. In case the map is not tiled, specifies a default color that is used outside the texture square.

Mode – Specifies the multiplication mode of the colors.

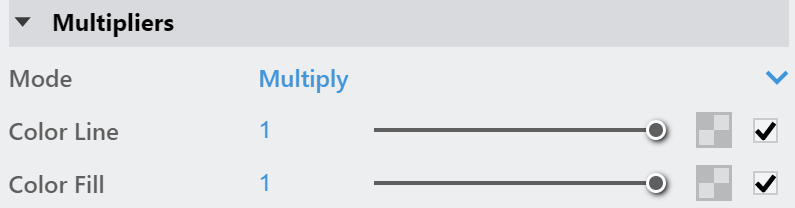

Multiply – The color used for blending is black.
Blend Amount– The color used for blending is the one specified in the color slot.

Color A – Specifies blends between a color and a texture, if specified.

Color B – Specifies blends between a color and a texture, if specified.

Type – Controls how the texture is positioned on the geometry.

2D (UV Channel) – The texture uses the object UV coordinates.
Environment – This mode is applicable if the map is connected to an Environment slot or a Dome light.
Mapping Source – The texture uses an external UV placement source.

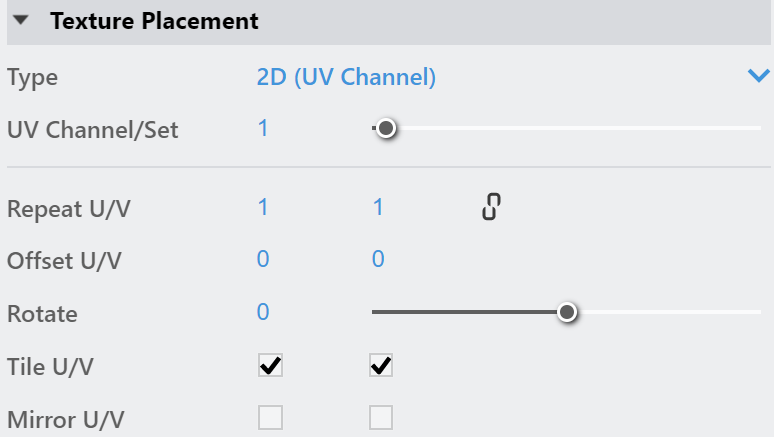

2D (UV Channel)

UV Channel/Set – Specifies the index of the mapping channel data to use. A value of 1 takes the first available channel.

Repeat U/V – Determines how many times the texture is repeated in the 0 to 1 UV square.

Lock U/V Repeat – Locks the U/V Repeat.

Offset U/V – Controls the texture offset in the U and V direction.

Rotate – Rotates the texture (in degrees).

Tile U/V – Tiles the texture in the U and V direction. If the option is disabled, the Default texture color is used outside the 0 to 1 UV square. Default color is found in Parameters > Color Manipulation.

Mirror U/V  – Mirrors the texture in the U and V direction separately. The option cuts the texture in the half flipping one side vertically or horizontally. This can be used to avoid seams in-between non-tileable repeated textures.

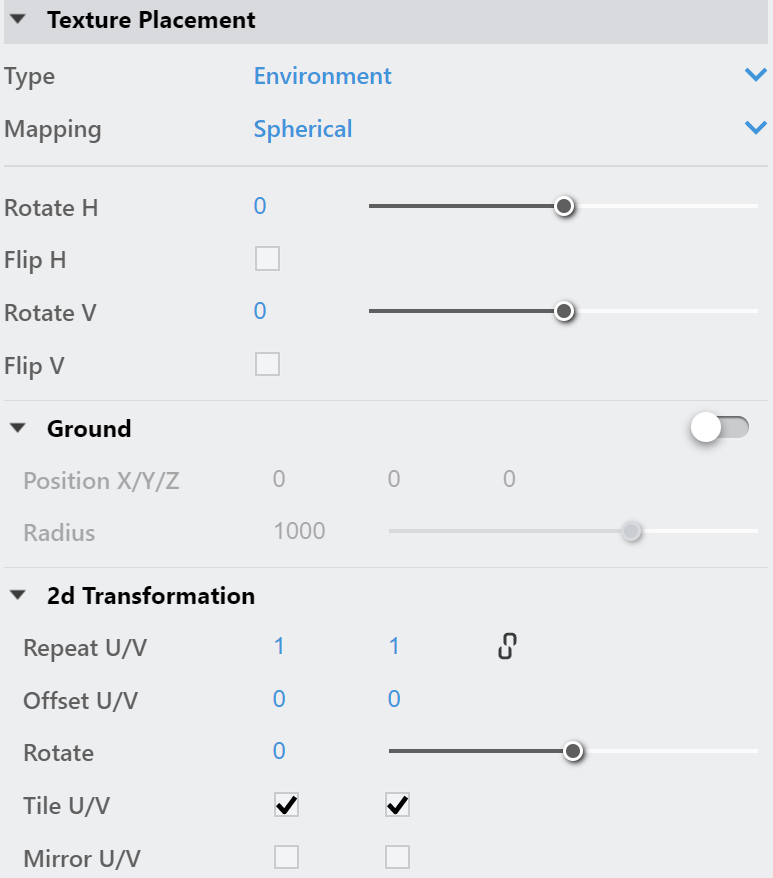

Environment

Mapping – Specifies the type and shape of the texture.

Angular
Cubic
Spherical
Mirror Ball
Screen

Rotate H – Rotates the environment sphere horizontally.

Flip H – Flips the environment sphere horizontally.

Rotate V – Rotates the environment sphere vertically.

Flip V – Flips the environment sphere vertically. This option is active only in Spherical Mapping.

Ground – Enables ground projection of the texture.

Position X/Y/Z – Offsets the ground projection along the X/Y/Z axis.

Radius – Specifies a projection radius. Can be used to control the scale of the projection.

2d Transformation – see 2D (UV channel) parameters.

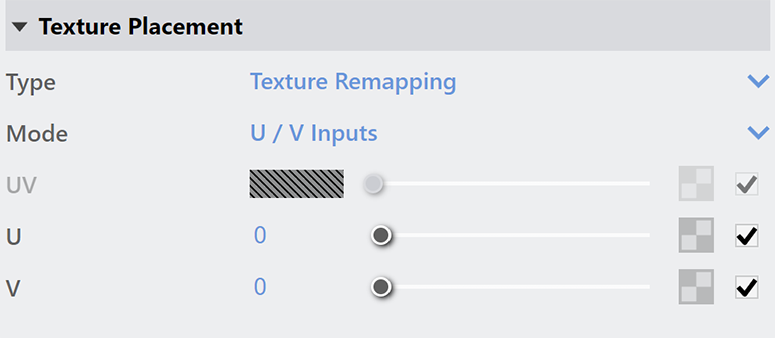

Texture Remapping

Mode – Determines whether a single or multiple textures should be used for U and V texture coordinates remapping.

UV – The Red input texture channel determines the U sampling coordinate. The Green input texture channel determines the V coordinate.

U – The value of this texture determines the U sampling coordinate.

V – The value of this texture determines the V sampling coordinate.

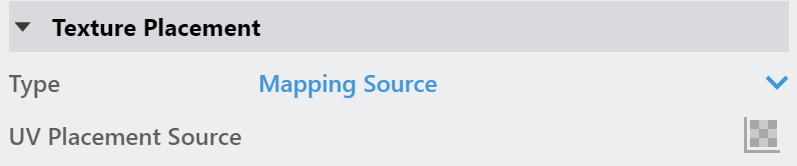

Mapping Source

UV Placement Source – External UV placement source to be used for the texture placement.

2D (UV Channel)

Environment

Texture Remapping

Mapping Source
