This page provides information about the Lighting Analysis Render Element in V-Ray for Rhino.
Overview
The Light Analysis Render Element provides a visual representation of the lighting intensity in the rendered frame. It maps Illuminance and Luminance information as color gradient or a grid of measured values onto the frame.
The Illuminance and Luminance channels are internally created during rendering.
During the rendering, the Lighting Analysis might display some approximation to the false-color image, but that is not the final result. After the rendering is finished, every parameter change made in the Asset Editor automatically updates the render result in the VFB.
V-Ray for Grasshopper offers a Lighting Analysis Element component. To see more information, see the V-Ray Element Lighting Analysis page.
UI Paths
||V-Ray Asset Editor|| > Render Elements (right-click) > Lighting Analysis
||V-Ray Asset Editor|| > Create Asset (left-click) > Render Elements > Lighting Analysis
Parameters
Quantity – Chooses which lighting information to be analyzed.
Illuminance (lx) – Uses the Illuminance of the rendered frame in lux.
Luminance (cd) – Uses the Luminance of the rendered frame in candelas.
Minimum Value – Specifies which values are mapped to blue.
Maximum Value – Specifies which values are mapped to red.
Scale – Specifies how values are mapped to colors onto the frame.
Linear – The colors are mapped in linear scale.
Logarithmic – The colors are mapped in logarithmic scale.
Display Mode – Specifies the analyzed data display mode.
False colors – Fills the frame with a gradient ranging from blue (low values) to red (high values). For the out of range values,it uses respectively black and white.
Grid overlay – Displays the values at distinct grid points over the frame. They use the same grading colors.
Draw Legend – When enabled, shows a legend of the false colors at the bottom of the render.
Examples: Lighting Analysis

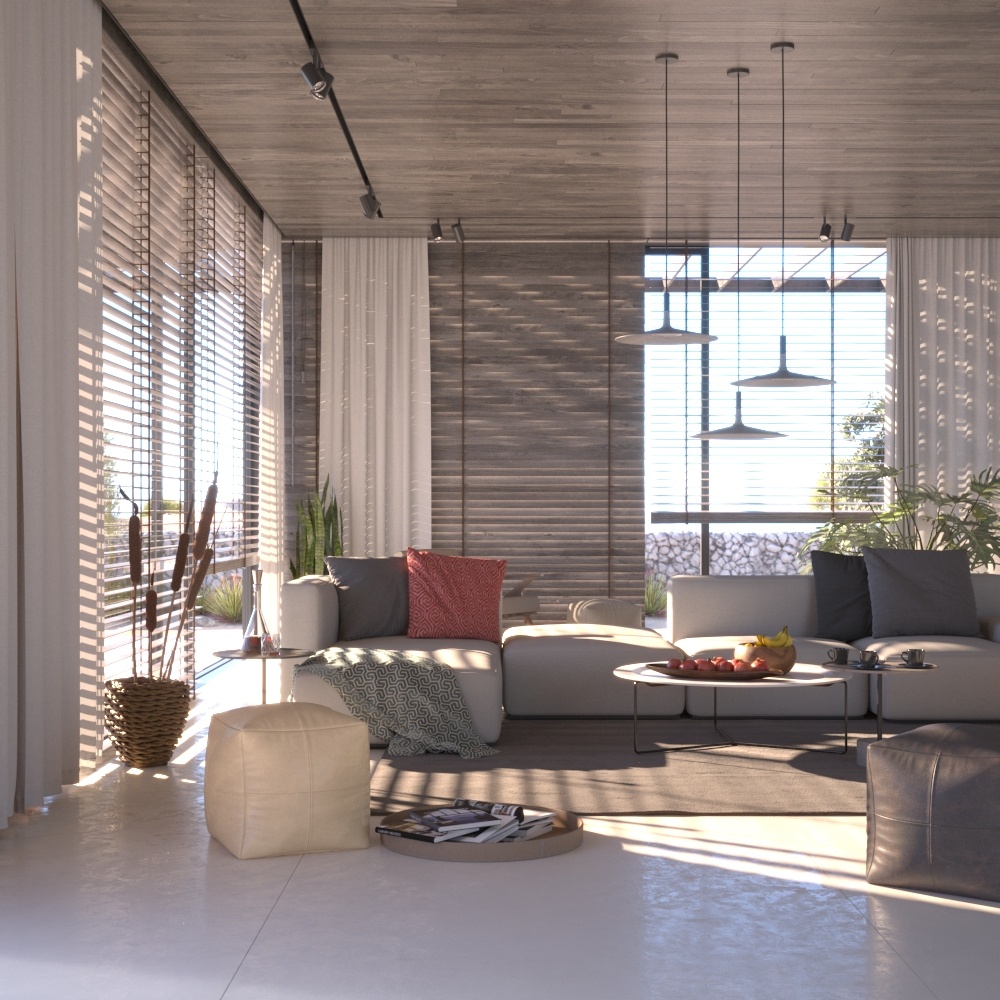

This example shows the False Colors and Grid Overlay display modes.
Light Analysis Render showing Illuminance with False Colors display

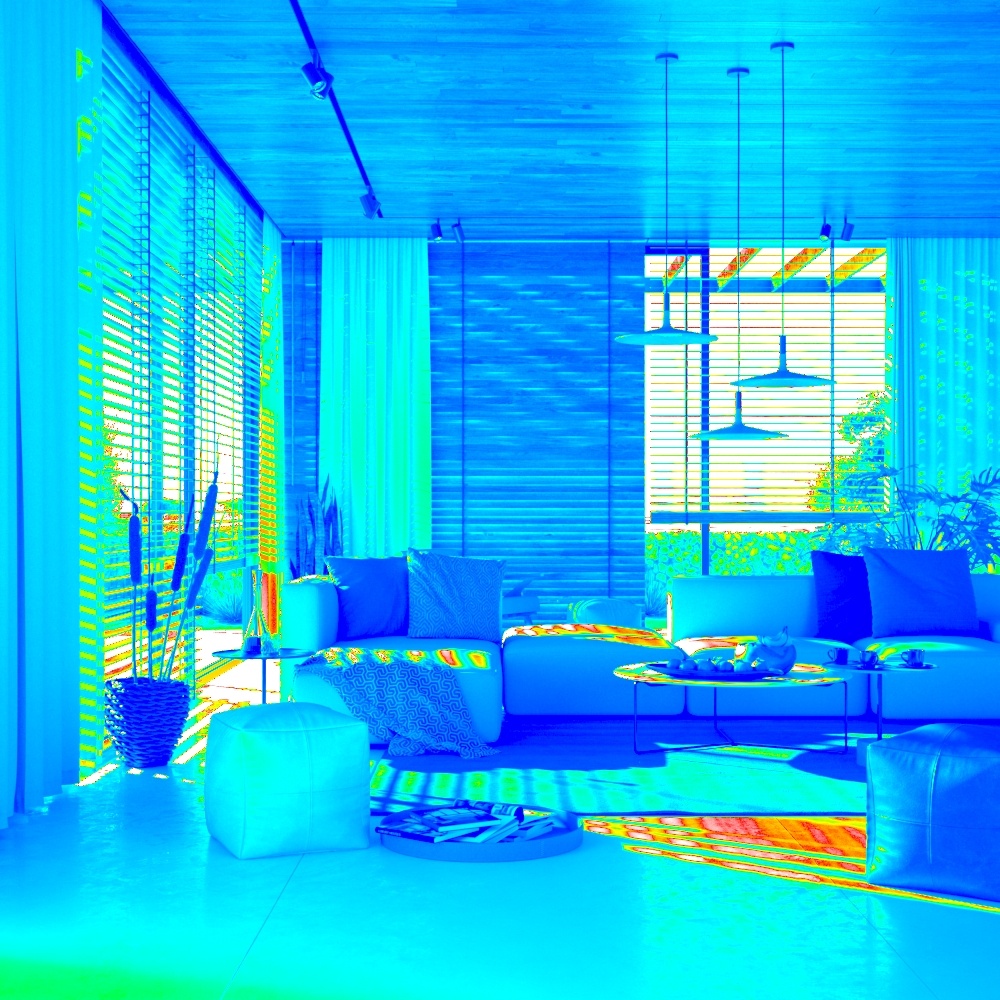

Light Analysis Render showing Luminance with False Colors display

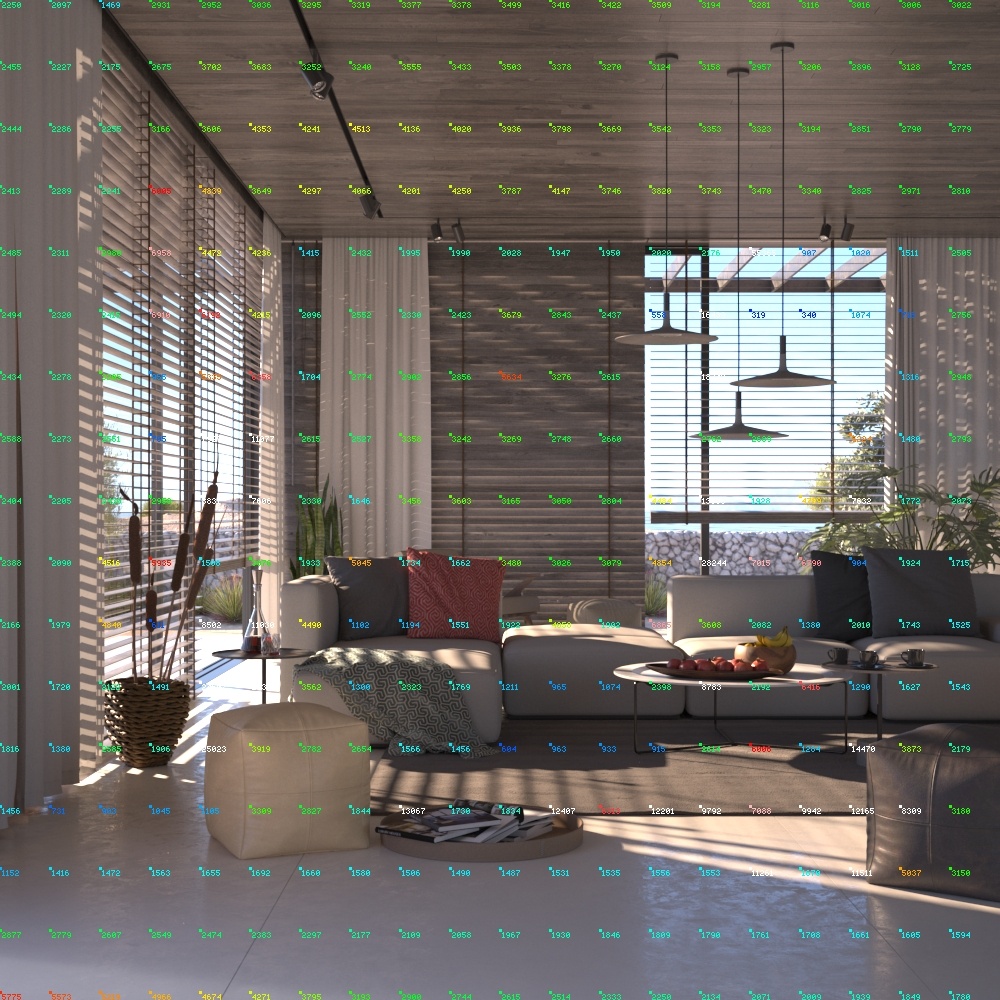

Light Analysis Render showing Illuminance with Grid Overlay display
Notes
- When using Progressive image sampler, the regularity of updates of the lighting analysis channel is controlled by the Update effects option in the Render rollout of the Settings menu.
- You can reset the Input Number Slider's value to its default value by right-clicking on the slider and selecting the Reset context menu option.
