This page provides information about the Raw Shadows render element in V-Ray for SketchUp.



Overview


Stores information about cast shadows calculated from the lighting in the scene. It is a reverse image in the sense that white areas indicate shadows while black areas indicate the surface is directly illuminated by a light source.

Raw Shadows
Beauty





UI Paths


||V-Ray Asset Editor|| > Render Elements (right-click) > Raw Shadows
||V-Ray Asset Editor|| > Create Asset (left-click) > Render ElementsRaw Shadows

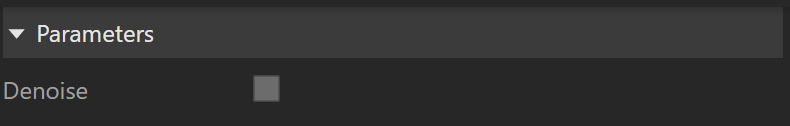

Parameters


Denoise – Specifies whether to denoise this render element.









Common Uses


The Raw Shadows Render Element is useful for changing the appearance of shadowed areas, after rending, inside a compositing or image editing application. In the example, the Raw Shadows are added (plus) to the Raw Light Render Element. See how the render looks before and after compositing.



Before
After





Compositing




Raw Shadows x Diffuse = Shadows
