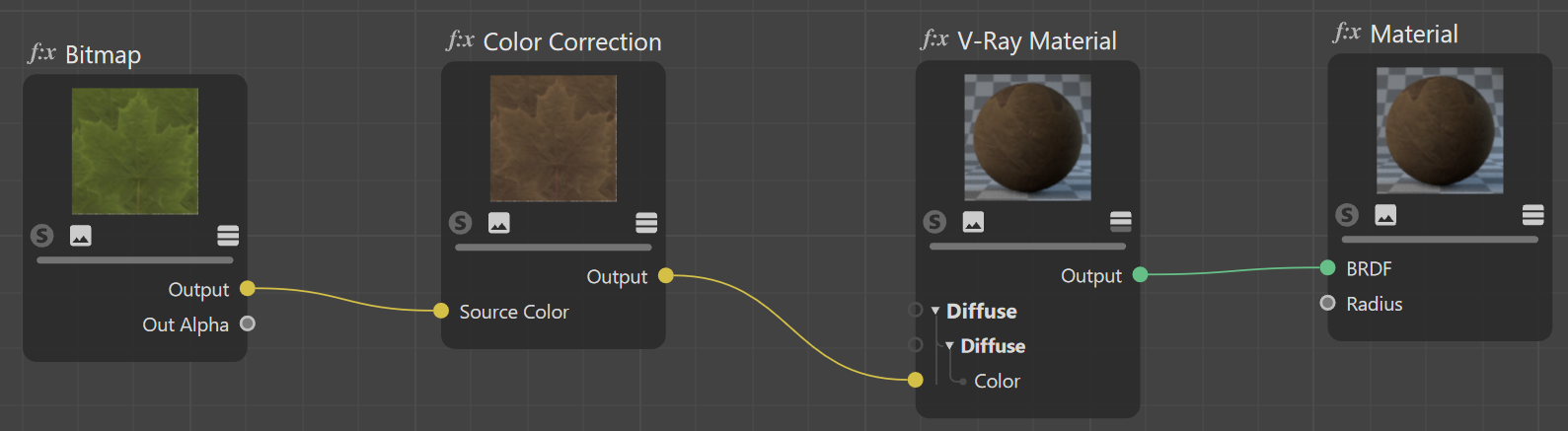

The Color Correction node enables the application of various color corrections to a texture map (Bitmap).
Column
width
5%
Column
width
38%45%
Image RemovedImage Added
Properties
...
Section
Column
width
57%50%
Source Color – Specifies a bitmap to be color corrected.
Column
width
5%
Column
width
38%45%
Channels
...
Section
Column
width
57%50%
Rewire Red/Green/Blue/Alpha – Replaces the current channel with the chosen one:
Red – Assigns the red channel. Green – Assigns the green channel. Blue – Assigns the blue channel. Alpha – Assigns the alpha channel. Redinv – Assigns the inverse value of the red channel. Greeninv – Assigns the inverse value of the green channel. Blueinv – Assigns the inverse value of the blue channel. Alphainv – Assigns the inverse value of the alpha channel. Monochrome – Sets the channel to be monochrome (grayscale). One – Assigns the value 1 (or the highest possible value) to the channel. For example, Rewire Red set to One gets the red channel a value of 255 (RGB, 0 to 255). Zero – Assigns the value 0 (or the lowest possible value) to the channel. For example, Rewire Red set to Zero gets the red channel a value of 0 (RGB, 0 to 255).
Column
width
5%
Column
width
38%45%
Color
...
Section
Column
width
57%50%
Hue Shift – Specifies a value for the adjustment of the current color hue.
Saturation – Specifies a value for the saturation or desaturation of colors. Negative values desaturate.
Hue Tint – Specifies a color that is used to tint the current colors.
Tint Strength – Adjusts the strength of the Hue Tint.
Column
width
5%
Column
width
38%45%
Lightness
...
Section
Column
width
57%50%
Lightness Mode– – Specifies the lightness mode that is used. You can choose between Standard and Advance modeAdvanced mode.
Panel
borderStyle
solid
title
Standard
Brightness– Adjusts the
overall brightness
correction of the
color multiplier.
Contrast
Contrast –Adjusts the correction of color contrast
of the image.
.
Panel
borderStyle
solid
title
Advanced
Exposure Mode – Specifies the exposure method
: Gain, F-Stop or Printer Lights.
.
Gain – In this mode, the Brightness value is a simple multiplier for the input colors. F-Stops – In this mode, the Brightness value multiplies the color intensity with photographic F-stop exposure. Increasing the Brightness by one doubles the brightness, the same as increasing the Gain by 2. For example, this mode's input value of 1.0 and Brightness of 0.0 equals 1.0 (i.e., no brightness correction). Then, Brightness 1.0 corrects the input of 1.0 to equal 2, Brightness 2.0 corrects the input of 1.0 to equal 4.0, Brightness 3.0 corrects the input of 1.0 to equal 8.0, and so on. The input is multiplied by 2 to the power of the brightness value in this mode (<input> * 2 ^ <F-Stop Brightness>). Printer Lights – When set with the same value as the Printer Lights Per Stop parameter is set, it doubles the luminance.
Brightness – Affects the brightness of the input colors based on the Exposure Mode
Brightness – Adjusts the correction of the color multiplier
.
Gamma / Contrast –
Adjusts the color contrast or the gammaAdjusts the correction of the contrast base
Determines a float value for the gamma and contrast multipliers. Increasing gamma decreases the contrast.
Base
–
– The base value for Gamma correction. Pixel values equal to the Base are not affected. This can be useful when gamma-correcting a texture without changing certain luminance levels.
Offset– Adds
an
a uniform offset to all pixel values.
Use Red/ Green/ Blue – When enabled, uses the corresponding
channel
component for the advanced RGB parameters.
RGBBrightness– Adjusts the brightness of the RGB channels.
RGBContrast– Same as Gamma/Contrast, but for the individual R/G/B channels.
RGBBase– Same as Base, but controls which pixel values in the individual R/G/B channels are unaffected by the RGB Contrast.
RGBOffset– Same as Offset, but adds a uniform offset to the individual R/G/B channels.
Printer Lights
per
Per Stop – When Printer Lights Exposure Modeis
enabled
used,
it specifies the number of
this value specifies how many printer lights
equivalent
are equal to one f-stop
. This is the required value to double or halve the exposure
