This page provides information on the V-Ray Light Lister window.



Overview

The V-Ray Light Lister window provides an easy way to modify common attributes of all of the lights in the scene.



UI Paths:

UI Path: Light Lister icon
Section
UI Expand
title
Column
width10%



Column
width35%

||V-Ray Shelf|| >

V-Ray Light Lister



Image Added
Column
width10%



Column
width30%

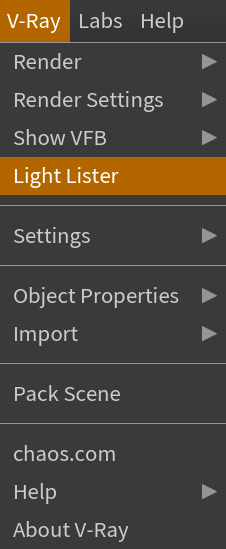

V-Ray menu > Light Lister



Image Added

Column
width20%





Image Removed

UI Text Box
typetip

V-Ray Light Lister window position can be reset from V-Ray menu > Settings > UI > Reset Light Lister Window.



General Light Lister Parameters

Section
Column
width50%

Refresh – Updates the listed lights if lights have been added or removed from the scene.

Isolate – When enabled, isolates a single light for IPR. The isolated light is on in the scene, while all other lights are turned off. See the Example below.

Enable – Enables the light in the scene. See the Example below.

Color – Specifies a color for the light.

Intensity – Specifies the intensity of the light.

Invisible – When enabled, the shape of the light source is invisible in the rendered image.

Shadows – When enabled, the light casts shadows. Disable this option to turn off shadows for the light.

Affect Diffuse – When enabled, the light affects the diffuse properties of the material.

Affect Specular – When enabled, the light affects the specular of the materials.

Affect Reflection – When enabled, the light appears in reflections of the materials.

Column
width5%



Column
width45%

Image RemovedImage Added







Anchor
example
example
Examples



Image AddedImage Removed

Isolate option

Image RemovedImage Added

Enable option
