This page contains information about the V-Ray Cellular Texture.

Overview

UI Paths

Node

The V-Ray TexCellular node provides inputs for controlling various texture properties. They correspond to parameters in the section below.

Settings

Type – Specifies which type to use for the Cellular texture. The choices are Dots, Chips, Cells, Chess Cells, or Plasma.

Background Color – Controls the color of the background of the Cellular procedural texture.

Center Color – Controls the color of the center of the cells.

Edge Color – Controls the color of the edges of the cells in the Cellular procedural texture.

Size – Controls the size of the Cellular procedural texture. For more details, please see the Size examples below.

Spread – Controls the spread of the procedural Cellular texture. For more details, please see the Spread examples below.

Density – Controls the Density of the Cellular texture. For more details, please see the Density examples below.

Low – Controls the low threshold (background color). For more details, please see the Low examples below.

Middle – Controls the middle threshold (edge color). For more details, please see the Middle examples below.

High – Controls the high threshold (center color). For more details, please see the High examples below.

Fractal – Enables the addition of fractal generation. Only available with Dots and Chips Types.

Fractal Iterations – Controls the number of fractal iterations. For more details, please see the Fractal Iterations examples below.

Fractal Roughness – Controls the roughness of the fractal. A value of 0.0 is very rough and a value of 1.0 is very smooth, which negates the fractal. For more details, please see the Fractal Roughness examples below.

Color Tweaks

Mult – Specifies a strength multiplier for the texture color.

Offset – Color corrects the texture by adding the the RGB color values specified here to the RGB color values in the texture.

Invert – When enabled, inverts the resulting texture color.

Alpha Tweaks

Source – Specifies where the alpha channel is drawn from.

Alpha – Alpha channel is drawn from the texture.
Color Intensity / Luminance – Alpha is generated from pixel intensity.
Opaque – Alpha channel is fully opaque.

Mult – Specifies a multiplier for the texture alpha.

Offset – Specifies an additional offset for the texture alpha.

Invert – When enabled and Invert from Color Tweaks is also enabled, the resulting texture alpha will be inverted as well.

Placement

Placement Type – Specifies the way the valid portion of the texture is applied.

Full – Uses the full valid portion of the texture.
Crop – Allows the user to specify a section of the texture using the parameters below.
Place – Allows the user to specify a section of the texture and how to place it using the parameters below.

U – Specifies the U coordinate of the valid texture sector.

V – Sppecifies the V coordinate of the valid texture sector.

W – Specifies the width of the valid texture sector.

H – Specifies the height of the valid texture sector.

Jitter – Controls the amount of random placement variation.

Tile U – Enables horizontal tiling.

Tile V – Enables vertical tiling.

UV Noise

Enabled – Enables noise for the texture.

Amount – Specifies the amount of noise to add to the texture.

Levels – Specifies the amount of noise iterations.

Size – Controls the scale of the noise.

Animated – Enables the noise to be animated.

Phase – Controls the noise phase.

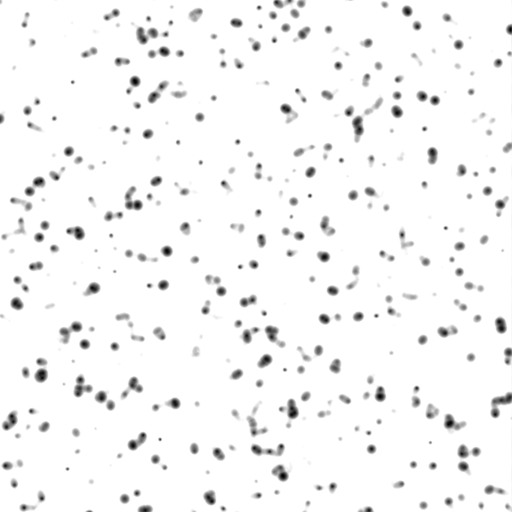

Example: Size

Example: Spread

Example: Density

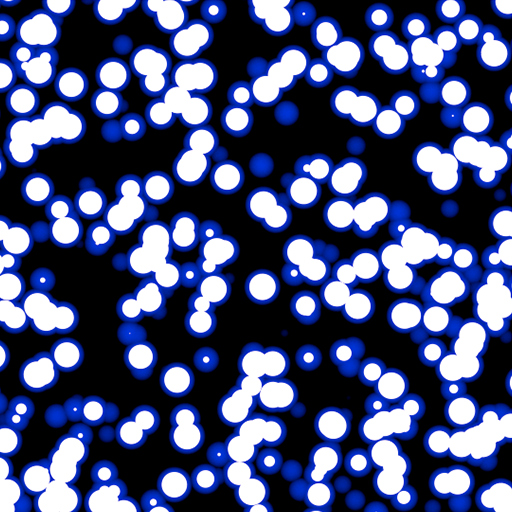

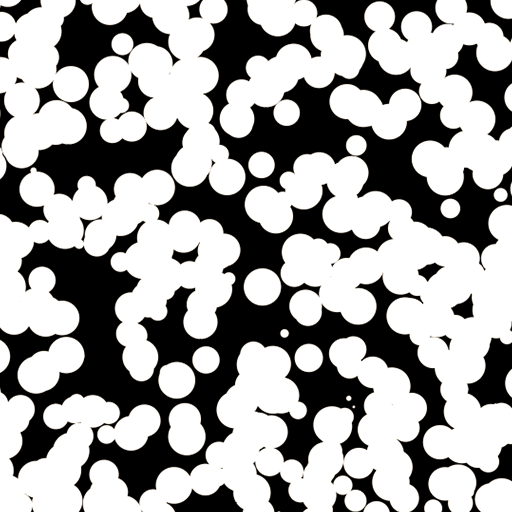

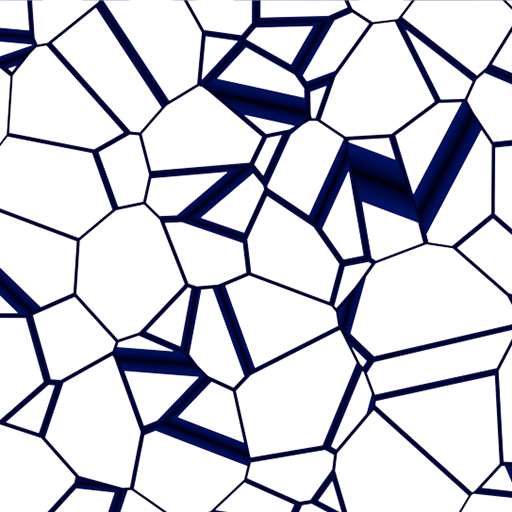

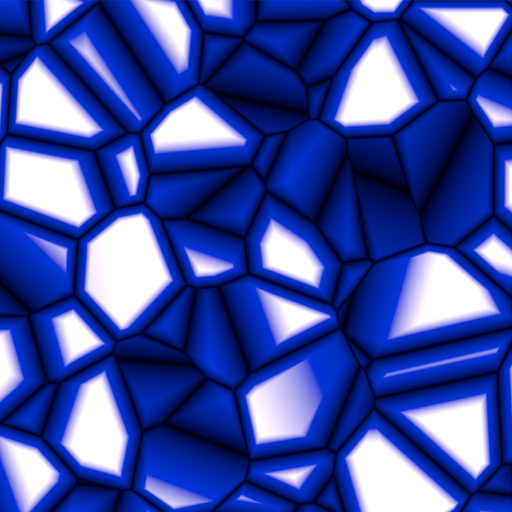

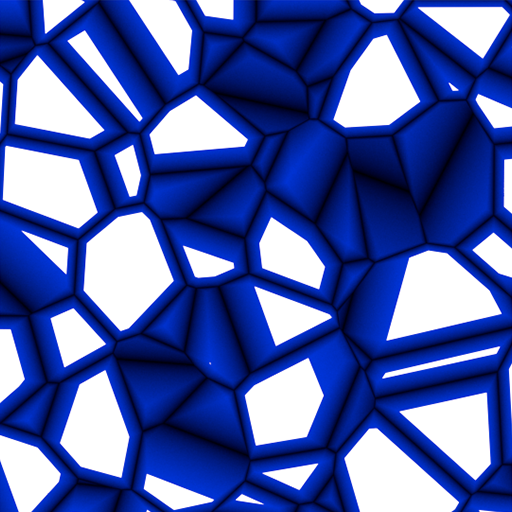

Example: Low

The Dots examples below use Size: 0.25, Spread: 0.5, and Density: 1.5. The Edge Color is blue for visual clarity.


The Chips examples below use Size: 1.0, Spread: 0.75, and Density: 3.0. The Edge Color is blue for visual clarity.

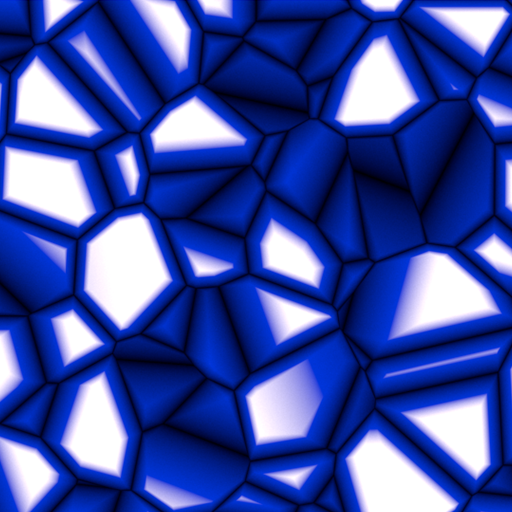

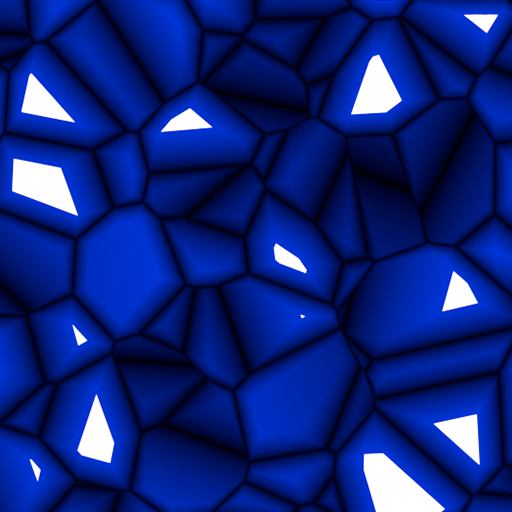

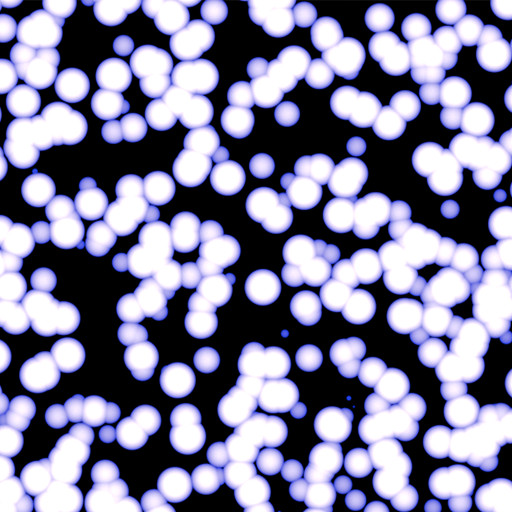

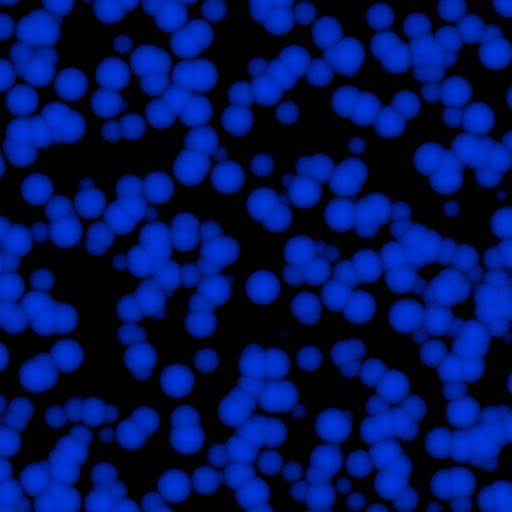

Example: Middle

The Dots examples below use Size: 0.25, Spread: 0.5, and Density: 1.5. The Edge Color is blue for visual clarity.

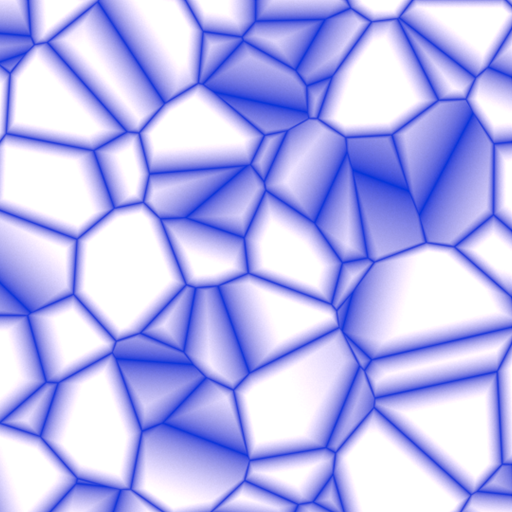

The Chips examples below use Size: 1.0, Spread: 0.75, and Density: 3.0. The Edge Color is blue for visual clarity.

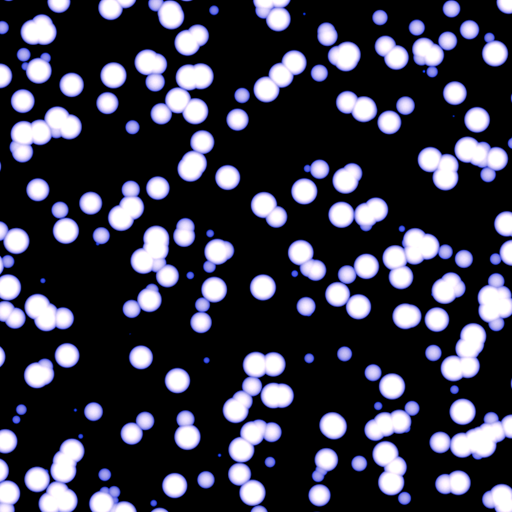

Example: High

The Dots examples below use Size: 0.25, Spread: 0.5, and Density: 1.5. The Edge Color is blue for visual clarity.


The Chips examples below use Size: 1.0, Spread: 0.75, and Density: 3.0. The Edge Color is blue for visual clarity.

Example: Fractal Iterations

The Dots examples below use Size: 0.25, Spread: 0.5, and Density: 1.5.


The Chips examples below use Size: 1.0, Spread: 0.75, and Density: 3.0.

Example: Fractal Roughness

The Dots examples below use Size: 0.25, Spread: 0.5, Density: 1.5, and Fractal Iterations: 3.0.


The Chips examples below use Size: 1.0, Spread: 0.75, Density: 3.0, and Fractal Iterations: 3.0.

Color Tweaks

Mult – Specifies a strength multiplier for the texture color.

Offset – Color corrects the texture by adding the the RGB color values specified here to the RGB color values in the texture.

Invert – When enabled, inverts the resulting texture color.

Alpha Tweaks

Source –

Mult – Specifies a multiplier for the texture alpha.

Offset – Specifies an additional offset for the texture alpha.

Invert – When enabled and Invert from Color Tweaks is also enabled, the resulting texture alpha will be inverted as well.

Placement

Placement Type – Specifies the way the valid portion of the texture is applied.

Full – Uses the full valid portion of the texture.
Crop – Allows the user to specify a section of the texture using the parameters below.
Place – Allows the user to specify a section of the texture and how to place it using the parameters below.

U – Specifies the U coordinate of the valid texture sector.

V – Sppecifies the V coordinate of the valid texture sector.

W – Specifies the width of the valid texture sector.

H – Specifies the height of the valid texture sector.

Tile U – Enables horizontal tiling.

Tile V – Enables vertical tiling.

UV Noise

Enabled – Enables noise for the texture.

Amount – Specifies the amount of noise to add to the texture.

Levels – Specifies the amount of noise iterations.

Size – Controls the scale of the noise.

Animated – Enables the noise to be animated.

Phase – Controls the noise phase.
