Mesh Light

The Mesh Light can create light sources that have volume and shape without the need to use self-illuminated objects and global illumination.

If the Mesh Light is close to other surfaces in the scene, it is best to use it with GI enabled so V-Ray can use combined direct and GI sampling of the mesh light. Without GI, the light might produce noisy results for surfaces that are very close to it.

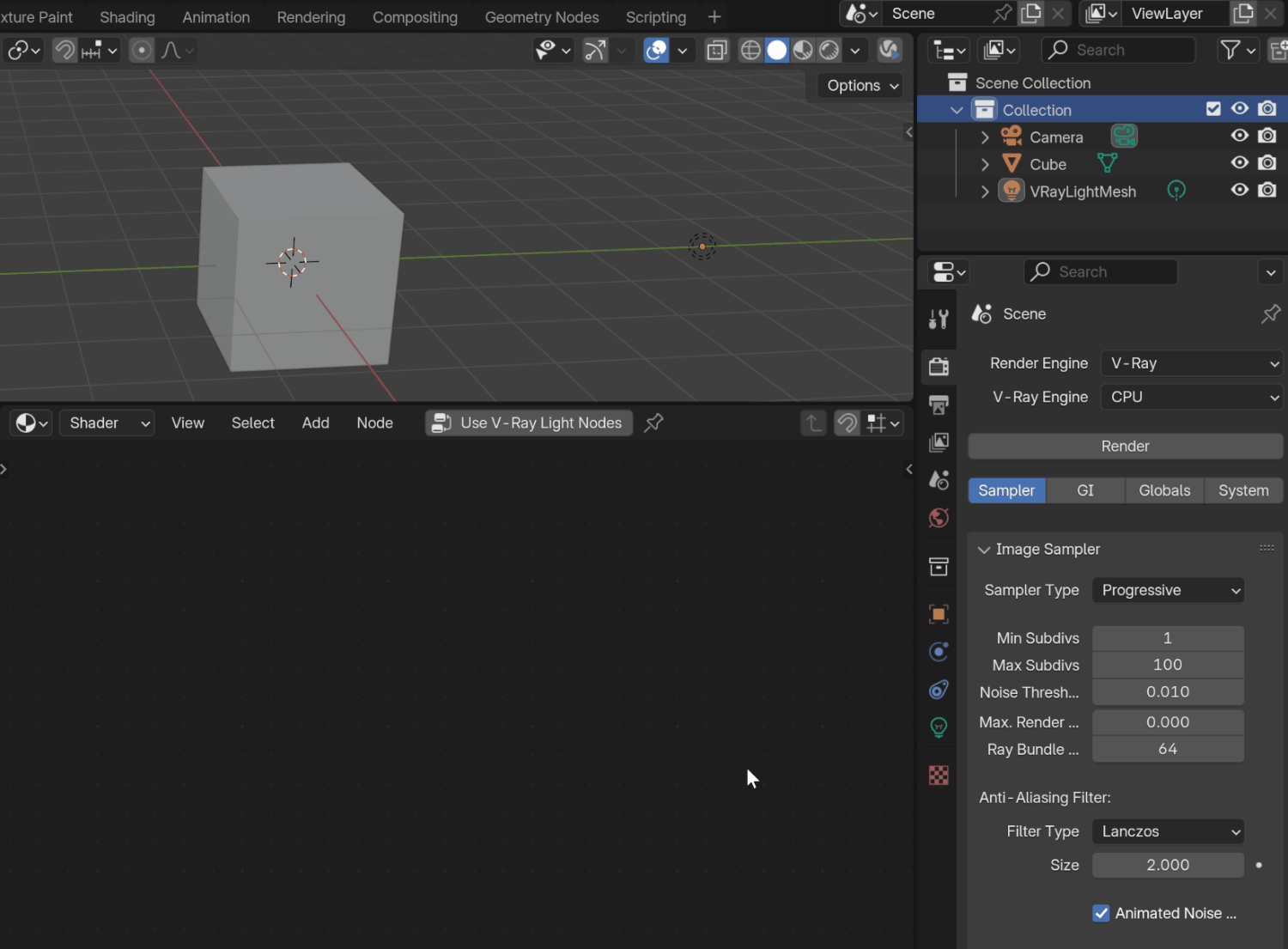

Certain parameters are only available as node inputs for the Light Mesh. For optimal editing, open the light in the V-Ray Node Editor. Follow these steps to see all the parameter locations for this node:

Click on the GIF to view it in full-size

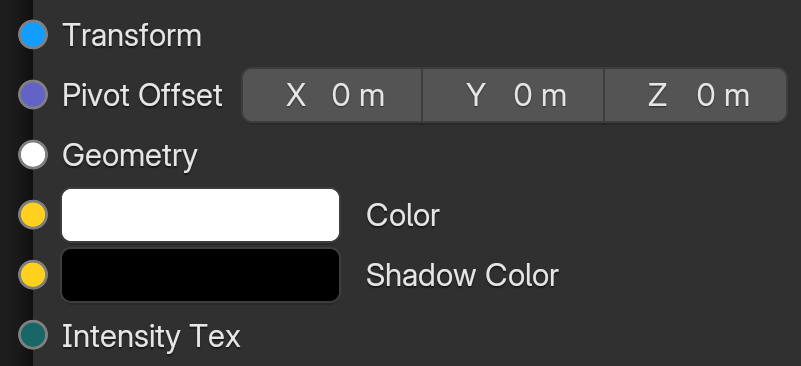

This section describes the input sockets of the node. Some sockets have dedicated parameters, which are further described below, and some sockets are just inputs.

Transform – Allows a V-Ray Matrix node to be connected to determine the rotation and scale of the light.

Pivot Offset – Allows a vector-outputting node to be connected to control the pivot of the light. Alternatively, they can be set manually.

Geometry – Allows objects (using Selector nodes) to be connected to the Mesh light objects list in the V-Ray Node Editor.

Color (input socket) – Overrides the color of the light, regardless if Color Mode is set to Color or Temperature.

Shadow Color (input socket) – Overrides the Shadow Color and allows a texture to be connected to control that property.

Intensity Tex (input socket) – Allows an integer-outputting node to be connected to control the Intensity.

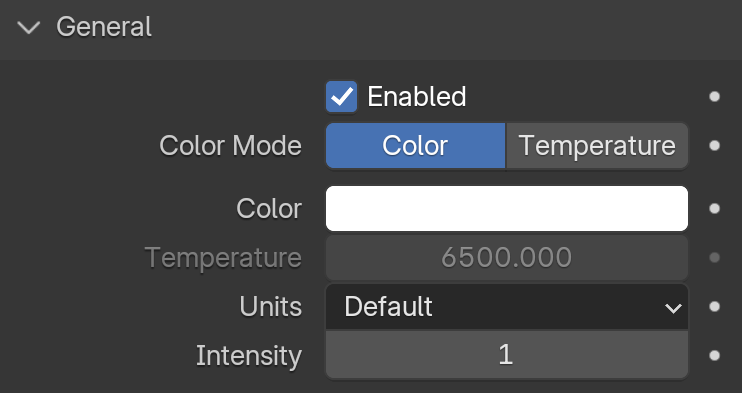

Enabled – Determines whether or not the Mesh Light emits light in the scene.

Color Mode – Determines how the color of the light is controlled, either Color or Temperature.

Color – Controls the color of the light when Color Mode is set to Color. When using photometric units, this color is normalized so that only the color hue is used, and the light intensity is determined by the Intensity parameter.

Temperature – When the Color Mode is set to Temperature, this parameter controls the color of the light by degrees Kelvin.

Units – Using the correct units is essential when you are working with the V-Ray Physical Camera. Note that when changing these units, the Intensity multiplier value is not converted to match the lighting and uses the same amount for all different units. The possible values are:

Default – The color and multiplier directly determine the visible color of the light without any conversion. The light surface appears with the given color in the final image when seen directly by the camera (assuming there is no color mapping involved).
Lumens – Total emitted visible light power measured in lumens. When this setting is used, the intensity of the light does not depend on its size. A typical 100W electric bulb emits about 1500 lumens of light.
Lm/m/m/sr – Visible light surface power measured in lumens per square meter per steradian. When this setting is used, the intensity of the light depends on its size.
Watts – Total emitted visible light power measured in watts. When using this setting, the intensity of the light does not depend on its size. Keep in mind that this is not the same as the electric power consumed by the light source. A typical 100W light bulb only emits between 2 and 3 watts as visible light.
W/m/m/sr – Visible light surface power measured in watts per square meter per steradian. When this setting is used, the intensity of the light depends on its size.

Intensity – A multiplier for the light Color; this is also the light intensity in the units chosen by the Units parameter.

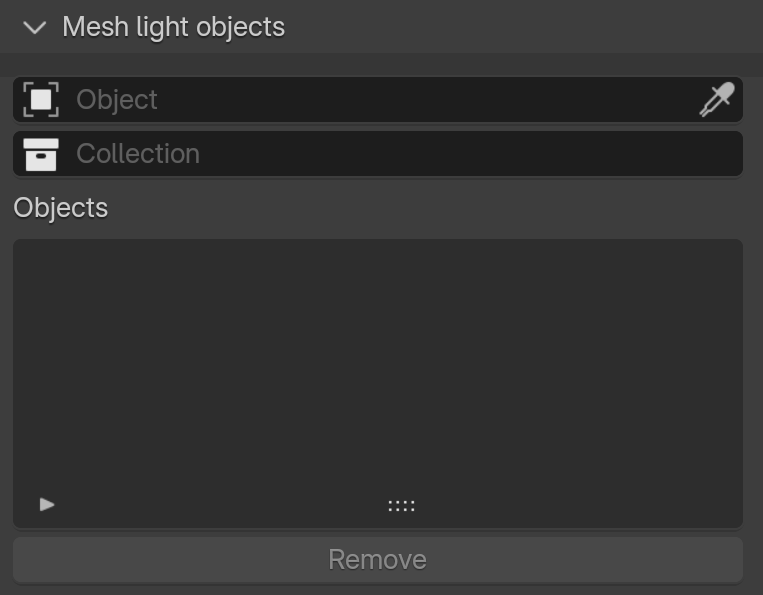

This rollout allows you to select a single Object or a Collection of objects and add them to the Objects list to be included in the Mesh Light. Use the eyedropper tool or drag and drop items from the scene into the field. Use the Remove button to remove selected items from the list.

Objects – A list of objects that the Mesh light is applied to.

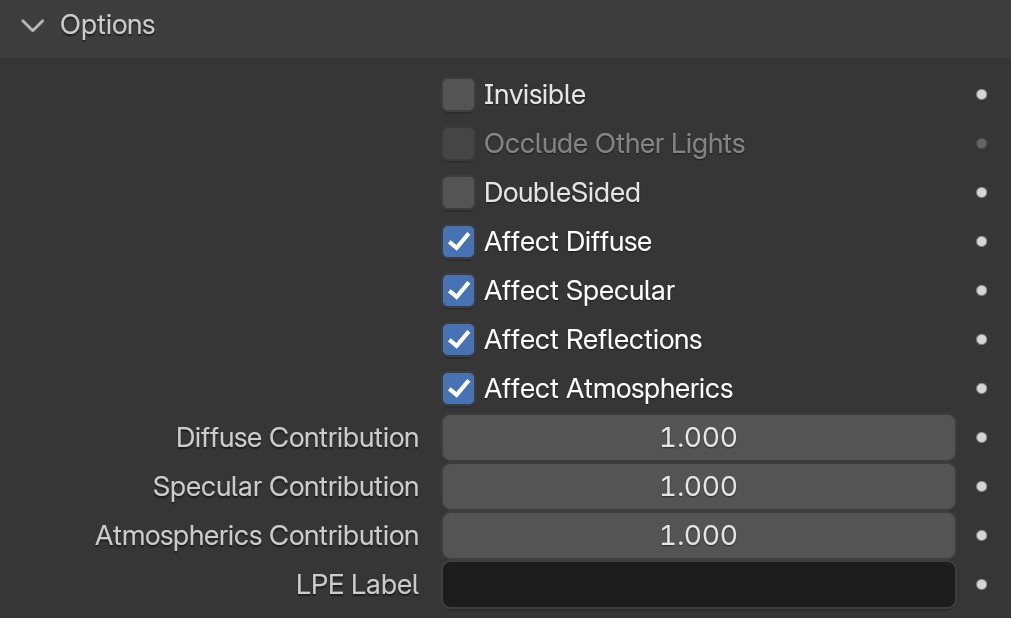

Invisible – Controls whether the shape of the V-Ray Mesh Light source is visible in the render result. When this option is turned off, the source is rendered in the current light color. Otherwise, it is not visible in the scene. Note that this option only affects the visibility of the light when seen directly by the camera or through refractions. The visibility of the light with respect to reflections is controlled by the Affect specular and Affect Reflections options.

Occlude Other Lights – Controls the behavior of the light when Invisible is enabled in relation to other light sources. When enabled, the light blocks the lighting from other lights as if it's visible. Also, in reflections, the light behaves as it's visible and occludes other lights. When disabled, the light is transparent for other lights and does not occlude them. This option doesn't affect visible lights (as they always occlude other lights) and dome lights (which are always additive).

DoubleSided – Controls whether light is emitted from both sides of each face.

Affect Diffuse – Determines whether the light affects the diffuse properties of the materials.

Affect Specular – Determines whether the light affects the specular properties of the materials. This means glossy reflections.

Affect Reflections – Determines whether the light appears in reflections of materials. This means both perfect and glossy reflections.

Affect Atmospherics – When enabled, the light influences the atmospheric effects in the scene.

Diffuse Contribution – A multiplier for the effect of the light on the diffuse.

Specular Contribution – A multiplier for the effect of the light on the specular.

Atmospherics Contribution –  Determines the amount of influence the light has on the atmospheric effects, such as Environment Fog or V-Ray Volume Grid.

Ignore Lights Normals – When this option is disabled, more light is emitted in the direction of the source surface normal.

LPE Label – Allows a label to be assigned, which can be used to reference the light in a Light Path Expression. This is especially useful when working with the Light Select render element to evaluate custom light contribution in the scene.

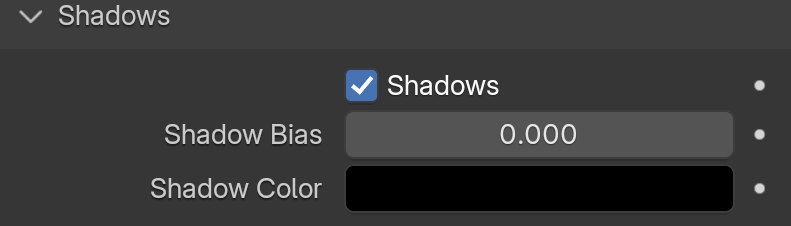

Shadows – When enabled (the default), the light casts shadows. Turn this option off to disable shadow casting for the current light.

Shadow Bias – Moves the shadow toward or away from the shadow-casting object. Higher values move the shadow toward the object, while lower values move it away. If this value is too extreme, shadows can "leak" through places they shouldn't or "detach" from an object. Other effects from extreme values include Moire patterns, out-of-place dark areas on surfaces, and shadows not appearing at all in the render.

Shadow Color – Controls the color of shadows for this light. Note that anything different from black is not physically correct. This option is not active when using the V-Ray GPU engine.

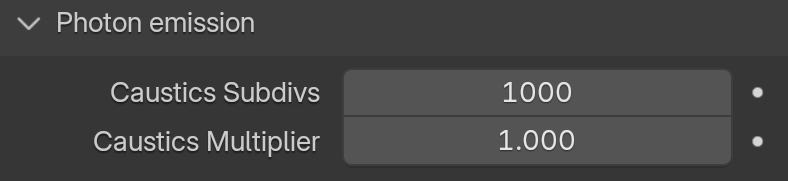

Caustics Subdivs – Only used when calculating Caustics. Lower values mean more noisy results but render faster. Higher values produce smoother results but take more time.

Caustics Multiplier – This value is a multiplier for the generated caustics by the selected object. Note that this multiplier is cumulative - it does not override the multiplier in the Caustics settings.

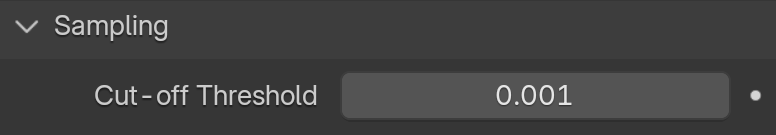

Cut-off Threshold – Specifies a threshold for the light intensity, below which the light is not computed. This can be useful in scenes with many lights, where you want to limit the effect of the lights to some distance around them. Larger values cut away more of the light; lower values make the light range larger. When this value is 0.0, the light is calculated for all surfaces.

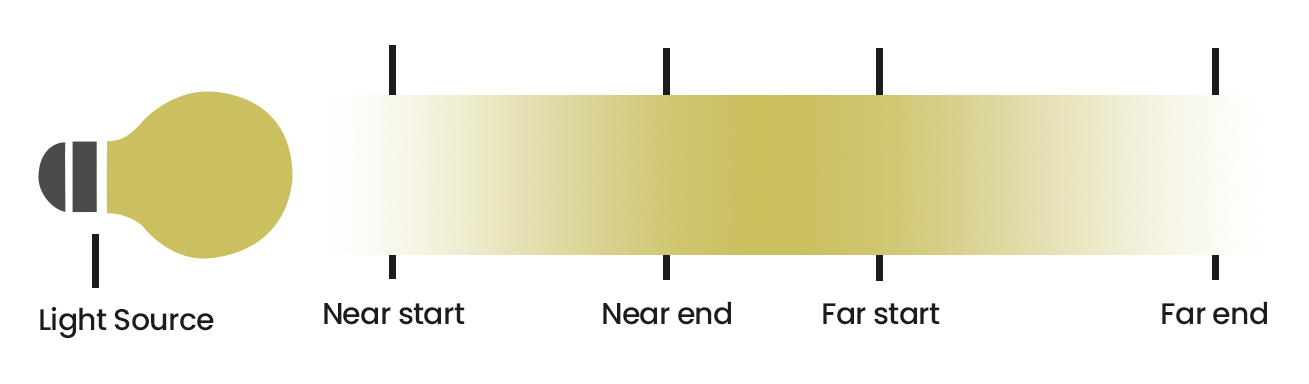

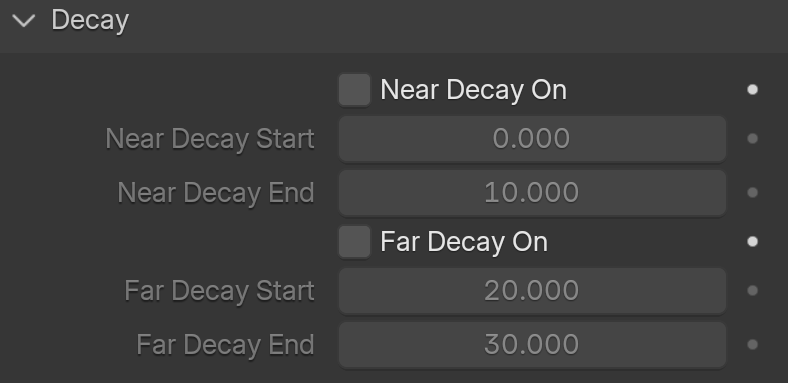

Near Decay On – Toggles near decay on and off.

Near Decay Start – Determines where the fade in starts. Anything before this point is rendered dark.

Near Decay End – Determines where the fade in ends. After this threshold, the light is at its full value.

Far Decay On – Toggles far decay on and off.

Far Decay Start – Determines where the fade off starts.

Far Decay End – Determines where the light reaches a value of 0, i.e. completely fades off.

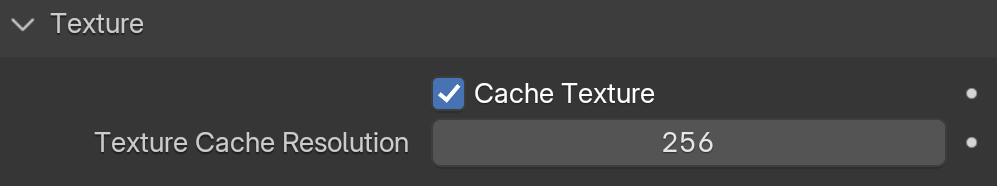

Cache Texture – When enabled, V-Ray samples the texture and produces a lower resolution one to be used for the lighting. This greatly speeds up the rendering of mesh lights with textures.

Texture Cache Resolution – Specifies the resolution at which the texture is cached.
