This page provides information about the Total Light render element in V-Ray for Rhino.
Overview

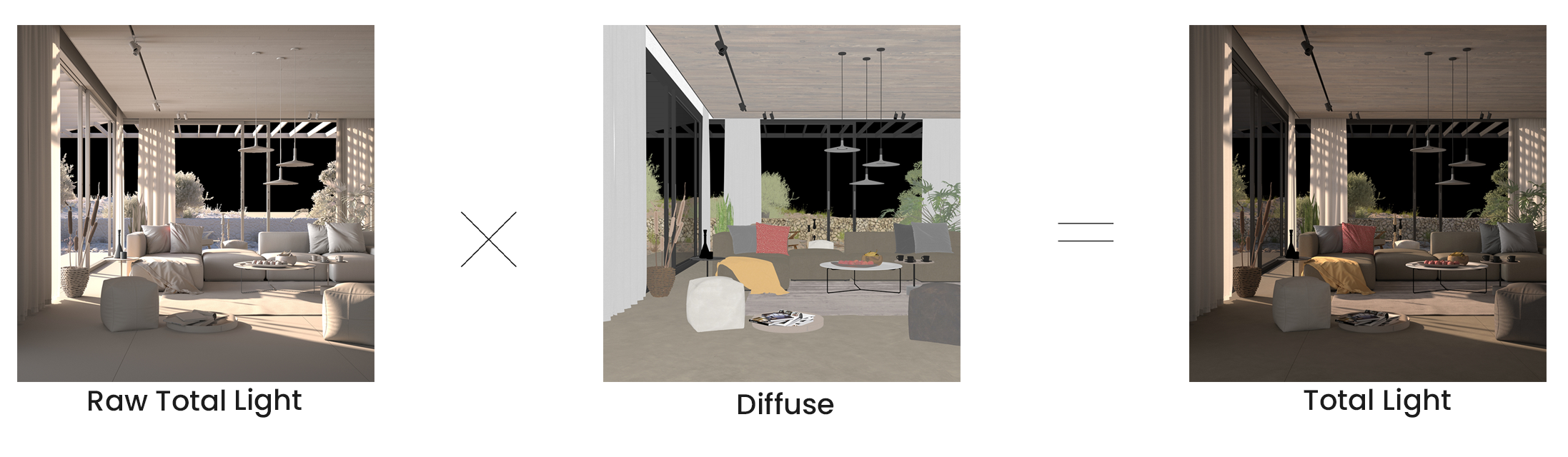

Stores both direct and indirect lighting information including the diffuse material component. It is a result of adding the Lighting and Global Illumination render elements.

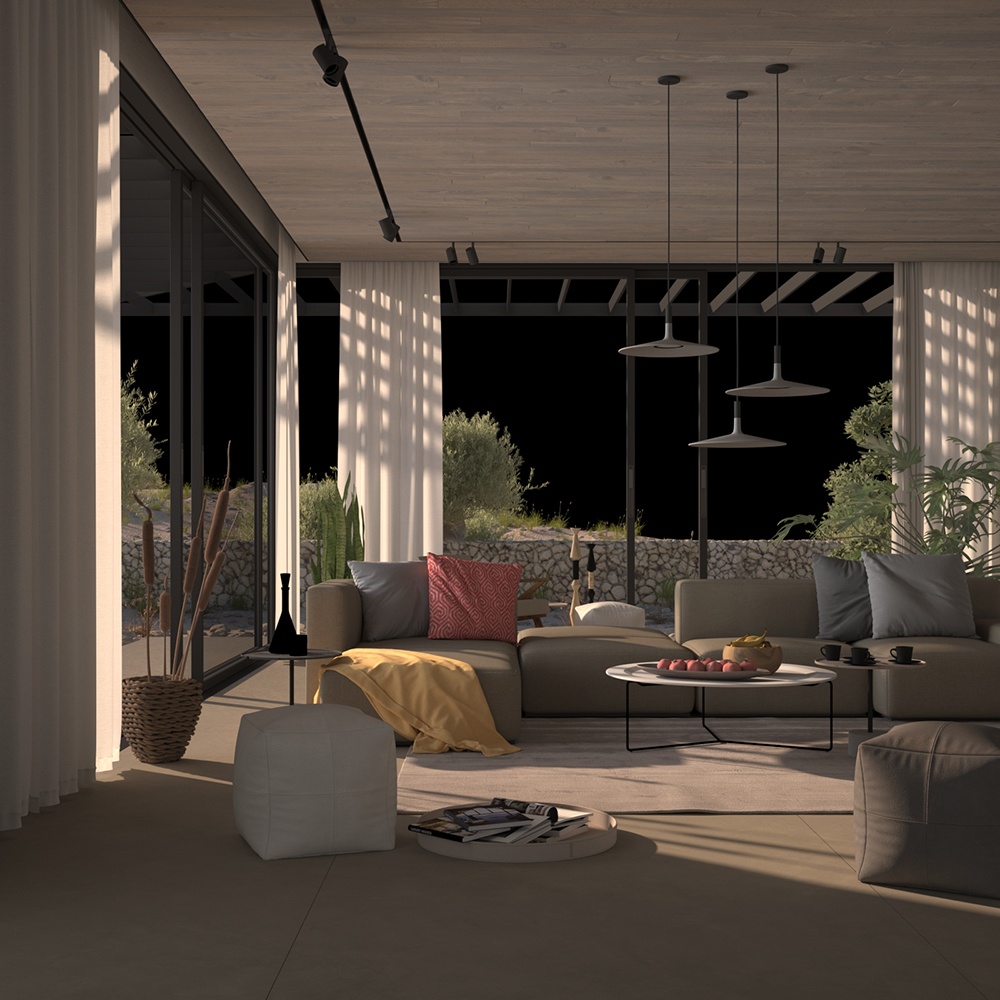

Total Light

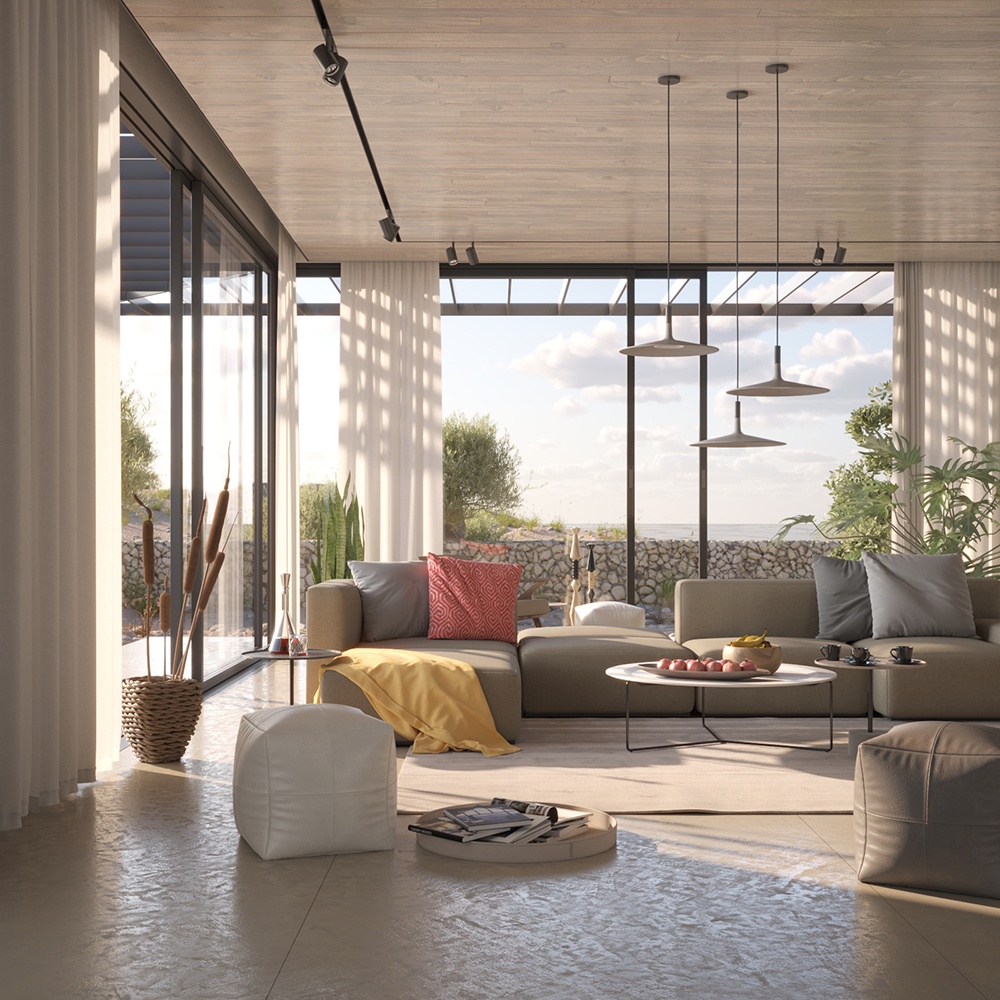

Beauty
UI Paths
||V-Ray Asset Editor|| > Render Elements (right-click) > Total Light
||V-Ray Asset Editor|| > Create Asset (left-click) > Render Elements > Total Light

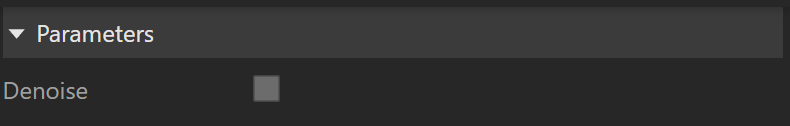

Parameters
Denoise – Specifies whether to denoise this render element.
Common Uses
The Total Light Render Element is useful for brightening or dimming all lighting during compositing. In the example, the lights in the scene are brightened and tinted with a warm tone. See the render before and after compositing.

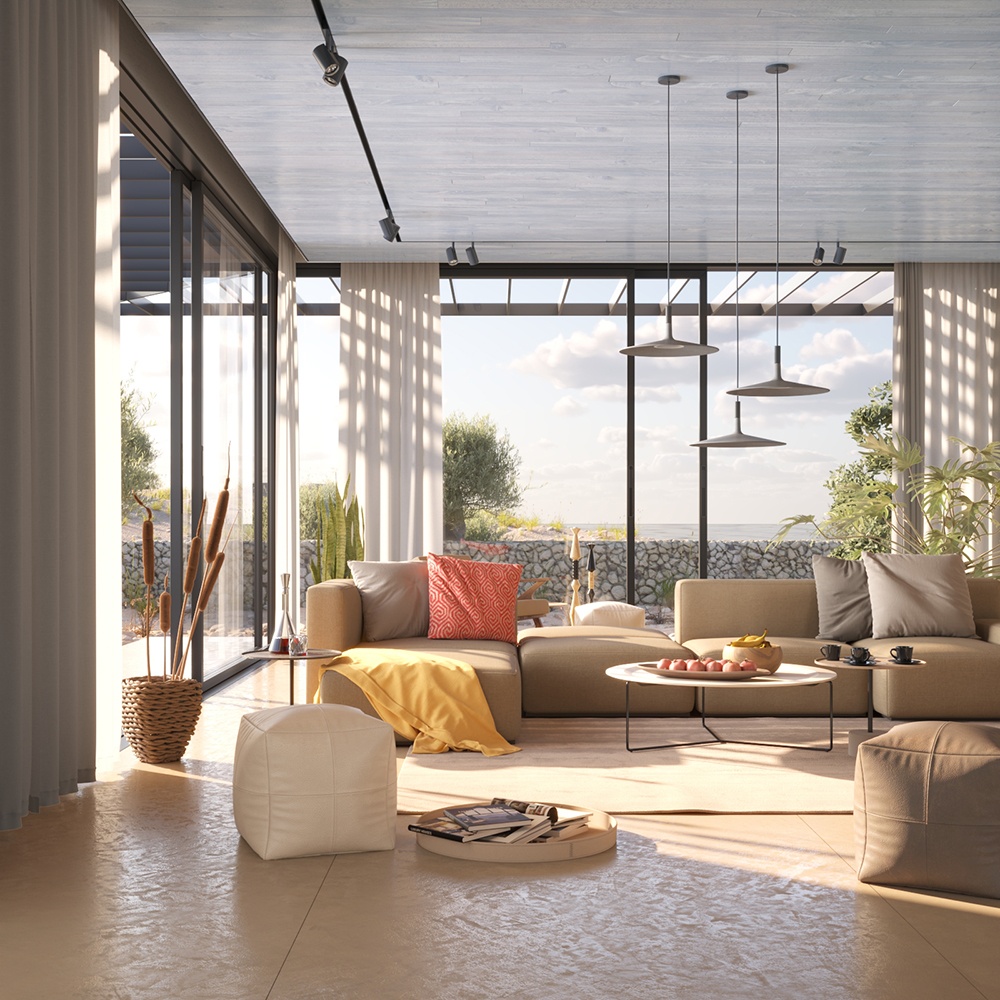

Before
After
