This page provides information about the Atmosphere render element in V-Ray for SketchUp.
Overview
Stores an image of the light scattered by atmospheric or volumetric media such as Fog or Aerial Perspective.
Atmosphere
Beauty
UI Paths
||V-Ray Asset Editor|| > Render Elements (right-click) > Atmosphere
||V-Ray Asset Editor|| > Create Asset (left-click) > Render Elements > Atmosphere

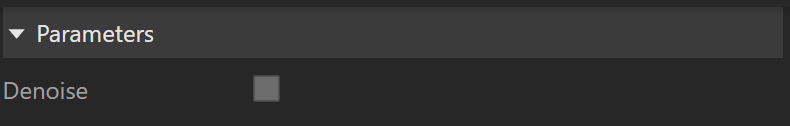

Parameters
Denoise – Specifies whether to denoise this render element.
Common Uses
The Atmosphere Render Element is useful for changing the appearance of the atmosphere and volumetric effects in a rendered image using compositing or image editing software. In the example, fog is generated using the Environment Fog. A warmer color is assigned to the fog and the intensity is increased using the Atmosphere RE.
Before
After

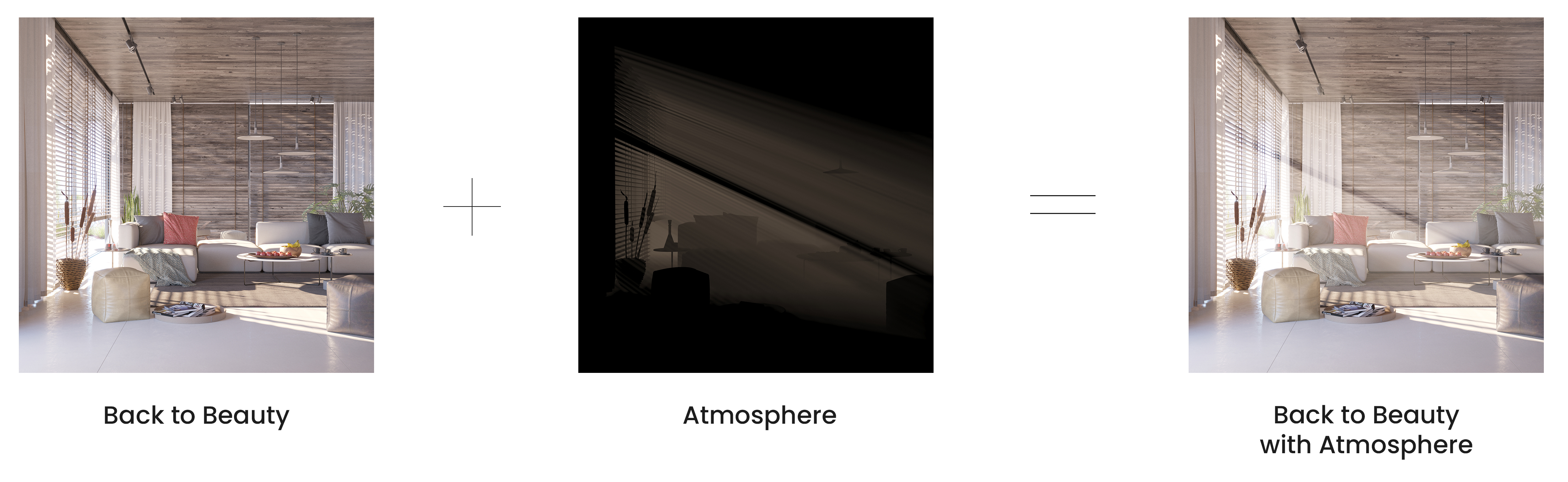

Compositing
