Cosmos 3D Models

Downloaded Cosmos assets are listed in the Asset Editor under the Geometry section. They can be identified by the Cosmos icon. They can be renamed, deleted, used as replacements, moved, and merged.

The status icon () indicates whether the paths to the textures and other external reference files used by the asset are valid. Hover over the icon for more detailed information.

Use Mtl Override – When enabled, the global Material Override option in the Render Settings overrides the asset. When disabled, the asset in the referenced scene is not affected by the Material Override option in the Render Settings.

Viewport Preview – Offers different viewport preview representations of the Chaos Cosmos assets.

High – Displays the original mesh in the viewport. Using this option with heavy meshes and scenes might take longer before the mesh is displayed in the viewport and might slow down SketchUp significantly. The process is dependent on the poly-count and the representation is quite detailed.
Medium
Low
Bounding Box – Previews are shown as bounding boxes.
Point (Origin) – Previews the mesh with its own point of origin.

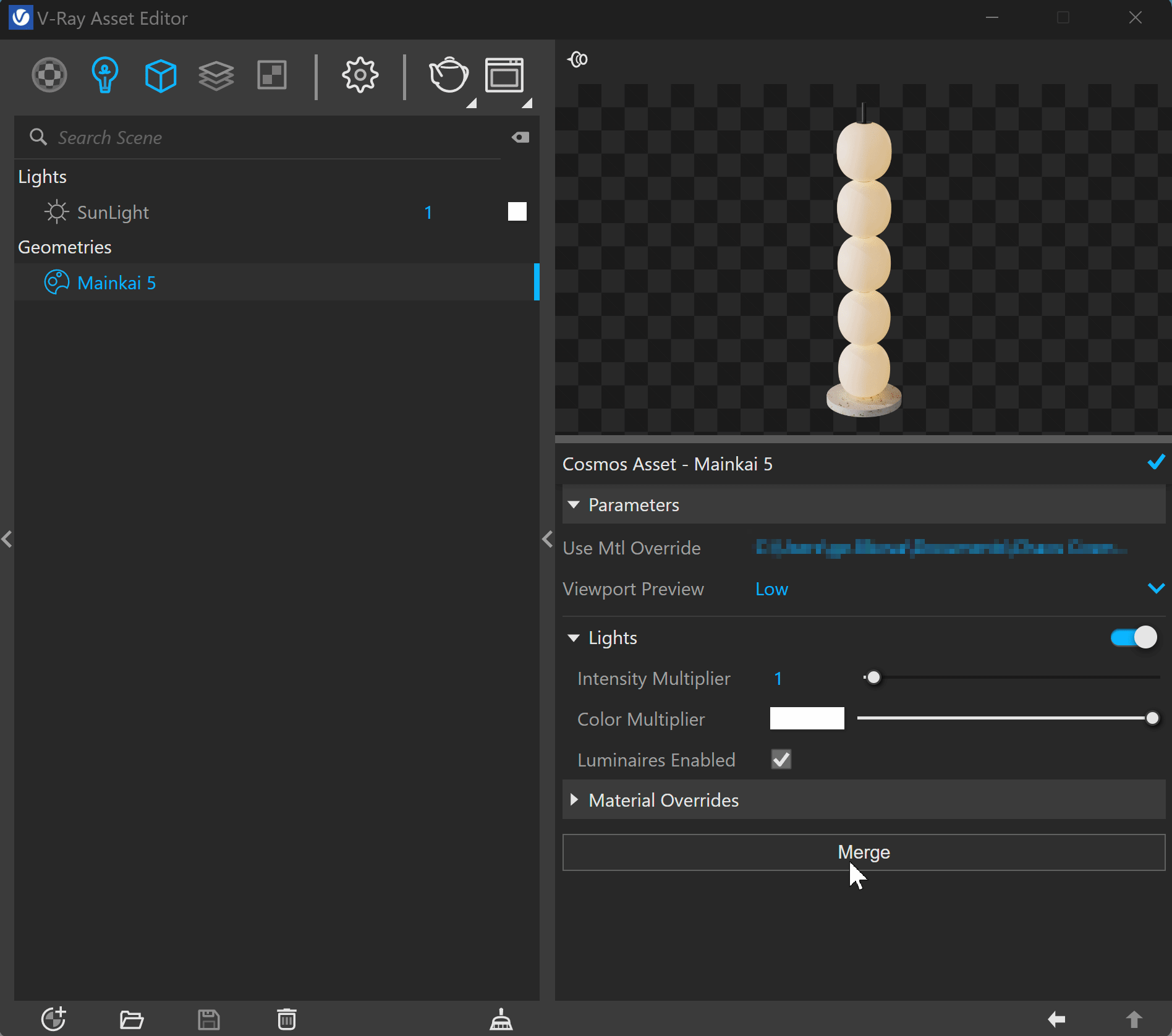

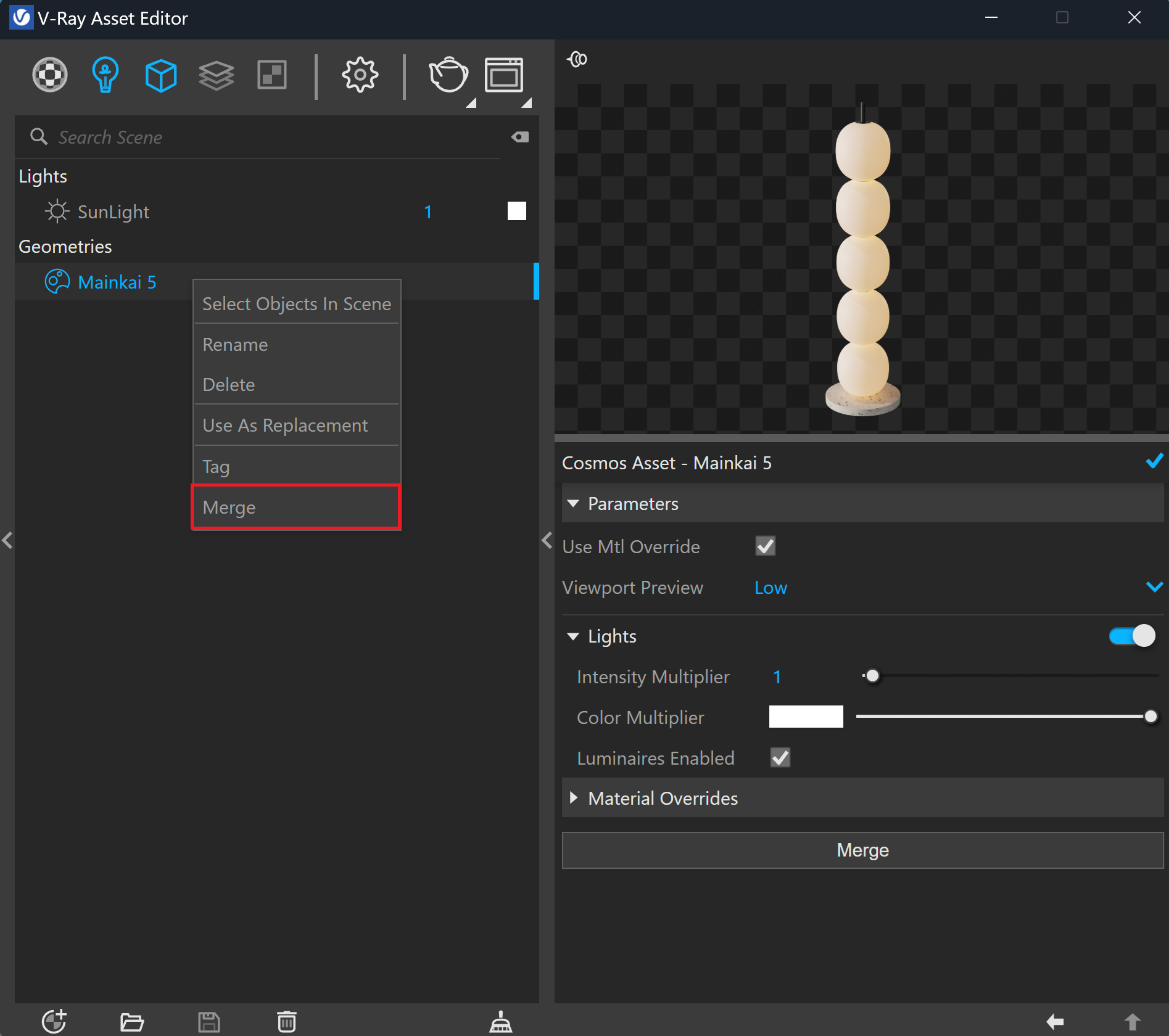

Converts the Chaos Cosmos asset to a standard proxy mesh with material assignments and populates the scene with materials and lights. That way, you can edit the asset's materials or IES Light’s parameters. The merge process is irreversible. For more information on proxy meshes, refer to the Proxy Mesh page.

Find all light sources, including IES lights in the Chaos Cosmos browser Lighting section.

Lights – Enables the Cosmos Light asset.

Intensity Multiplier – Multiplies the intensity of all instances of the Cosmos asset.

Color Multiplier – Multiplies the color of all instances of the Cosmos asset. For more information regarding the color swatch, refer to the V-Ray Asset Editor page.

Luminaires Enabled – When enabled, Luminaires included in this asset are used for light emission when rendering. When disabled, the original light source is used.

The Material Overrides section displays all materials of Chaos Cosmos 3D Assets, allowing you to replace materials without merging the asset.

Left-click on any Embedded material opens a dropdown list of materials available in the scene. Select one of the available materials to override the current one.

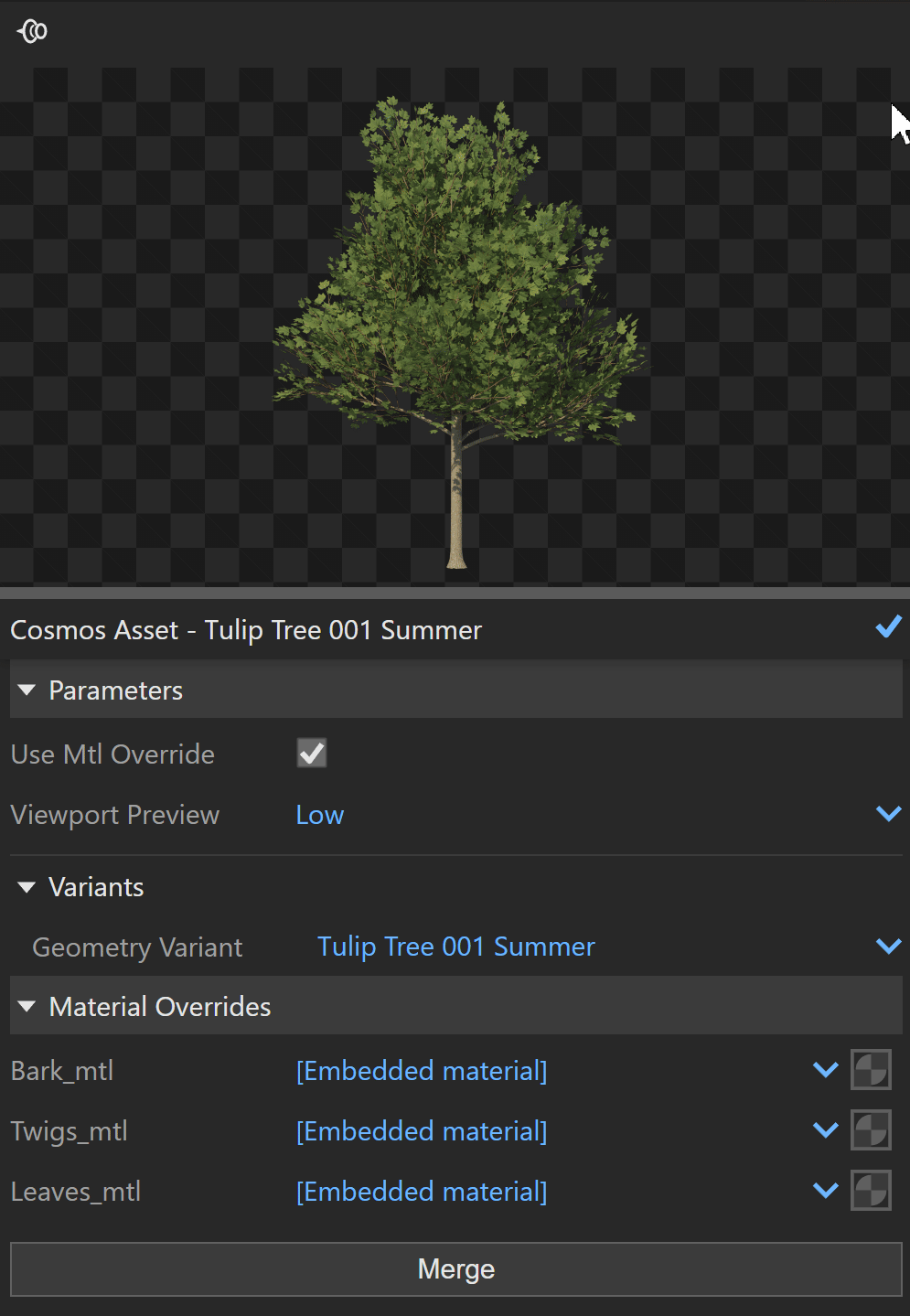

Asset Variants are Cosmos assets that have more than one variations regarding to materials and geometry. Each variation parameter has a label that cannot be changed, taken directly from the Cosmos asset. Some variant choices may show additional options, called sub-variants.

When you select a variant from the dropdown, it will update the Cosmos asset’s viewport, render output, and asset preview. If you change one variant to another, all values in the Lights or Material Overrides sections will reset to their default settings.

Cosmos assets with newer versions on the server have an "update" button in the Asset Editor. Press the update button () to start the update.

Note that the update can change the appearance of the object and the rendered result.

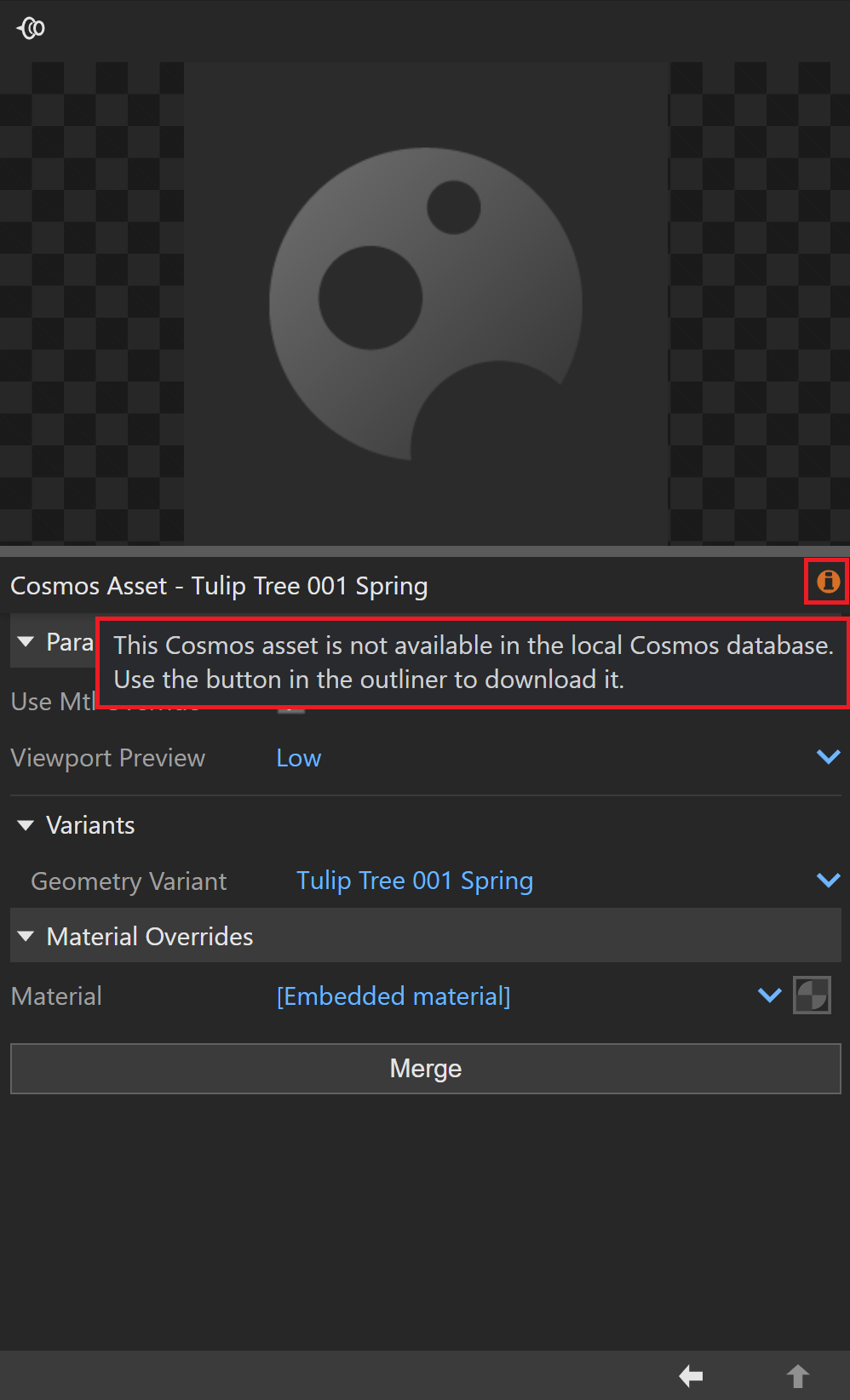

If the asset files are missing, a Download button () is present.

The download progress is present next to the button ().

A Refresh button appears when the Cosmos Asset was imported with an older V-Ray version. Perform this action once to update the UI and unlock new features like Material Overrides and Variants. ()
