This page offers information about the Direct Light in Chaos Vantage.



The Direct Light is the representation of the Direct light in Chaos Vantage. The Direct Light can only be accessed when imported with a .vrscene file.

You can use the right mouse button click to reset the parameters numeric values to defaults.

Lights that have [G] in front of their name are grouped and share properties. Changing any value will be instanced in all the grouped lights. You can ungroup lights by clicking on the checkbox in front of "Grouped with ## other lights"

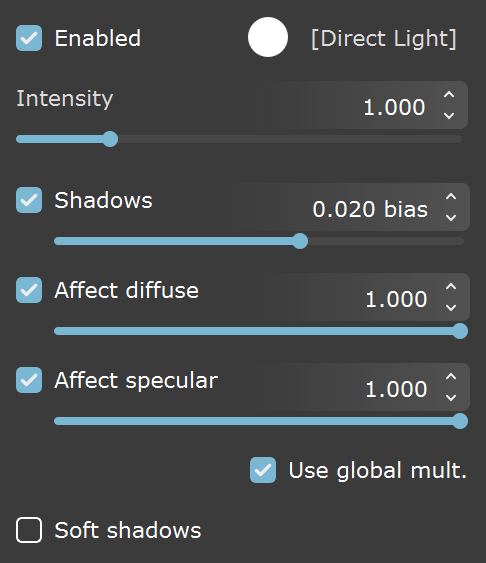

 Click here for UI...


Direct Light Parameters

Enabled – Turns on and off the directional light.

Color – Changes the color of the direct light.

Intensity – Specifies the intensity of the directional light's brightness.

Shadows – When enabled (the default), the light casts shadows. Turn this option off to disable shadow casting for the light. The value moves the shadow toward or away from the shadow-casting object(s). Higher values move the shadow toward the object(s), while lower values move it away. If this value is too extreme, shadows can "leak" through places they shouldn't or "detach" from an object. Other effects from extreme values include Moire patterns, out-of-place dark areas on surfaces, and shadows not appearing at all in the rendering.

Diffuse – Determines whether the light affects the diffuse portion of the materials. The value controls the light's contribution to the diffuse portion of the materials.

Specular – Determines whether the light affects the specular portion of the materials. The value controls the light's contribution to specular reflections.

Reflections – Specifies whether the light source appears in reflections.

Use global mult. – When enabled, uses the Enable Lights value as a multiplier to Intensity value. When disabled, the light is independent from the global multiplier.

Soft shadowsWhen enabled, the light shape will be considered for illumination and the light is going to generate soft shadows. When disabled, the light is going to generate sharp shadows.

Soft illuminationThe light shape will be considered for the calculation of the illumination and shadows.

Area specularsWhen enabled, the shape of the light will be visible in the specular reflections. When disabled, the particular light will be rendered as a point light in the specular reflections.
