This page provides information about the V-Ray Al Surface Material in Cinema 4D.
Overview
The V-Ray AL Surface shader is V-Ray's implementation of Anders Langland's alShader, which is designed to reproduce the appearance of skin. The current version takes into account diffuse reflection, two levels of reflection, and subsurface scattering.
UI Paths
||V-Ray|| > Al Surface Material

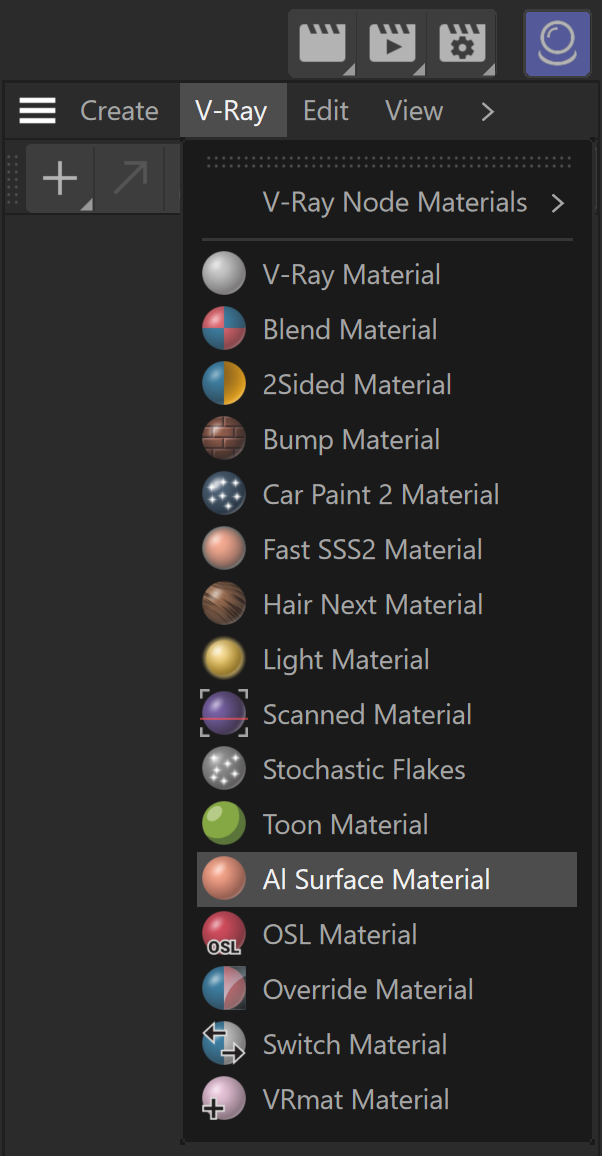

||Create|| > V-Ray > Al Surface Material (disabled Separate menu for V-Ray materials)
Diffuse and Opacity
Opacity – Assigns transparent properties to the material, where white is completely opaque and black is completely transparent. Maps can also be assigned to create a material that has a non-uniform opacity.
Diffuse Color – The color of the material. Note: The actual diffuse color of the surface also depends on the reflection and refraction colors. You can use a texture map for the diffuse color.
Texture – Specifies a texture file to be used for the diffuse.
Mix Strength – Specifies a blend amount for the texture map.
Diffuse Strength – A multiplier for the diffuse color.
Diffuse Bump Map – Specifies a texture as the bump or normal map for the diffuse component. The bump effect here is added to the General parameters bump effect. If no map is set in the General parameters or the map there is disabled, the map in this layer still produces its bump effect.
Diffuse Bump Amount – A multiplier for the bump map effect.
Diffuse Bump Type – Determines how the Diffuse Bump Map parameter is interpreted.
Bump map – Applies the map as a bump map.
Normal map in tangent space – Applies the map as a normal map in tangent space.
Normal map in object space – Applies the map as a normal map in object space.
Normal map in screen space – Applies the map as a normal map in screen/camera space.
Normal map in world space – Applies the map as a normal map in world space.
From texture bump output – The map is applied as determined by map type itself.
Explicit normal – Applies the map as an explicit normal.
Reflection
The AL Surface Material has two reflection tabs with identical parameters for precise control over two types of reflection.
Reflect Color – The reflection color. Note that the reflection color dims the diffuse surface color.
Texture – Specifies a texture file to be used for the reflection.
Mix Strength – Specifies a blend amount for the texture map.
Reflect Strength – A multiplier for the reflection color.
Reflect Roughness – Used to simulate rough surfaces or surfaces covered with dust.
Reflect IOR – The IOR to use when calculating Fresnel reflections. Normally this is locked to the Refraction IOR parameter, but you can unlock it for finer control.
Reflect Distribution – Determines the type of BRDF (the shape of the highlight):
Beckmann – Uses a Beckmann distribution for the reflection.
GGX – Uses GGX distribution for the reflection. The GGX distribution has a longer "tail" compared to the Beckmann distribution.
Reflect Bump Map – Allows the user to select a texture for the bump or normal map for the reflection component. The bump effect here is added to the General parameters bump effect. If no map is set in the General parameters or the map there is disabled, the map in this layer still produces its bump effect.
Reflect Bump Amount – A multiplier for the bump map effect.
Reflect Bump Type – Determines how the Reflect Bump Map parameter is interpreted.
Bump map – Applies the map as a bump map.
Normal map in tangent space – Applies the map as a normal map in tangent space.
Normal map in object space – Applies the map as a normal map in object space.
Normal map in screen space – Applies the map as a normal map in screen/camera space.
Normal map in world space – Applies the map as a normal map in world space.
From texture bump output – The map is applied as determined by map type itself.
Explicit normal – Applies the map as an explicit normal.
SSS

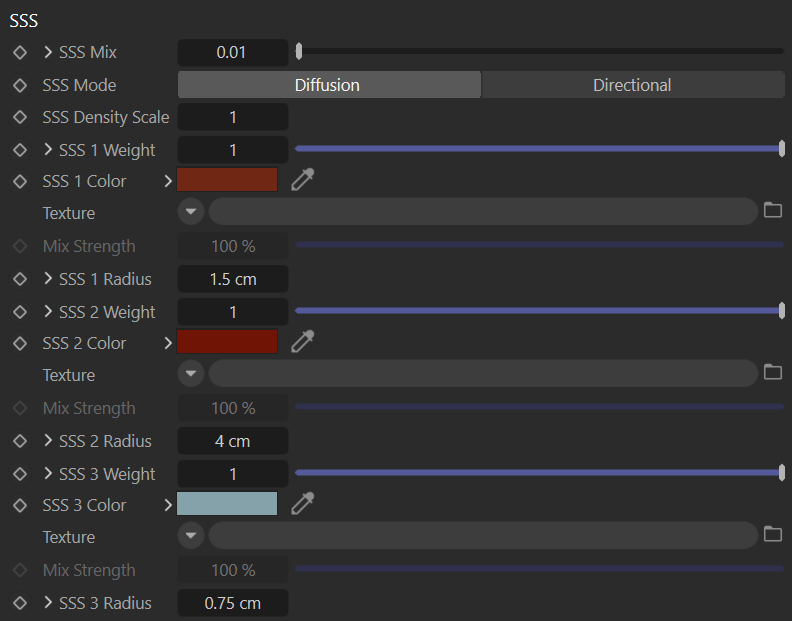

The SSS tab has three identical options for subsurface scattering control.
SSS Mix – Enables or disables the SSS options.
SSS Mode – Sets the Sub Surface Scattering Mode.
SSS Density Scale – Additionally scales the SSS radius parameters. Normally, the material takes the scene scale into account when calculating the subsurface scattering effect. However, if the scene was not modeled to scale, this parameter can be used to adjust the effect.
SSS Weight – The relative contribution of the shallow scattering layer to the material.
SSS Color – The color for the shallow scattering layer.
Texture – Specifies a texture map to be used as the SSS Color.
Mix Strength – Specifies the blend amount of the texture.
SSS Radius – The distance that light is scattered within the shallow layer.
Enable Outlines – When enabled, adds outlines to the object the material is applied to. This option is disabled by default. Line Color – Determines the color of the outlines. A Texture can be applied. Line Width – Determines the width of the outlines in pixels. The soft limit is 100. Click on the arrow to expand. A Texture can be applied. Opacity – Determines how opaque the lines are. Click on the arrow to expand. You can attach a Texture for the opacity. The Mix Strength option determines the percentage of blending between the Opacity value and the texture. Outer Overlap Threshold – Determines when outlines are created for overlapping parts of the object. Lower values reduce the outer overlapping lines, while higher values produce more overlapping outer lines. Normal Threshold – Determines at what point lines are created for parts of the object with varying surface normals (for example, at the inside edges of a box). Lower values mean that only sharper normals generate an edge, while a value of 0.5 means that 90 degrees or larger angles generate internal lines. Higher values mean that smoother normals can also generate an edge. Don't set this value to pure 1.0, as this fills curved objects completely. Overlap Threshold – Determines when outlines are created for overlapping parts of the object. Lower values reduce the internal overlapping lines, while higher values produce more overlapping lines. Don't set this value to pure 1.0, as this fills the objects completely. Inner Line Control – When enabled, allows the inner line to be edited further. This option is disabled by default. Inner Line Color – Determines the color of the inner lines. A Texture can be attached Inner Line Width – Determines the width of the inner lines in pixels. Click on the arrow to expand for the Texture option, where you can attach a texture to serve as the inner line width.Outlines
Inner Line Control

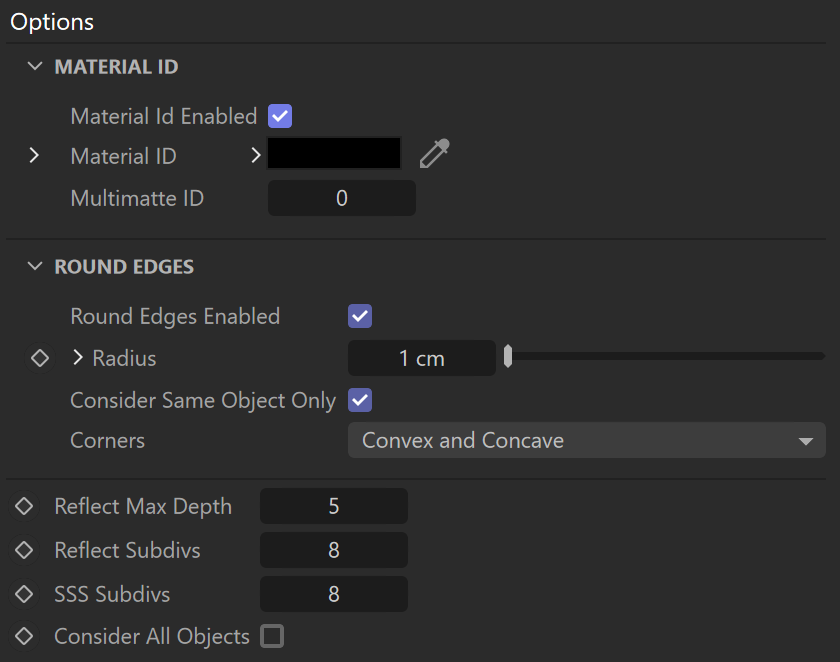

MATERIAL ID Material Id Enabled – Enables the use of Material ID. Material ID – The color used by the Material ID render element. You can also use a shader here. Multimatte ID – The integer ID of the material to be used by the Multimatte render element. ROUND EDGES Round Edges Enabled – Enables the round edges effect, which uses bump mapping to smooth out the edges of the geometry during render time. Radius – Specify a radius (in world units) for the round edges effect. Since the actual geometry is not being changed and only the normals of the faces are affected, large values may produce undesirable effects. Consider Same Object Only – When enabled, the rounded corners are produced only along edges that belong to the same object which has the attribute applied. When disabled, rounded corners are also produced along edges formed when the object with the attribute intersects other objects in the scene. Corners – Choose which edges are considered in the calculation. Possible options are: Covex and Concave – Considers all edges. Reflect Max Depth – The number of times a ray can be reflected. Scenes with many reflective and refractive surfaces might require higher values to look correct. Reflect Subdivs – Determines the number of samples when V-Ray is calculating Reflection. SSS Subdivs – Determines the number of samples when V-Ray is calculating SSS. Consider All Objects – When enabled, the V-Ray AI Surface considers all intersecting objects with Al Surface when calculating the sub-surface scattering effect to allow for the effect to "bleed through". This option is not available in V-Ray GPU.Options
Convex Only – Only applies Round Edges effect to edges with convex angles.
Concave Only – Only applies Round Edges effect to edges with concave angles.
Preview Settings

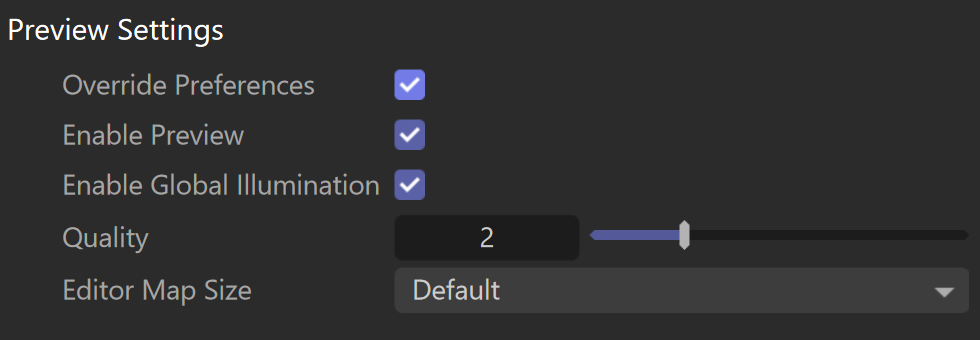

Override Preferences – When enabled, the parameters in this tab override the global preferences of the scene for the selected material.
Enable Preview – When disabled, the previews of the material in the Viewport and the Material Editor are disabled. The material is displayed in all black. This saves on processing power.
Enable Global Illumination – When disabled, global illumination is not calculated for the current material preview.
Quality – Determines the quality of the material previews. Higher values give more detail but slow down processing.
Editor Map Size – Determines the resolution of the material preview. If you have extra-detailed textures applied to the material, this option allows you to preview those textures in higher resolution at the preview step, without needing to render.
Default
64×64 (16 KB)
128x128 (64 KB)
256x256 (256 KB)
512x512 (1 MB)
1024x1024 (4 MB)
2048x2048 (16 MB)
4096x4096 (64 MB)
