This page contains information on the Layers panel in the V-Ray Frame Buffer.

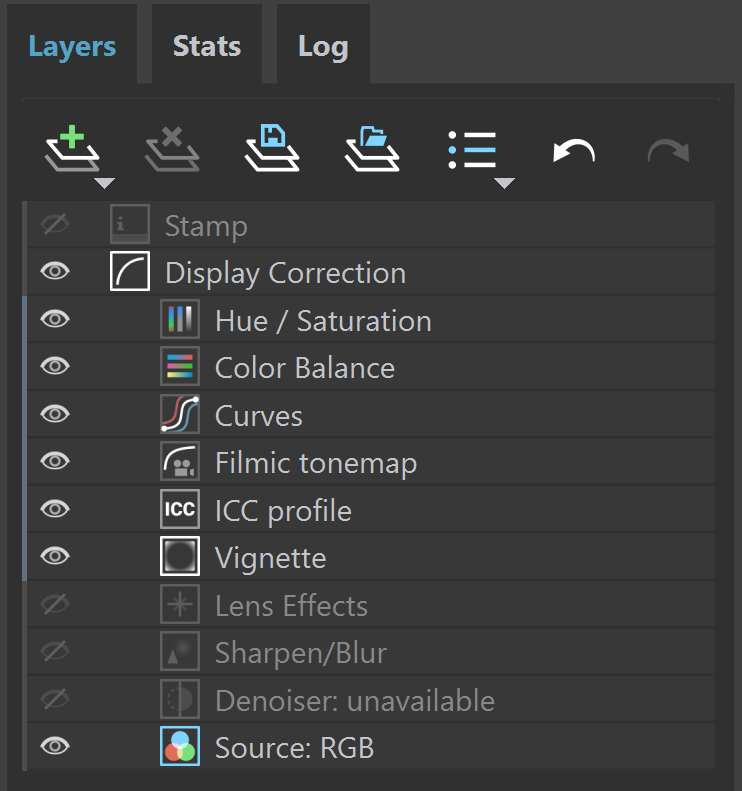

The Layers panel in the V-Ray Frame Buffer provides a new, powerful workflow for adjusting your rendered image. You can bring out render elements and compose them with individual color corrections in the panel's Composite mode or deconstruct light contribution in the scene and fine-tune each light individually in the completed render using the VRayLightMix mode. You can also color-correct the final render, just like you were able to do in the previous version of VFB.

 UI Path: ||V-Ray Frame Buffer|| > Layers

Layers Menu

Commands available for the Layers panel are located at the top of the panel. Press the icons to see the expanded list of commands for the stacked buttons.

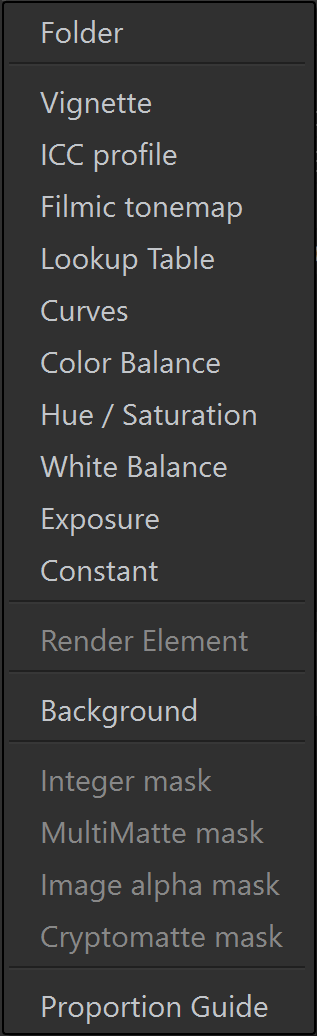

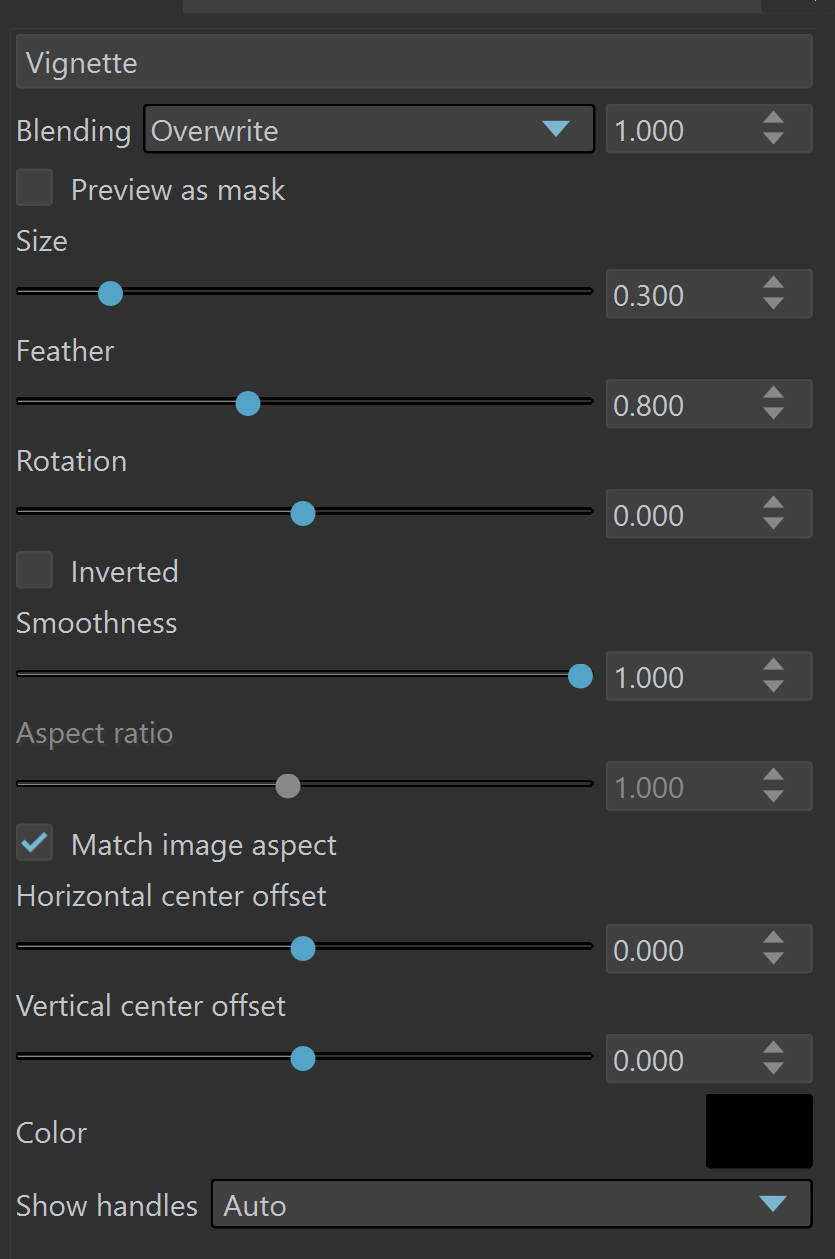

Creates a layer. Multiple layers of the same type can be added.

Folder - Allows grouping multiple layers in folders. This is only available when the Source layer is set to Composite;
Background – Adds a background color correction layer;
Render element - Selects a render element from your image that you can use in compositing. This is only available when the Source layer is set to Composite;
Constant - Adds a solid color that can be used to achieve an effect on another layer (for example to multiply by the constant);
Exposure - Adds an Exposure color correction layer;
White Balance - Adds a White Balance color correction layer;
Hue/Saturation - Adds a Hue/Saturation color correction layer;
Color Balance - Adds a Color Balance color correction layer;
Curves – Adds a Curves color correction layer;
Lookup Table - Allows loading a LUT file for color transformations;
Filmic Tonemap – Contains different types of mapping curves and gamma corrections. Also allows selection of a color space.

Deletes the selected layer(s).

Saves a layer tree preset.

Loads a layer tree preset.

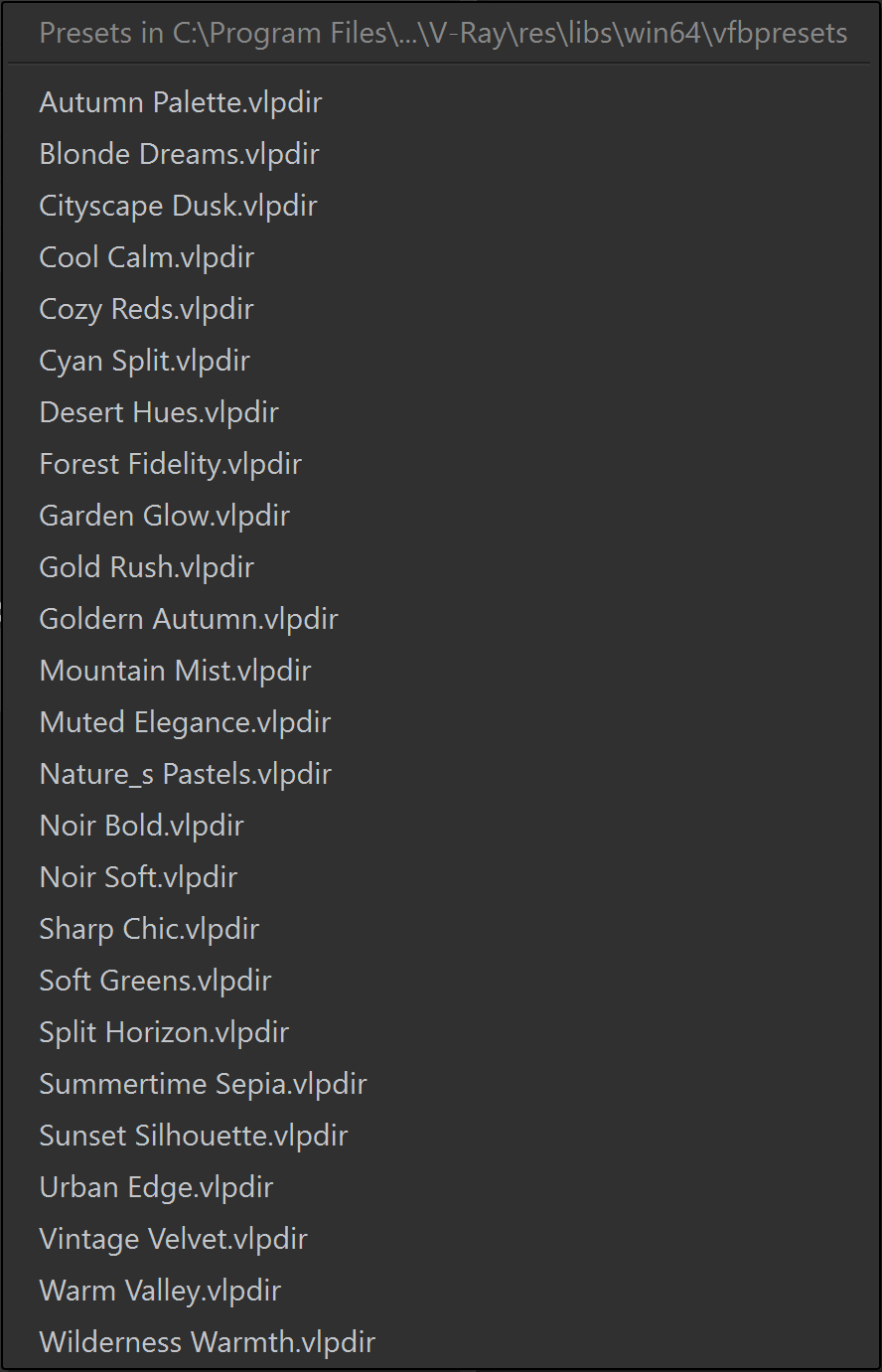

Quick access to custom layer presets. You must set the path to it in the VFB Settings.

Undo create layer.

Redo create layer.

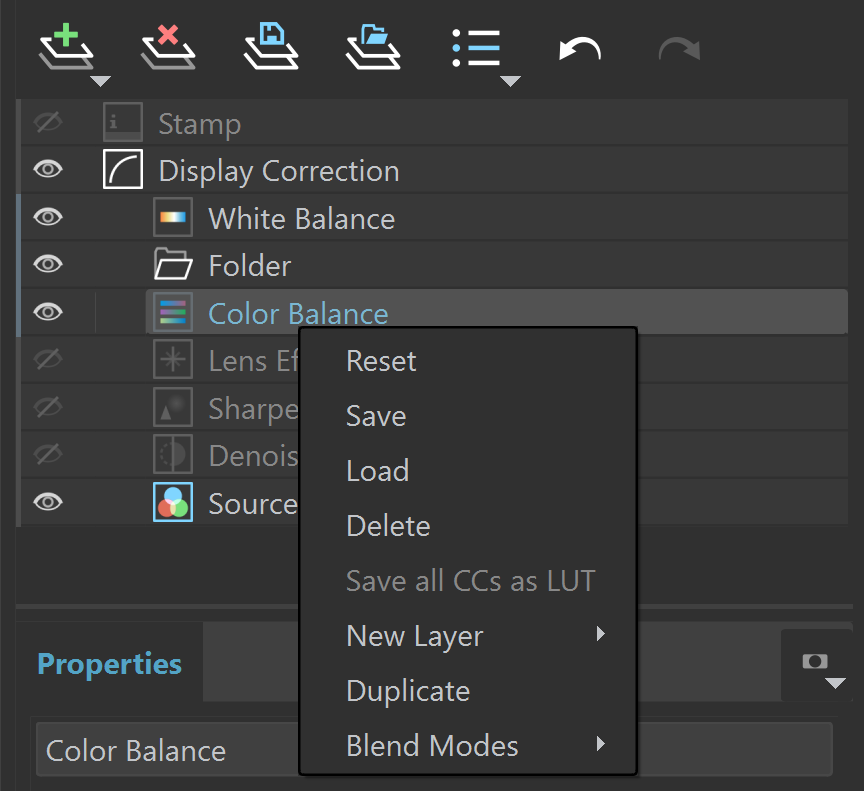

ResetResets all changes done to the selected layer.
SaveSaves the layer as a preset.
LoadLoads a preset for the selected layer.
DeleteDeletes the selected layer.
Save all CCs as LUTBakes all the color corrections to a LUT file.
New LayerCreates a new layer.
DuplicateDuplicates the selected layer.
Blend ModesSpecifies how the selected layer blends with the result from all layers below it.

Color correction layers like Exposure and White Balance can be applied to a single layer instead of the entire composite.

You can do that by selecting a layer and then adding a new correction or by dragging the correction layer to another layer until an arrow icon appears.

The Display CorrectionLens Effects, Denoiserand Source layers are listed in the Layers panel by default to any rendered image. Their order cannot be changed.

Layers can be disabled from the visibility icon (), reordered, nested, stacked in folders, etc.

Layers can me masked using the masking icon (). See the Masks page for more.

Corrections are applied from the bottom to the top, except for nested layers, which are executed after their parent.

Color corrections and the denoiser channel are saved in the output image just like they are applied in the VFB.

Adjustments made to the Display Correction layer are only applied for preview purposes in the VFB. Display corrections are usually saved for 8-bit image formats like JPEG and PNG and not to EXR files, which are expected to be linear.

Blend Modes

Layers are applied from the bottom to the top, where the bottom is the background (BG) and the top is the foreground (FG) of the composite.

Opacity – Controls the weight of the layer. A value of 0 means no effect and a value of 1.0 means full effect.

Blend Mode – Specifies how the layer blends with the result from all layers below it.

When adding a new layer, it is placed on top of the stack and it is considered the foreground (FG).

The result of all layers below it is considered the background (BG). Layers are applied from the bottom to the top.

Where darker and lighter pixels are mentioned, it is in relation to mid-grey.

Blend Mode*Description
OverwriteDisplays the current layer (FG) on top of all layers (BG) without blending. This is the default.
AverageThe average of the current layer (FG) and the result from the layers below it (BG).
AddAdds the FG to the BG.
SubtractSubtracts the FG from the BG.
DarkenCompares the FG to the BG and takes the darker pixel values of the two.
MultiplyMultiplies the FG by the BG.
Color BurnThe color of the FG is applied to darker pixels in the BG.
Linear BurnSame as Color Burn but with less contrast.
LightenCompares the FG to the BG and takes the lighter of the two.
ScreenMakes both light and dark areas lighter.
Pin LightReplaces the BG colors depending on the brightness of the FG color.
If the FG color is lighter than mid-gray, BG colors darker than the FG color are replaced and vice versa.
DifferenceCompares the pixels in the BG and FG and subtracts the darker pixels from the brighter ones.
ExclusionSame as Difference but with less contrast.
HueUses the hue from the FG , while the value and saturation are taken from the BG.
SaturationUses the saturation from the FG, while the value and hue are taken from the BG.
ColorUses the hue and saturation from the FG, while the value is taken from the BG.
ValueUses the value from the FG, while the hue and saturation are taken from the BG.
Hard Mix (8bit)Adds the FG to the BG and for each color component returns a value of 255, if the result is 255 or greater; or returns 0, if the result is less than 255.
Color Dodge (8bit)The color of the FG is applied to lighter pixels in the BG.
Linear Dodge (8bit)Same as Color Dodge but with less contrast.
Spotlight (8bit)Same as Multiply, but with twice the brightness.
Spotlight Blend (8bit)Same as Spotlight, but additionally brightens the BG.
Overlay (8bit)Darker pixels become darker where the BG is dark, and brighter pixels become brighter where the BG is bright.
Soft Light (8bit)Darker pixels become darker where the FG is dark, and brighter pixels become brighter where the FG is bright.
Hard Light (8bit)Spotlight is applied to pixels where the FG is dark, and Screen is applied to pixels where the FG is bright.

*  All 8-bit blend modes clamp colors to a maximum value of 1.0.

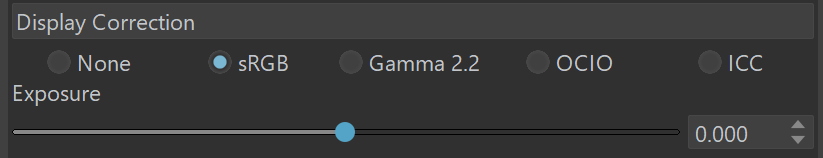

Display Correction


The Display Correction layer specifies the color space, in which the image is displayed. You can choose between sRGB, Gamma 2.2, OCIO and ICC or select None to return to a linear display.

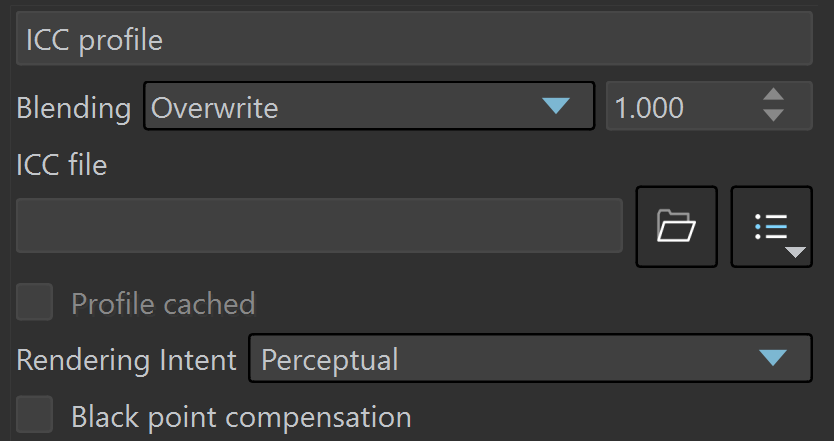

The ICC correction allows you to apply an ICC profile to the image, so that (for example) it matches the appearance of the image in Adobe Photoshop. This is a display correction that is only applied when the image is viewed in the frame buffer. It is not applied when the image is saved to a file.

The OCIO correction allows you to apply color corrections from an .ocio color profile to image colors. When this correction is enabled and no specific .ocio profile is specified, it attempts to read the OCIO environment variable and apply the profile specified in it.


Normally you would specify the ICC file for your calibrated monitor here. Programs like Photoshop display images using your (primary) monitor's ICC profile automatically. However (at least for the moment), Cinema 4D is not a color-managed application and you must manually load the monitor ICC profile into the V-Ray frame buffer in order to match the appearance of your images in Photoshop.

The Display Correction layer cannot be removed or reordered. It is always applied on top of all other layers, as it specifies the display color space of the resulting image or composite in the frame buffer.

OpenColor (OCIO)

Input color space – Specifies the input color space for the image; normally this is a linear color space as V-Ray internally works in that space.

Display Device – Specifies the device on which the VFB with the image is displayed.

View Transform – Specifies the viewing transformation.

Save in image – Saves/bakes the OCIO effect along with the image. This does not affect multi-channel images (such as multi-channel .exr).



The Source layer determines the input of the layers stack. It specifies if you work on your rendered image, composite or light mix.

RGB - The rendered image is the source.

LightMix - This mode allows you to adjust the intensity and color of your lights during and after the render. Changes can be transferred back to the lights in the scene. To use LightMix, add a VRayLightMix render element before rendering.

Composite - You can add Render element layers in this mode and start compositing your image from the render elements rendered with it. For example, you can do a simple Back to Beauty compositing of your image in this mode.

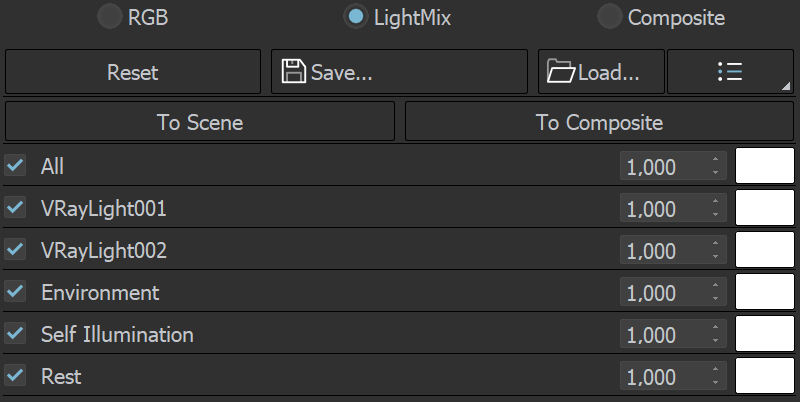

LightMix Mode

When the Source is set to LightMix, you can enable/disable lights and adjust light intensity and color during and after the render. The modifications can be saved as light mix presets and reused. VRayLightMix automatically creates Environment and Self Illumination render elements. See the LightMix page for more information and examples.

Reset – Resets all changes made to default values.

Save – Saves the changes as a light mix preset.

Load – Loads a light mix preset.

To scene – Applies the current VRayLightMix changes to the scene. This sends all changes to colors/intensities back to the scene lights.

To Composite – Sends the Light Selects from LightMix to Composite for additional post adjustments.

Recent – Shows a list of recent light mix presets.

Checkbox – Enables/Disables the selected light.

Multiplier – Specifies an intensity multiplier.

Color Slot – Specifies a color for the selected light.

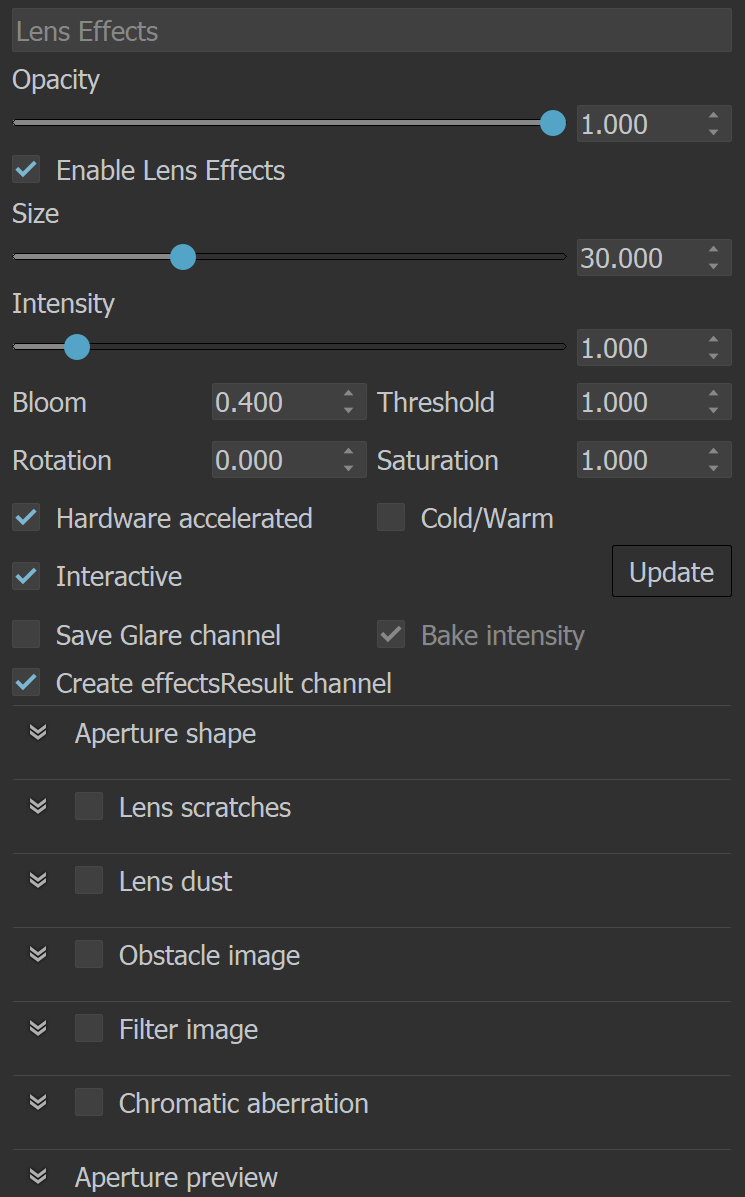

Lens Effects

The Lens Effects layer simulates real-world camera lens effects such as bloom and glare. The plug-in uses a fast multi-threaded technique to compute the result and provide immediate updates in the VFB. V-Ray Lens Effects are applied in the effectsResult channel together with other post effects executed over the RGB rendered image. See the Lens Effects page for more information on the individual parameters of this layer.


This layer helps you compute sharpening or blurring post-effects to your image.

Calculate Sharpen/Blur – Enables computation on the sharpen/blur post effect and automatically sets it visible when computed.

Sharpen amount – Applies sharpening to the image. Increasing the amount leads to a sharper image, while setting the amount to 0 switches off this filter.

Sharpen radius – Determines the radius in pixels used for sharpening. Higher values lead to more extensive sharpening.

Blur radius – Determines the radius in pixels used for blurring. Higher values lead to a greater blurring effect.

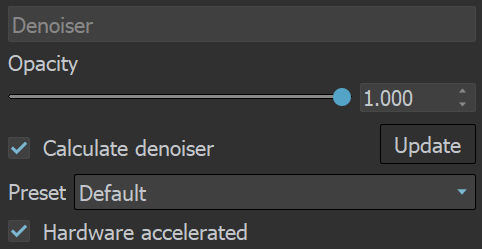

This layer allows you to control the V-Ray Denoiser from inside the VFB. This layer is available only if the V-Ray Denoiser is enabled. Enable it from the Render Settings.

Calculate denoiser – Enables/disables the denoiser calculation. This can be useful sometimes while adjusting your render. Disabling the denoiser layer visibility instead still calculates the denoiser in the background.

Update – Updates the Denoiser layer manually and also initiates a Lens Effects update.

Preset – Offers presets to automatically set Strength and Radius values.

Default – Applies mid-level denoising.
Mild – Applies a more subtle level of denoising than the Default preset.
Strong – Applies a stronger level of denoising than the Default preset.
Custom – Allows the Strength and Radius parameters to be set to custom values.

Hardware accelerated – Uses the GPU device(s) to accelerate the denoising calculations. In case there is no compatible GPU device, denoising automatically falls back to use the CPU, even if the option is enabled. When the NVIDIA AI denoiser is used, this option is not available, as it requires an NVIDIA GPU.


This section allows you to load an image and use it as a background for your render.

Opacity – Determines the opacity of the layer.

Color – When enabled, sets a color value as the background.

Image – When enabled, loads a file that is going to be used as a background.

Stretch – Control the aspect ratio of the image by stretching the image to fit the VFB.
Fit – Keeps the aspect ratio of the image. Enlarges or shrinks the VFB to fit the image.
Fill Keeps the aspect ratio of the image and cuts some parts of the picture to fill the VFB.

Horizontal OffsetControls the background image position by the X axis.

Vertical offset – Controls the background image position by the Y axis.

As foreground – When enabled, the image loaded in the Image field is used as a foreground. This means that the image is on top of the render and you are able to see the render only if the image has an alpha channel.

Save in image – When enabled, saves the Background layer to the image.

Color Transformation – This dropdown allows display corrections to be applied to the Background layer independently.

Auto – Recognizes what the desired transformation would be based on the image suffix (_srgb, _lin_srgb, _acescg...) and sets those settings automatically.

Manual – Allows manual setup of the color transformation options. The options can be left at Auto and be determined automatically by V-Ray. The options can be set to None and apply no transformations.

RGB color space – Choose which color space to use for the color transformations. sRGB is the color space for most monitors and computer displays. ACEScg allows for greater range of color transformations in post. It has a wider gamut of colors than the sRGB linear gamut.
Transfer function – Alters the pixel values to a new range. Gamma 2.2 is the standard for most monitors.

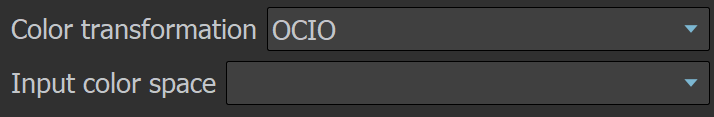

OCIO – Allows an Input color space to be selected when an OCIO profile is already loaded. OCIO profiles can be loaded either through the Display Correction layer.

Input color space – Determines the input color space for the background image; normally, this is a linear color space as V-Ray internally works in that space.

When there is a Dome Light placed in the scene, it needs to either be set as Invisible, or the Affect Alpha option needs to be turned off for the Background layer to display.

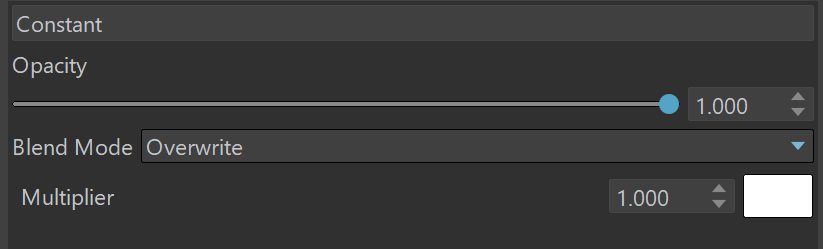

This color correction applies a solid color that can be used as a constant to achieve an effect on another layer. For example, it can be multiplied by another layer.

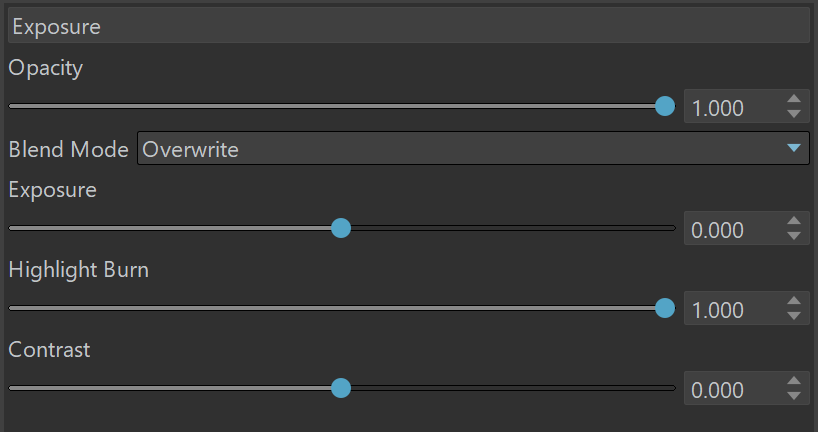

This color correction applies exposure and contrast to the image. An Exposure value of 0.0 leaves the original image brightness, +1.0 makes it twice as bright, and -1.0 makes it twice as dark. Highlight Burn selectively applies exposure corrections to highlights in the image. Positive Contrast values push the colors away from the medium gray value to increase image contrast, while negative values push the colors closer to medium grey.

White Balance

The White Balance (Temperature) slider corrects the colors in the image so that objects that are white appear as pure white (and not tinted blue, yellow, red, etc.) in the final image.


This correction applies HSL transformation on the image colors. Moving the Hue slider changes the overall hue of the image colors (grey colors remain intact). Lower Saturation values move the image towards greyscale while higher values increase the colors' intensities. Higher Lightness values add white to the image, whereas lower values subtract white from the image.

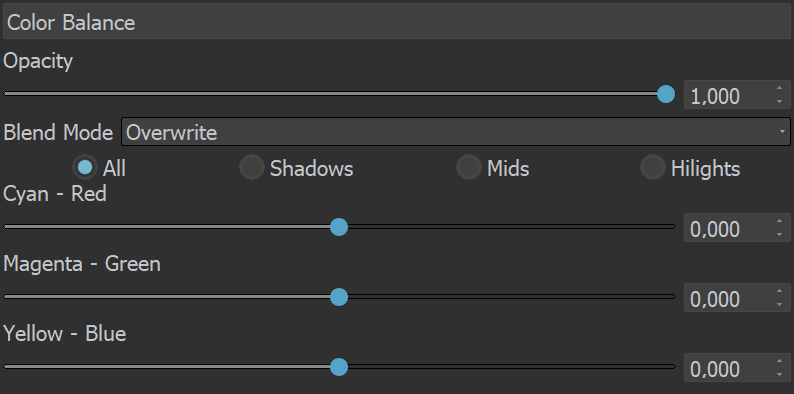

Color Balance

This correction adjusts the overall color tone of the image, as well as the tone of the dark (shadow), medium, and bright (highlight) colors. The color corrections are additive in that the All correction affects all colors of the image, and the Shadows/Midtones/Highlights options adjust the individual components in the image on top of the All correction.


This correction allows you remap the image colors with a Bezier curve. The control also allows you to save and load .acv curve files from Adobe Photoshop.

Controlling the View

Use the mouse wheel to zoom in and out of the curve view. Drag with the middle mouse button to pan.

Controlling the Bezier Points

Click on a point to select it. Draw a rectangle to select multiple points at once. Click and drag on a selected point or its tangents to move them. To add a new point, Ctrl+click on the curve. To delete points, select them and press Del, or alternatively Shift+click on a point. Once a point is selected, you can also use the input coordinates field to modify its position. To display the input coordinates field, either press Enter or right-click on the point and then select Edit point.

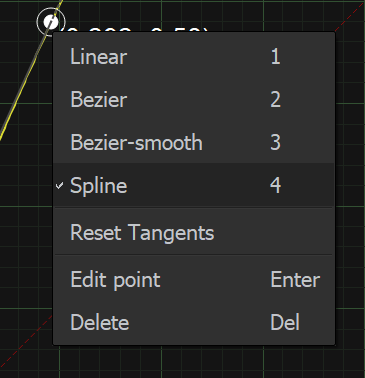

Right-click on a point to bring up a context menu with additional options for that point.


Context Menu

Right-clicking in the curve view brings up a context menu with additional options:

Menu ItemDescription
Zoom allAdjust the curve view so that all points are visible.
Undo/RedoUndo and redo modifications to the curve.
LoadLoad the curve control from a file. Two formats are available: native .bcurve and Photoshop .acv.
SaveSave the curve control to a file. Two formats are available: native .bcurve and Photoshop .acv.
Reset MasterReset the curve control to its default state.
Select internal onlySelect only the points which are currently visible in the curve view.
Select allSelect all points.
Snap to gridToggle snapping to the curve grid. When enabled, moving points snaps them to the grid nodes.

When working with .acv files, some approximations are performed because the curves in the .acv files are described by different mathematical formulas.

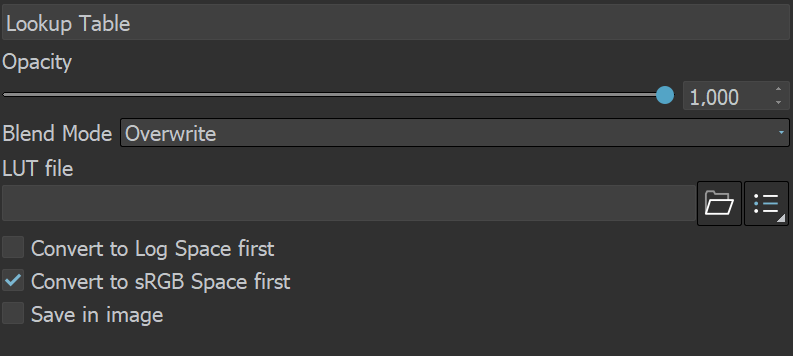

Lookup Table

This correction allows you to remap the image colors based on an IRIDAS .cube LUT (Look-Up Table) file.

Convert to Log Space first – Converts the Base map to a logarithmic color space before applying the look-up table.

Convert to sRGB Space first – Converts the Base map to an sRGB color space before applying the look-up table.

Save in image – Saves/bakes the LUT effect along with the image. This does not affect multi-channel images (such as multi-channel .exr).

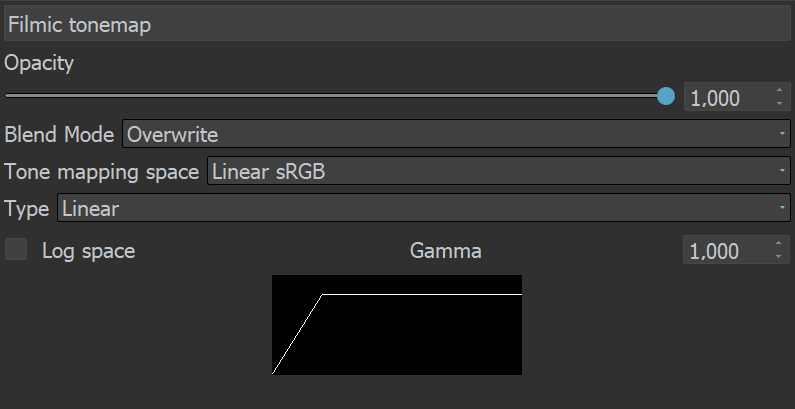

Filmic Tonemap

This correction allows you to control different types of mapping curves, make gamma correction and select a color space. Note that color values are mapped per channel.

Tone mapping space – Specifies the color space where the operator is applied. Converts the image to the selected space and back, if needed. You can choose between Linear sRGB and ACEScg.

Type – Specifies the type of curves used for the tone mapping. You can choose between LinearHejl-DawsonAMPAS (ACEScg)Hable, and Power Curve.

Log space – Converts the image to log space before applying the tone mapping.

Gamma – Specifies the gamma correction. It is applied before the operator.

Use blue fix – Applies an additional transformation to ACEScg primitives that results in pure blues burning out through cyan instead of magenta. Available when Tone mapping is ACEScg.


AMPAS mode applies an approximate ACES standard curve.

Hejl-Dawson Type

Shadows – Shadow compression. Higher values darken the shadows, while also brightening the mid tones.

Highlights – Highlight compression. Higher values reduce burnout.

Hable Type

Shoulder strength – Determines how sharp the shoulder is. Higher values sharpen the shoulder, which results in an overall brighter image.

Linear strength – Determines the strength of the effect from changing Linear angle.

Linear angle – Determines the angle of the curve at the base. Higher values increase the angle.

Toe strength – Low to mid tone compression. Higher values darken the low and mid tones.

White point – The intensity, which gets mapped to 1. This parameter scales the whole curve evenly.

Power Curve Type

Toe length – Determines the range of low to mid tones that are compressed.

Toe strength – Low to mid tone compression. Higher values darken the low and mid tones.

Contrast – Higher values increase the contrast between low and high tones.

Shoulder length – Determines the range of mid to high tones that are compressed.

Shoulder strength – Mid to high tone compression. Higher values darken the mid and high tones.

White point – The intensity, which gets mapped to 1. This parameter scales the whole curve evenly.

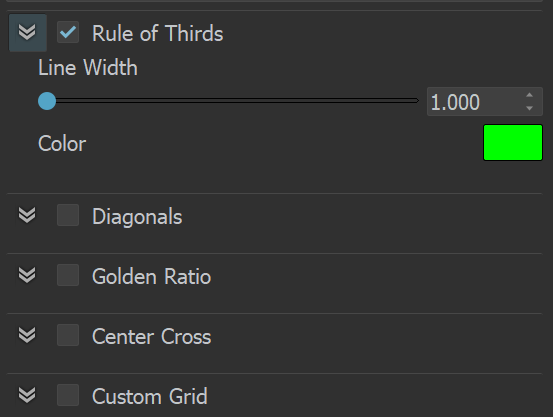

Proportion Guide

The Proportion Guide layer allows for a number of composition guides to be overlaid on the image. The available guides are Rule of ThirdsDiagonalsGolden RatioCenter Cross, and Custom Grid.

Rule of Thirds – Overlays the Rule of Thirds guidelines.

Diagonals – Overlays diagonal guidelines.

Golden Ratio – Overlays the Golden Ratio guidelines

Center Cross – Overlays a center cross guideline.

Custom Grid – Overlays custom grid guidelines. You can specify up to 10 columns and rows of the grid.

For all the guides there is a Line Width option, which can be controlled via a slider or spinners, as well as a Color Swatch to control the color of the lines.

For the Custom Grid Rows guides, there are Rows and Columns options to control the rows/columns of the grid.


  • Color corrections in Linear sRGB mode are applied to all Beauty render elements and some Utility render elements. They are not applied to render elements that present masks or hold geometry or computational data for the rendered frame.
Was this helpful?
