Bounding Box Scattering Rollout

The Bounding Box Scattering rollout is part of the Chaos Scatter parameters.

Parameters

This submenu is only available when the scattering mode is set to 3D - In bounding box.

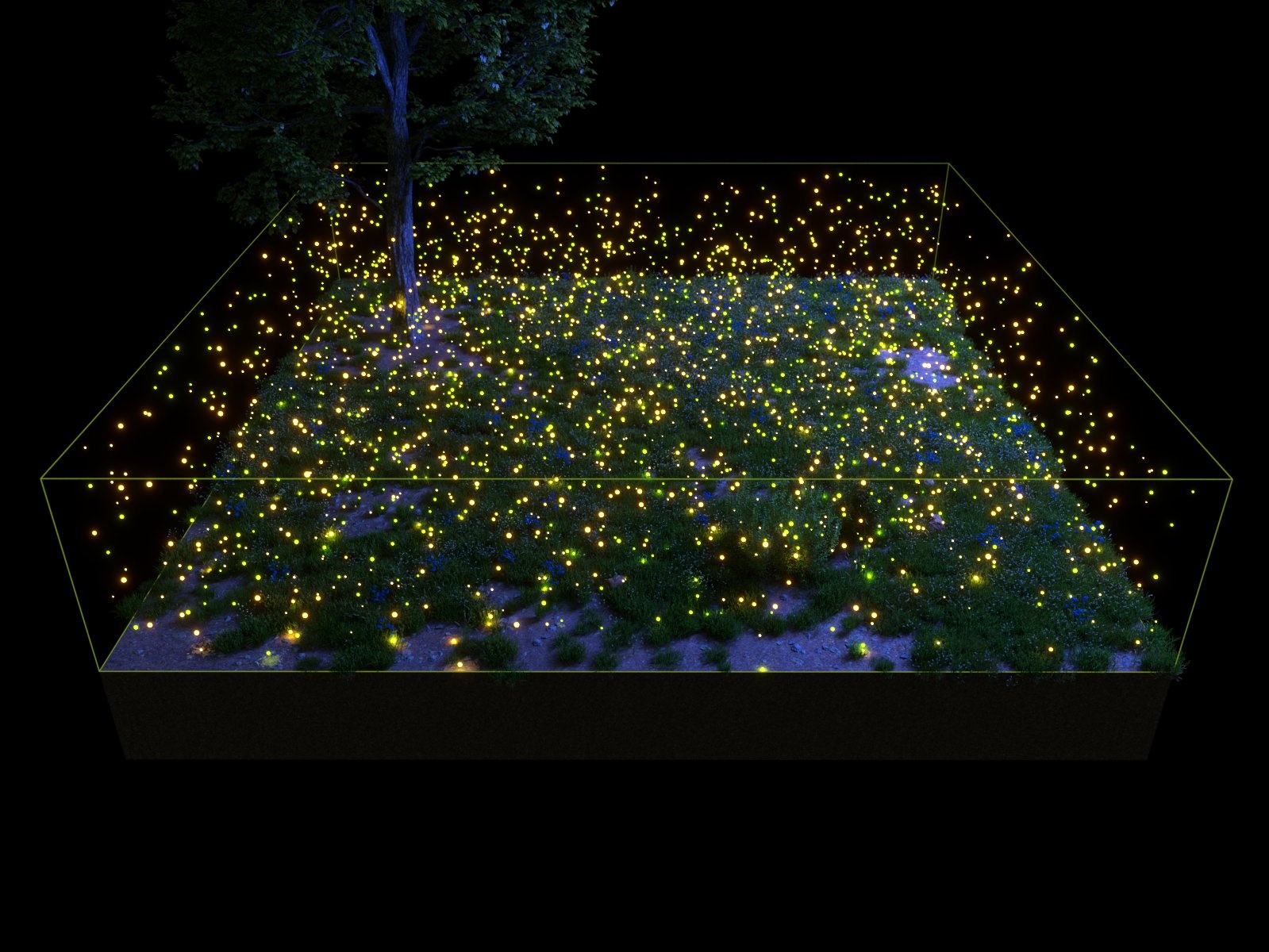

Count – Determines the exact number of instances to scatter. If the Per cube option is enabled, the scattering is defined by the density (Per cube). See the Count example below.

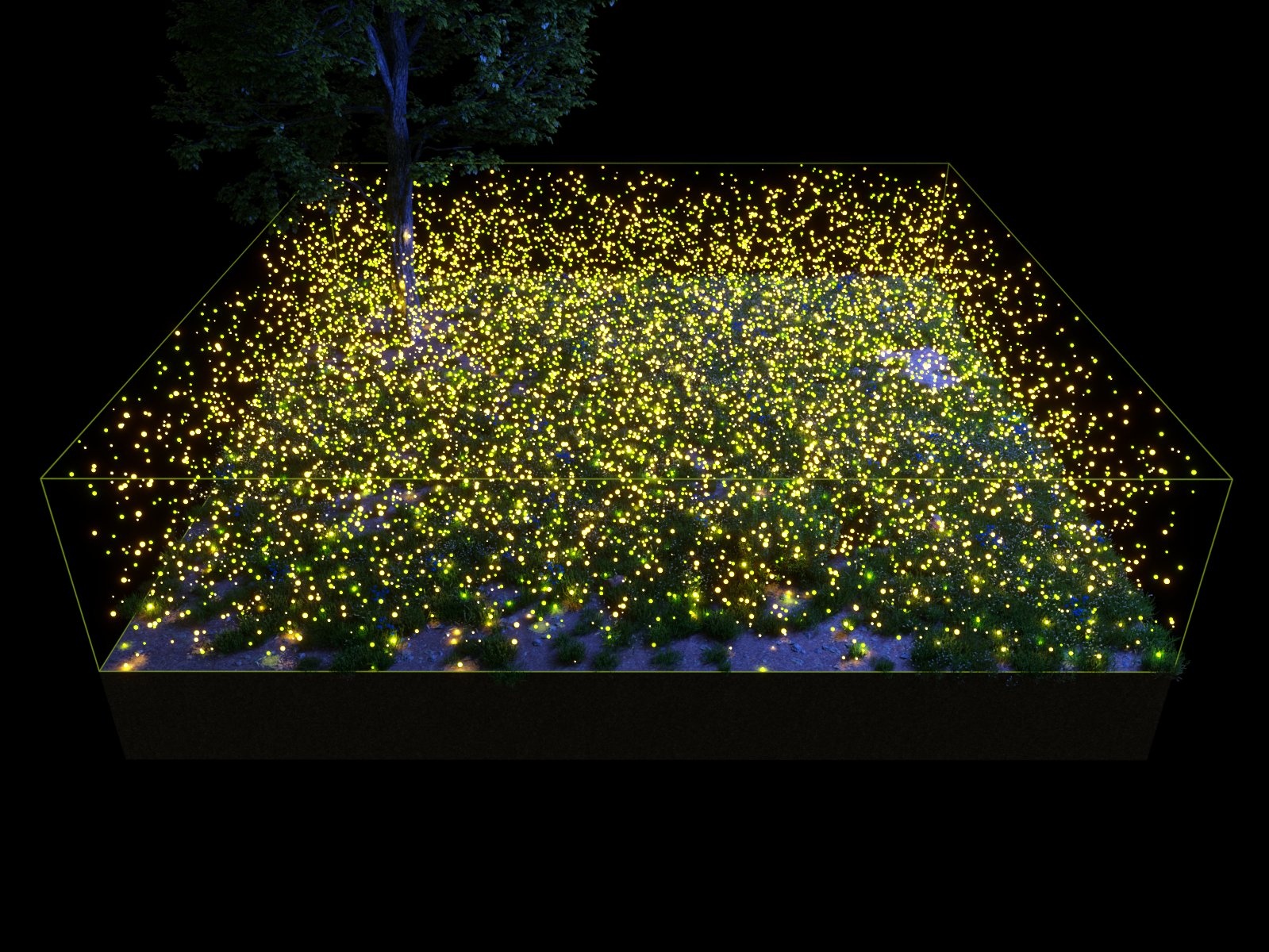

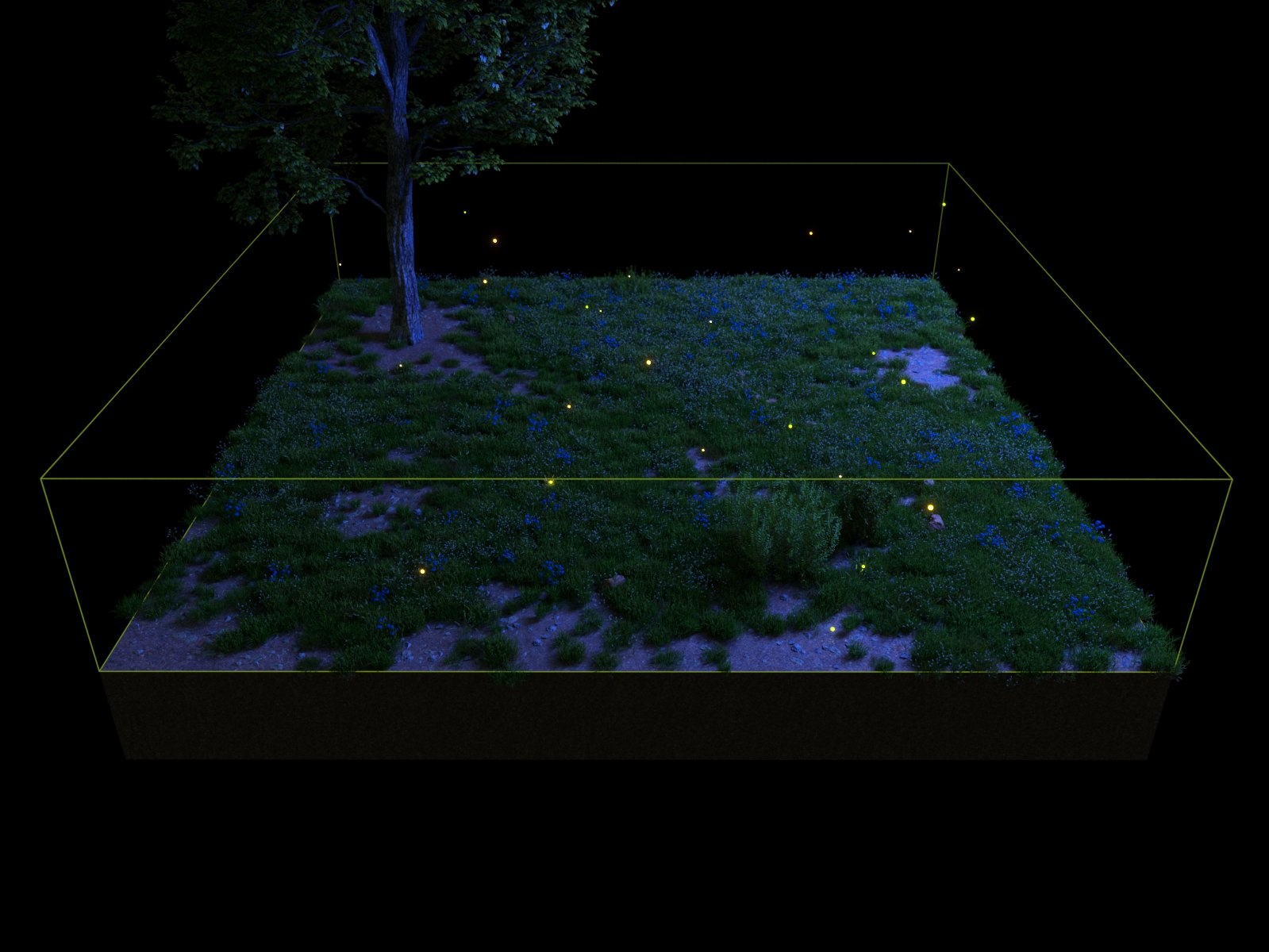

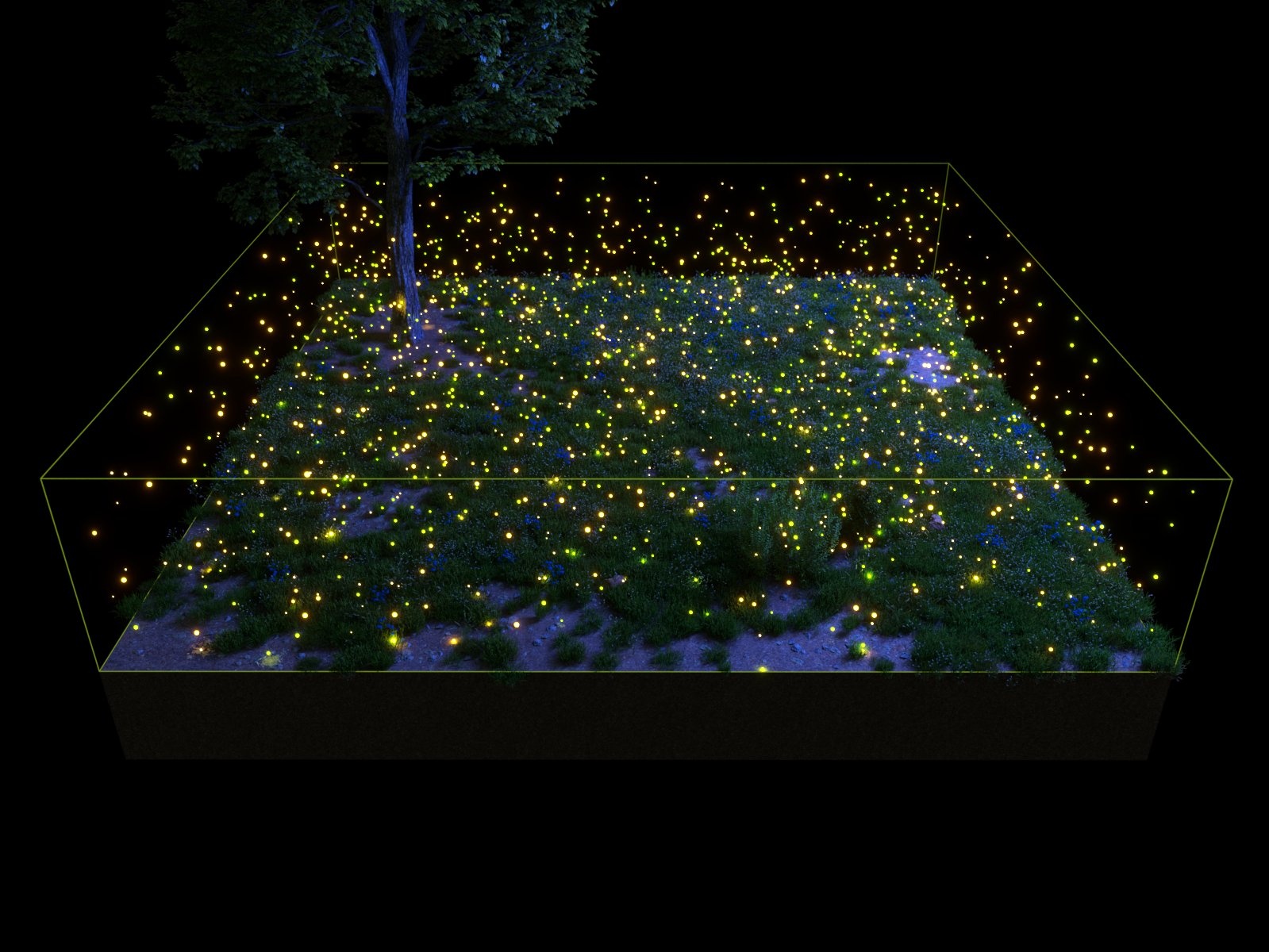

Per cube – When enabled, the Count amount is multiplied by the specified edge length (value next to Per cube). See the Per cube example below.

Edit Instances – Switches to 'Instances' sub-object mode. This allows individual instances to be manipulated. Only the instances visible in the viewport can be edited. This option is only useful for small numbers of instances, otherwise it might cause a crash. If you select 100 or more instances, Chaos Scatter displays a warning. To switch out of this option, click Edit Instances one more time. The edited instances are ignored by the Avoid collisions option, the Include/Exclude splines option, Slope limitation and by Camera clipping.

Keep in mind that if you edit the original model of the scattered instances, after you've edited them, they will be reset back to their original state. To avoid this, edit your instances after finalizing the state of the original model and the Scatter.

Convert to Max geometry – When enabled, converts the Chaos Scatter instances into 3ds Max instances. This option is only useful for small numbers of instances, otherwise it might cause a crash.
