Noise Level

The Noise Level Render Element shows the level of noise in the scene. It is the equivalent of the noiseLevel render element generated by the V-Ray Denoiser. Noise Level is available as a separate render element for situations where it would be useful on its own outside of the V-Ray Denoiser, such as for manual denoising or debugging purposes.

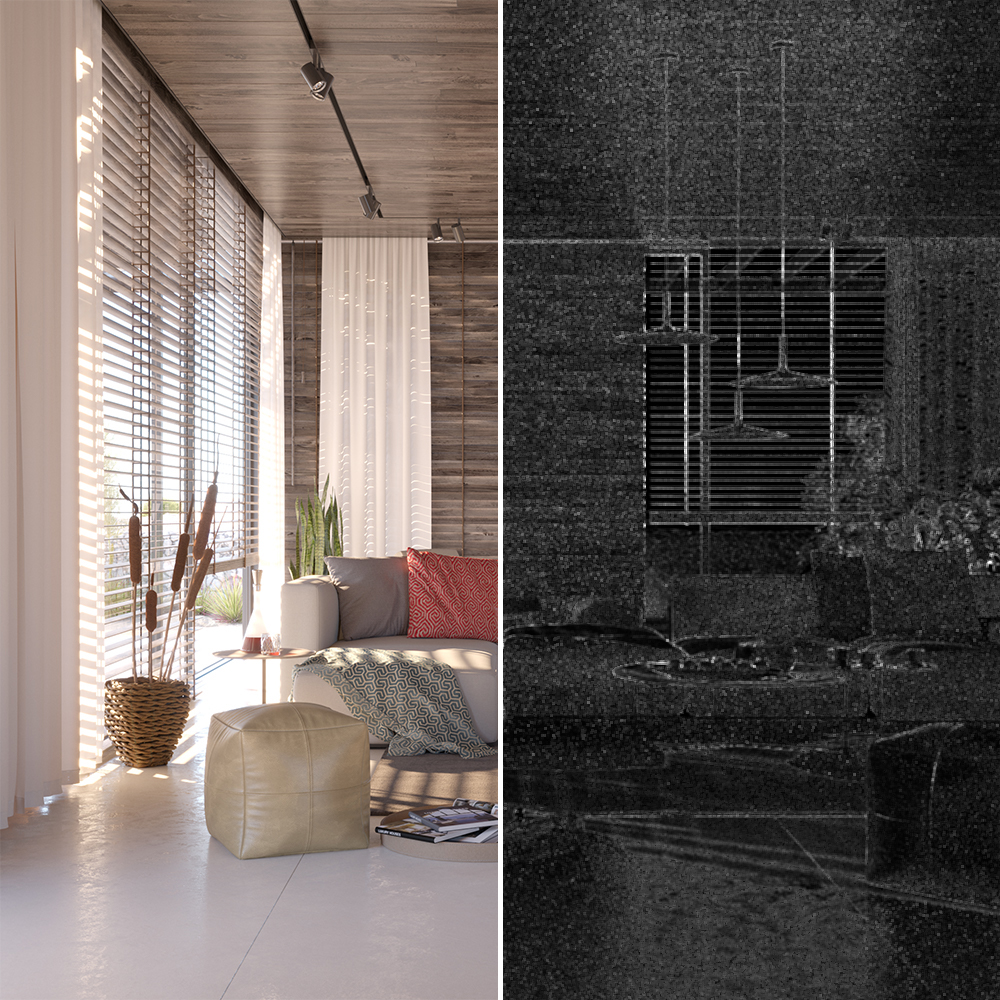

In this render element, black areas indicate no noise, white pixels indicate a great deal of noise in that area, and grey pixels indicate a moderate level of noise.

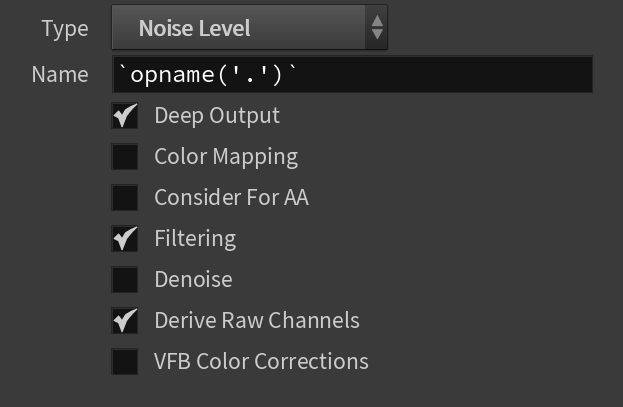

The parameters for this render element appear in the V-Ray RenderChannelColor render channels node.

Deep Output – Specifies whether to include this render element in deep images.

Color Mapping – When enabled, the Color Mapping options in the render settings are applied to the current render channel.

Consider For AA – When enabled, anti-aliasing is used where possible.

Filtering – Applies the image filter to this channel. Image filter settings are in the Image Sampler tab of the Sampler tab of the V-Ray Renderer node.

Denoise – Enables the render element's denoising, provided the V-Ray Denoiser render element is present.

Derive Raw Channels – Generates data in the raw channels by combining the respective color and the filter color channels.

VFB Color Corrections – Applies the post render color adjustments made from the VFB.
