Overview


In addition to the settings in the Render Settings dialog, which are global for the scene, you can set different render settings on a per-object basis. Some of those properties (primary and secondary visibility, visibility to camera, etc.) are accessible through the additional V-Ray Object Properties.

UI paths:

||Select object(s)|| > V-Ray Shelf > Object Properties

||Select object(s)||V-Ray menu > Object Properties > Common


Parameters


Renderable – When enabled, the instance is not rendered. The object's properties can still be queried from within VEX but no geometry is rendered. This is roughly equivalent to turning the object into a transform space object.

User Attributes – A list of attributes (separated by semicolons) that are assigned to the mesh.

Object ID – Specifies an ID for the object. This is used by the MultiMatte render element which creates selection masks based on Object IDs.

Num. Samples – Specifies the number of motion blur samples. If the value is set to 0, the ROP settings are used.



Mesh

Geometry Type – Determines the type of geometry for polygonal data among DefaultStatic and Dynamic.

Instancing

Use Rayserver Instancer (WIP) – When enabled, uses the GeomRayserverInstancer node instead of Instancer2 node.

Force Rayserver Instances – When enabled, wraps instances into GeomLocalRayserver node.

Shading

SSS ID – Used to tell V-Ray SSS and V-Ray Skin materials that objects with the same ID need to share the same illumination samples when using raytraced multiple scattering. This avoids illumination seams between those objects.

Forced Attributes – Specifies a list of attributes to be exported to the .vrscene file even if they are not used by any V-Ray shading node. This optimizes the export speed and reduces the size of the .vrscene file. Forced Attributes parameter is useful when instancing lights with per-point attributes for light color and light intensity.





Open Subdiv


Enable OpenSubdiv – Enables OpenSubdiv subdivision.

Subdivision level – Specifies the level of OpenSubdiv subdivision. A value of 0 means no subdivision.

Type – Specifies the type of OpenSubdiv among Loop and Catmull Clark.

Subdivide UVs – When enabled, smooths UVs when applying subdivision with OpenSubdiv.

Preserve map borders – Specifies different modes for subdividing the UV boundaries with OpenSubdiv from NoneInternal, and All.

Preserve geometry borders – When enabled, keeps the geometry boundaries in place while subdividing the mesh with OpenSubdiv.

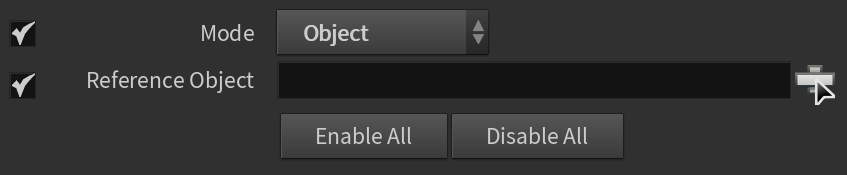

Reference Mesh


Mode – Specifies the mode of locking the Tri-Planar mapping. You can choose between Object (uses another object as reference) and Rest Attributes (uses an attribute of the object as reference).

Reference Object – Specifies the object used as reference to lock the Tri-Planar mapping when Object mode is selected.

Position – Specifies the position when Rest Attributes mode is selected.

Normal – Specifies the normals when Rest Attributes mode is selected.





Bake Geometry


Bake Subdivision – Enables baking of objects that have displacement or subdivision. If objects have displacement, they are baked as subdivided/displaced object in a .vrmesh file during rendering.

File (.vrmesh) – Specifies an output directory where the generated .vrmesh file is placed.

Edge length –Specifies the edge length.

Max Subdivision – Specifies the maximum subdivision.





Matte/Shadow


Enable Wrapper – Enables the Matter/Shadow options.

Main

Generated GI Mult. – Specifies a multiplier for the amount of GI generated by the material.

Received GI Mult. – Specifies a multiplier for the amount of GI received by the material.

Generated Caustics Mult. – Specifies a multiplier that controls how much caustics the object generates. Note that in order to generate caustics, an object must have a reflective or refractive material.

Received Caustics Mult. – Specifies a multiplier that controls how much caustics the object receives. When light is refracted by objects that generate caustics, the resulting caustics are only visible when they are projected on caustics receivers.

Subdivs Mult. – Specifies a multiplier for the subdivisions of all secondary ray tracing done for the particular surface.

Use Irradiance Map – When enabled, the irradiance map is used to approximate diffuse indirect illumination for the object. If disabled, brute force GI is used. You can use this for objects in the scene which have small details and are not approximated very well by the irradiance map.

Matte Properties

Alpha Contribution – Determines the appearance of the object in the alpha channel of the rendered image. A value of 1.0 means the alpha channel is derived from the transparency of the base material. A value of 0.0 means the object does not appear in the alpha channel at all and shows the alpha of the objects behind it. A value of -1.0 means that the transparency of the base material cuts out from the alpha of the objects behind. Matte objects are typically given an alpha contribution of -1.0. Note that this option is independent of the Matte surface option (i.e. a surface can have an alpha contribution of -1.0 without being a matte surface).

Generate Render Elements – When enabled, V-Ray generates zDepthvelocityextra tex, and multi matte render element for matte objects. When this check box is disabled V-Ray does not generate any render elements for matte objects.

Matte Surface – When enabled, makes the material appear as a matte material, which shows the background instead of the base material when viewed directly. Note that the base material is still used for things like GI, caustics, reflections, etc.

Shadows – When enabled, makes shadow visible on the matte surface.

Affect Alpha – When enabled, makes shadows affect the alpha contribution of the matte surface. Areas in perfect shadow produce white alpha, while completely unoccluded areas produce black alpha.

Shadow Tint – Specifies an optional tint for the shadows on the matte surface.

Shadow Brightness – An optional brightness parameter for the shadows on the matte surface. A value of 0.0 makes the shadows completely invisible, while a value of 1.0 shows the full shadows.

Reflection Amount – Shows the reflections from the base material.

Refraction Amount – Shows the refractions from the base material.

GI Amount – Determines the amount of GI shadows.

No GI On Other Mattes – When enabled, causes the object to appear as a matte object in reflections, refractions, GI, etc. for other matte objects. Note that if this is on, refractions for the matte object might not be calculated (the object appears a matte object to itself and is not able to "see" the refractions on the other side).

Matte For Secondary... – Normally the base material is used when an object with a MtlWrapper is seen through reflections/refractions. This option controls whether the MtlWrapper shows the base material or environment when seen through secondary rays (e.g. reflections/refractions).

Disable – The base material is used when the MtlWrapper is seen through reflections/refractions.
Without Projection Mapping – The environment is seen through reflections/refractions.
With Projection Mapping – The environment is seen through reflections/refractions with projection mapping to increase the realism.

Misc

GI Surface ID – This number can be used to prevent the blending of Light Cache samples across different surfaces. If two objects have different GI surface IDs, the light cache samples of the two objects are not blended. This can be useful for preventing light leaks between objects of vastly different illumination.

Trace Depth – Specifies the number of times a ray can be reflected. Scenes with lots of reflective and refractive surfaces may require higher values to look correct. A value of -1 specifies this option is controlled by the global Render Settings.

Volume GI properties

Generate GI – Controls whether the object generates indirect illumination. Note that to obtain the caustics effect you must set the appropriate value for the Caustics multiplier below as well as put some objects that generate caustics in the scene.

Receive GI – Controls whether the object receives indirect illumination. A multiplier can be specified for the received indirect illumination.

Generate GI multiplier – A multiplier for the amount GI generated by the material.

Receive GI multiplier – A multiplier for the amount GI received by the material.

Generate Caustics – When enabled, the selected objects refract the light coming from light sources that are caustics generators, so that caustics are produced. Note that in order to generate caustics, an object must have a reflective or refractive material.

Receive Caustics – When enabled, the selected objects become caustic receivers. When light is refracted by objects that generate caustics the resulting caustics are only visible when they are projected on caustics receivers.

Caustics multiplier – A multiplier for the caustics.

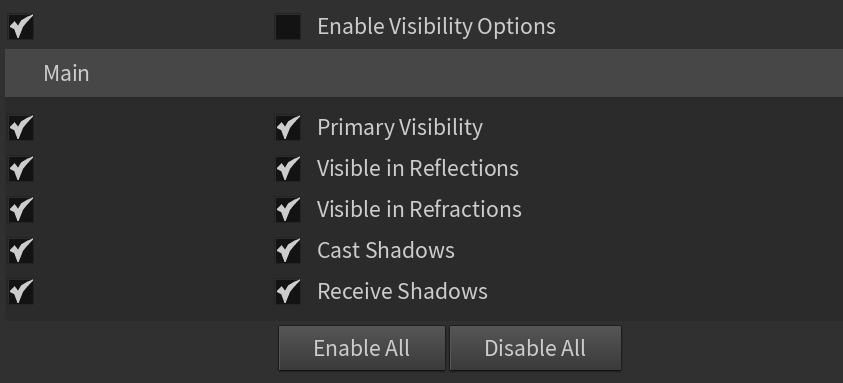

Visibility Options


Enable Visibility Options – Enables the Visibility Options.

Primary Visibility – When disabled, the object appears perfectly transparent to camera rays.

Visible in Reflections – When disabled, the object appears perfectly transparent to reflection rays.

Visible in Refractions – When disabled, the object appears perfectly transparent to refraction rays.

Cast Shadows – When disabled, the object is invisible to shadow rays from lights and does not cast shadows.

Receive Shadows – When disabled, the object does not receive shadows.





Notes


  • When creating a matte object with V-Ray Object Properties and using the V-Ray CUDA engine, please note the following:

    • Alpha Contribution should be set to -1.0;
    • The Matte Surface, Affect Alpha and Shadows options should be enabled.
