The Refraction tab is part of the V-Ray Material parameters.

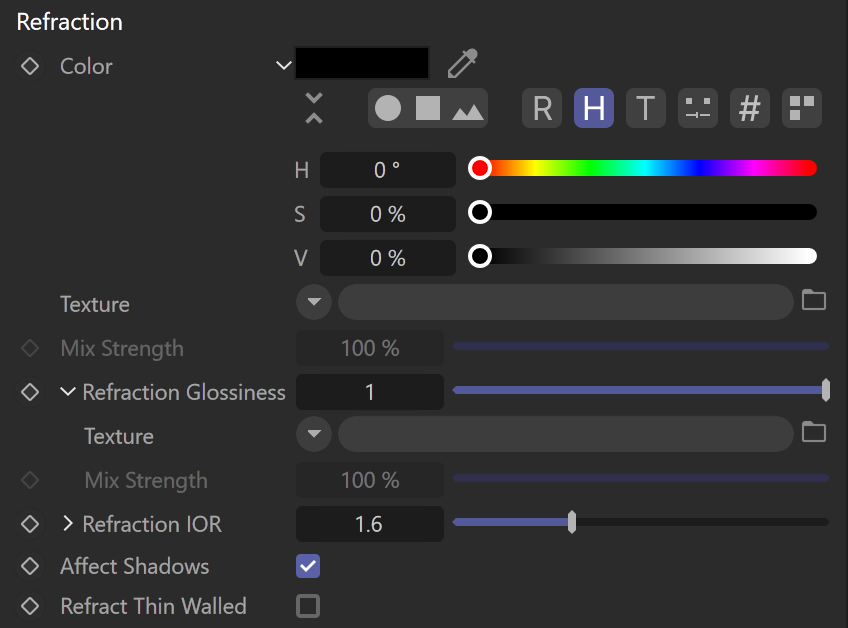

Refraction



Color – Specifies the refraction color of the material. Note that the actual refraction color depends on the Reflection Color as well. See the Refraction Color example for more information.

Texture – A texture map can be specified here for the refraction.

Mix Strength – Specifies a blend amount between the texture map and the reflection color.

Refraction Glossiness – Controls the sharpness of refractions. A value of 1.0 creates perfect glass-like refraction; lower values produce blurry or glossy refractions. See the Refraction Glossiness example for more information.

Texture – Specifies a texture file to be used for the refraction glossiness.

Mix Strength – Specifies a blend amount between the texture map and the refraction glossiness value.

Refraction IOR –  Index of refraction for the material, which describes the way light bends when crossing the material surface. A value of 1.0 means that the light does not change direction when hitting the material surface. See the Refraction IOR example for more information. A texture can be attached to this slot.

Affect Shadows – This parameter causes the material to cast transparent shadows. This creates a simple caustics effect, dependent on the refraction color and the fog color. Note: For accurate caustic calculations, disable this parameter and instead enable Caustics. Simultaneous usage of both Caustics and Affects Shadows can be used for artistic purposes but does not produce a physically correct result.

Refract Thin Walled – When enabled, the Fog Scattering mode is set to SSS. It simulates thin translucent surfaces such as soap bubble, leaves, curtains, etc. The SSS Color defines the backside color, while the SSS Amount controls the translucency effect.








Example: Refraction Color


This example demonstrates the effect of the Refraction Color parameter when creating glass materials. For the images in this example, the material has a gray Diffuse color, white Reflect color, and the Fresnel Reflections option is enabled.

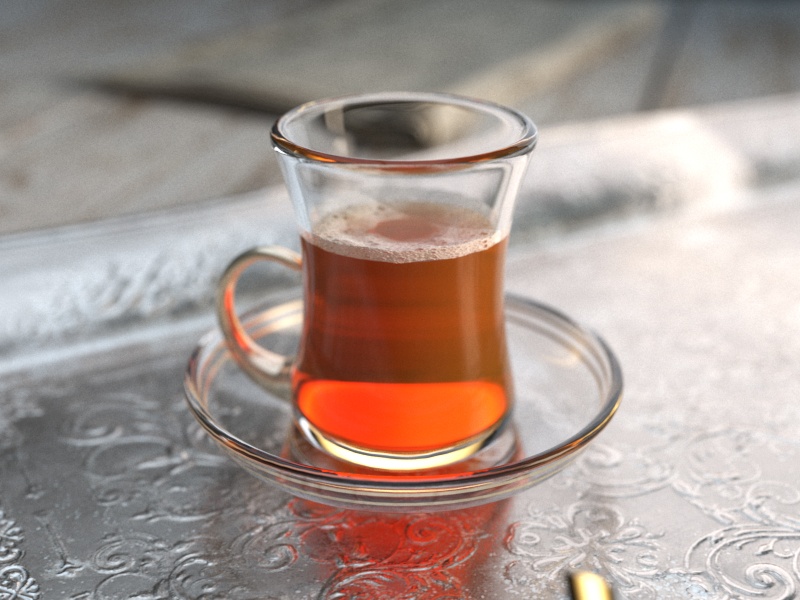

Example: Refraction IOR


This example demonstrates the effect of the Refraction IOR parameter. Note how light bends more as the IOR deviates from 1.0. When the index of refraction (IOR) is 1.0, the render produces a transparent object. Note: in the case of transparent objects, it might be better to assign an opacity map to the material, rather than use refraction.



Refraction Color = 0, 0, 0


Refraction Color = 26, 26, 26


Refraction Color = 51, 51, 51


Refraction Color = 77, 77, 77


Refraction Color = 102, 102, 102


Refraction Color = 128, 128, 128


Refraction Color = 153, 153, 153


Refraction Color = 179, 179, 179


Refraction Color = 204, 204, 204


Refraction Color = 230, 230, 230


Refraction Color = 255, 255, 255

Black (0, 0, 0)
White (255, 255, 255)


Refraction IOR =0.80


Refraction IOR = 1.00


Refraction IOR = 1.20


Refraction IOR = 1.40


Refraction IOR = 1.60


Refraction IOR = 1.80


Refraction IOR = 2.00


Refraction IOR = 2.20


Refraction IOR = 2.40


Refraction IOR = 2.60


Refraction IOR = 2.80

0.80
2.80

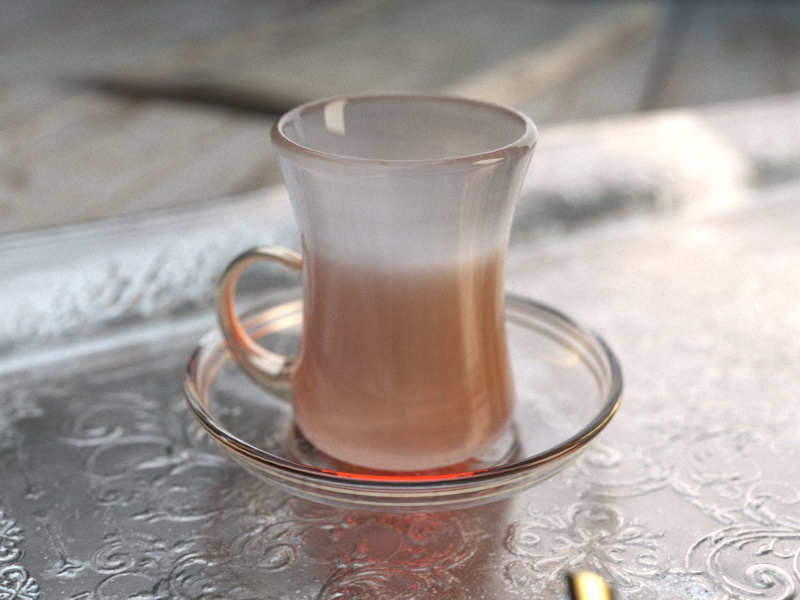

Example: Refraction Glossiness

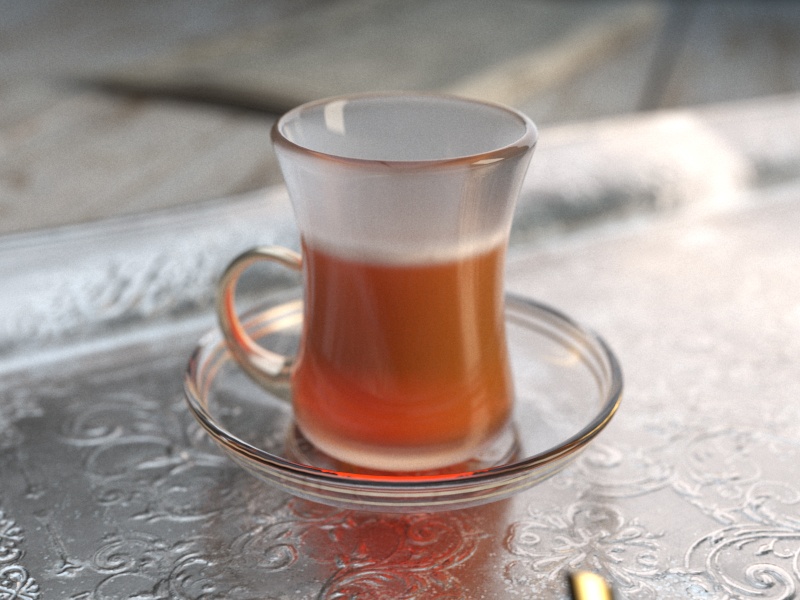

This example demonstrates the effect of the Refraction Glossiness parameter. Note how lower Refraction Glossiness values blur the refractions and cause the material to appear as frosted glass.



Refraction Glossiness = 0.0


Refraction Glossiness = 0.1


Refraction Glossiness = 0.2


Refraction Glossiness = 0.3


Refraction Glossiness = 0.4


Refraction Glossiness = 0.5


Refraction Glossiness = 0.6


Refraction Glossiness = 0.7


Refraction Glossiness = 0.8


Refraction Glossiness = 0.9


Refraction Glossiness = 1.0

0.0
1.0

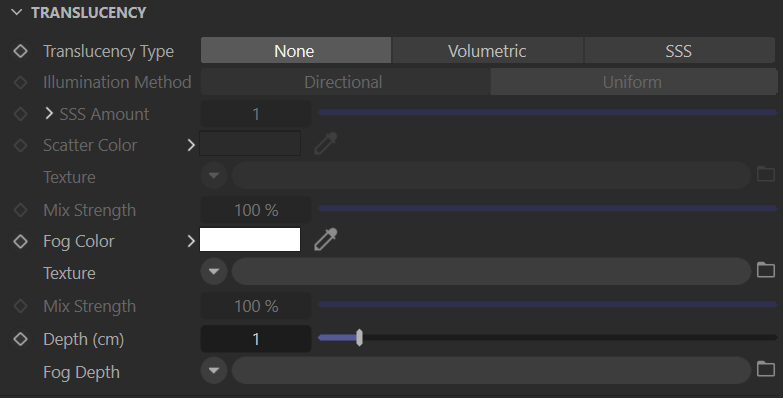

Translucency



The new translucency modes require GI with minimum 16 bounces (Brute force or Light cache). They also require the Affect shadows option of the material to be enabled.





BF + LC (correct result)


GI is disabled


BF + None


BF+BF (3 bounces)


As the new translucency modes perform multibounce volumetric light scattering, they require closed objects.


Translucency Type
– Selects the algorithm for calculating translucency (also called sub-surface scattering). Note that Refraction must be enabled for this effect to be visible.

None – When selected, the only available parameters are the Fog Color and Fog Depth. Together with the Refraction color, they determine the attenuation of light as it passes through the material. In this mode, there is no subsurface scattering.
Volumetric – Works together with the Refraction Color to scatter light inside the object. This is useful for liquids and other highly transparent materials. The Refraction Color and Refraction Glossiness determine respectively how much of the interior of the object is visible and how rays interact with the object’s surface.
SSS – Works independently of the Refraction Color/Glossiness and is useful for skin, wax, marble and other relatively opaque materials.

With V-Ray 5, update 1, the translucency modes for the V-Ray Material are updated based on the volumetric random walk code, originally developed for the VRayScatterVolume material. However, the implementation in the V-Ray Material is updated and slightly more advanced compared to VRayScatterVolume. The old translucency modes are still there and do appear, if a scenes with a V-Ray Material, that uses one of them, is loaded. With newly created materials, only the new two modes are available.


Illumination Method –Determines how direct illumination is computed for sub-surface scattering.

Directional – The directional method tends to propagate more light in the direction, from which the surface is lit.
Uniform – The uniform method spreads light more uniformly inside the material. Note that it is not supported on V-Ray GPU.

The Directional method requires the Affect Shadows option to be enabled, to allow shadows to extend below the surface.


None

Fog color – The attenuation of light as it passes through the material. This option helps simulate the fact that thick objects look less transparent than thin objects. Note that the effect of the fog color depends on the absolute size of the objects and is therefore scene-dependent. See the Fog color example for more information. This parameter can be mapped with a texture.

Depth (cm) – Controls the strength of the fog effect. Higher values reduce the effect of the fog, making the material more transparent. Smaller values increase the fog effect, making the material more opaque. See the Depth example for more information.

The Depth (cm) parameter replaces the previous Fog multiplier with an easier to control value in centimeters.

Expand for example with None...

For this example the Refraction Color is set to #FFFFFF and the Fog Color is set to #099E9E. The Translucency Type is set to None and the Depth is set to 50cm.





Volumetric

SSS Amount – Blends between full scattering and pure refraction.

Scatter Color – Controls the scattering. This parameter can be mapped with a texture. See the Scatter color example for more information.

Fog Color – Controls the absorption of the material. This parameter can be mapped with a texture. See the Fog color example for more information.

Depth (cm) – Controls the strength of the fog effect. Higher values reduce the effect of the fog, making the material more transparent. Smaller values increase the fog effect, making the material more opaque. See the Depth example for more information.


Expand for Volumetric example...

In this example, The Diffuse Color is set to #999999, and the Fog Color is set to #099E9E. The Translucency Type is set to Volumetric. The Illumination Method is set to Uniform. The Depth is set to 5cm.



SSS amount = 1



SSS amount = 0.75

SSS amount = 0.5

SSS amount = 0.25

SSS amount = 0



SSS

SSS amount – Blends between the diffuse color of the material and the SSS effect by reducing the diffuse component of the material and replacing it with the sub-surface scattering effect.

SSS color – Determines the overall surface appearance. This parameter can be mapped with a texture.

Scatter radius – Controls how far each of the red/green/blue components travels inside the volume. This parameter can be mapped with a texture.

Scale (cm) – Controls the strength of the SSS effect.

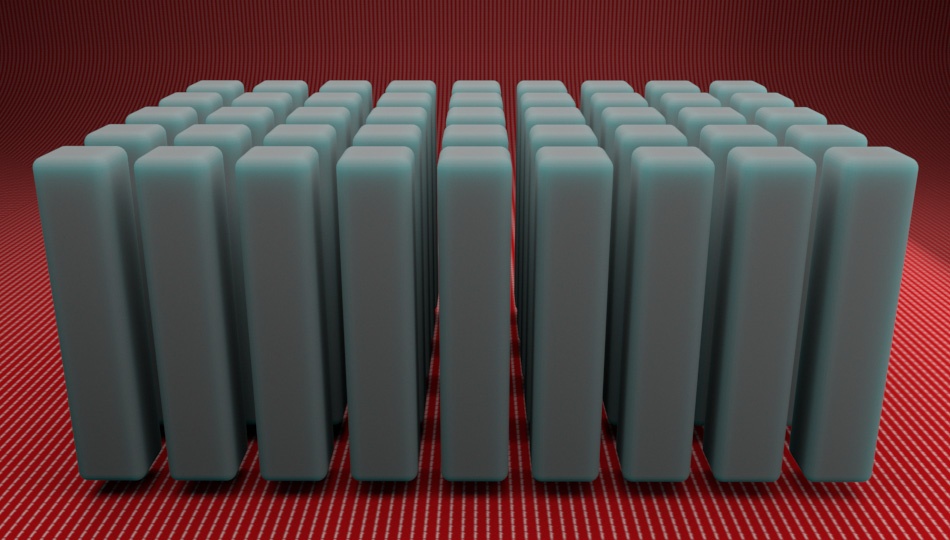

Expand for SSS example...

For this example, the material's Diffuse Color is set to #999999 and the Fog Color is set to #099E9E. The Translucency Type is set to SSS. Illumination Method is Directional. The Scale is set to 100cm. All other options are left at their default values. Reducing the SSS Amount decreases the sub-surface scattering, leaving only the Diffuse Color visible.



SSS amount = 1

SSS amount = 0.75

SSS amount = 0.5

SSS amount = 0.25

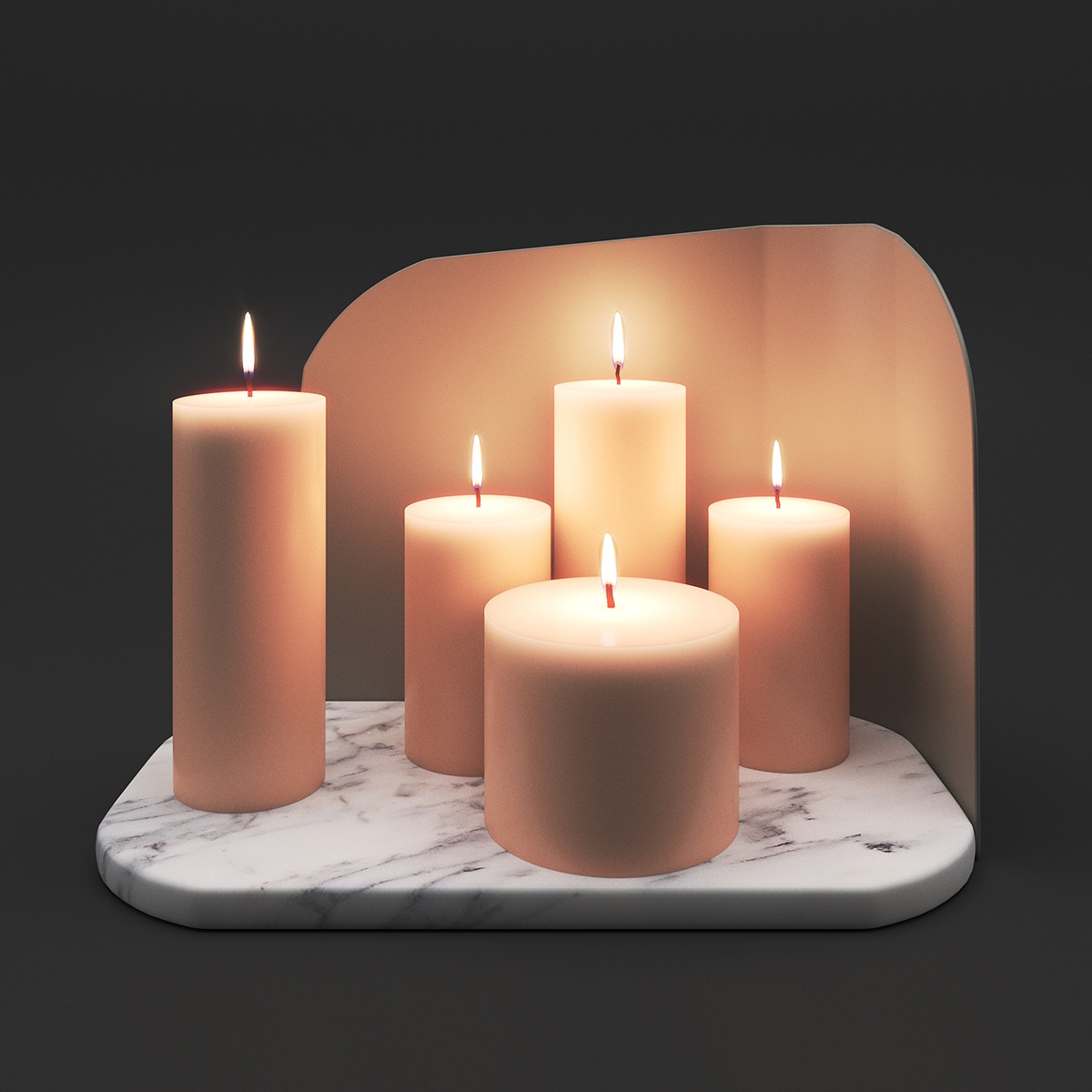

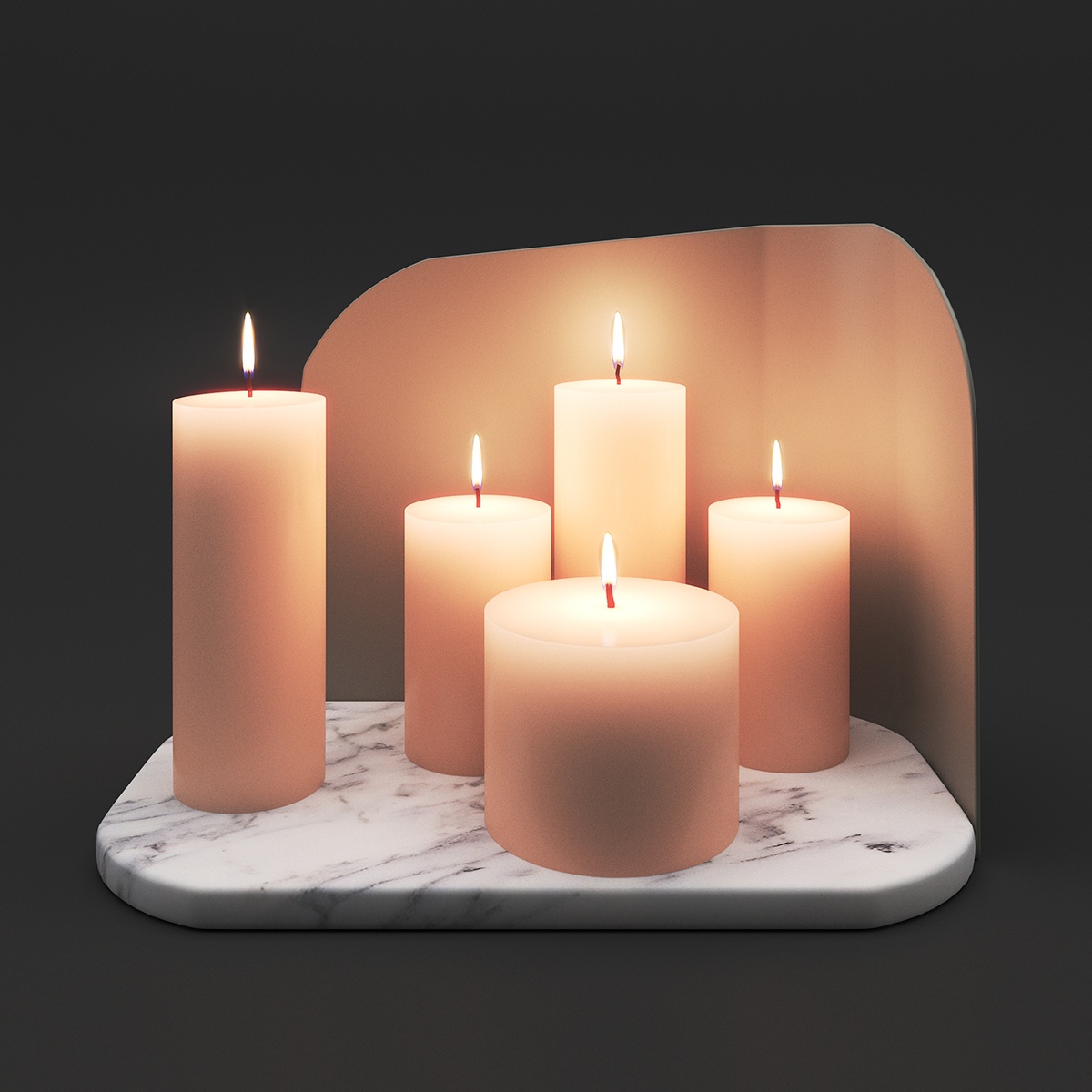

Expand for Scale example...


Scale (cm) = 1 cm

Scale (cm) = 2 cm

Scale (cm) = 5 cm

Scale (cm) = 10 cm

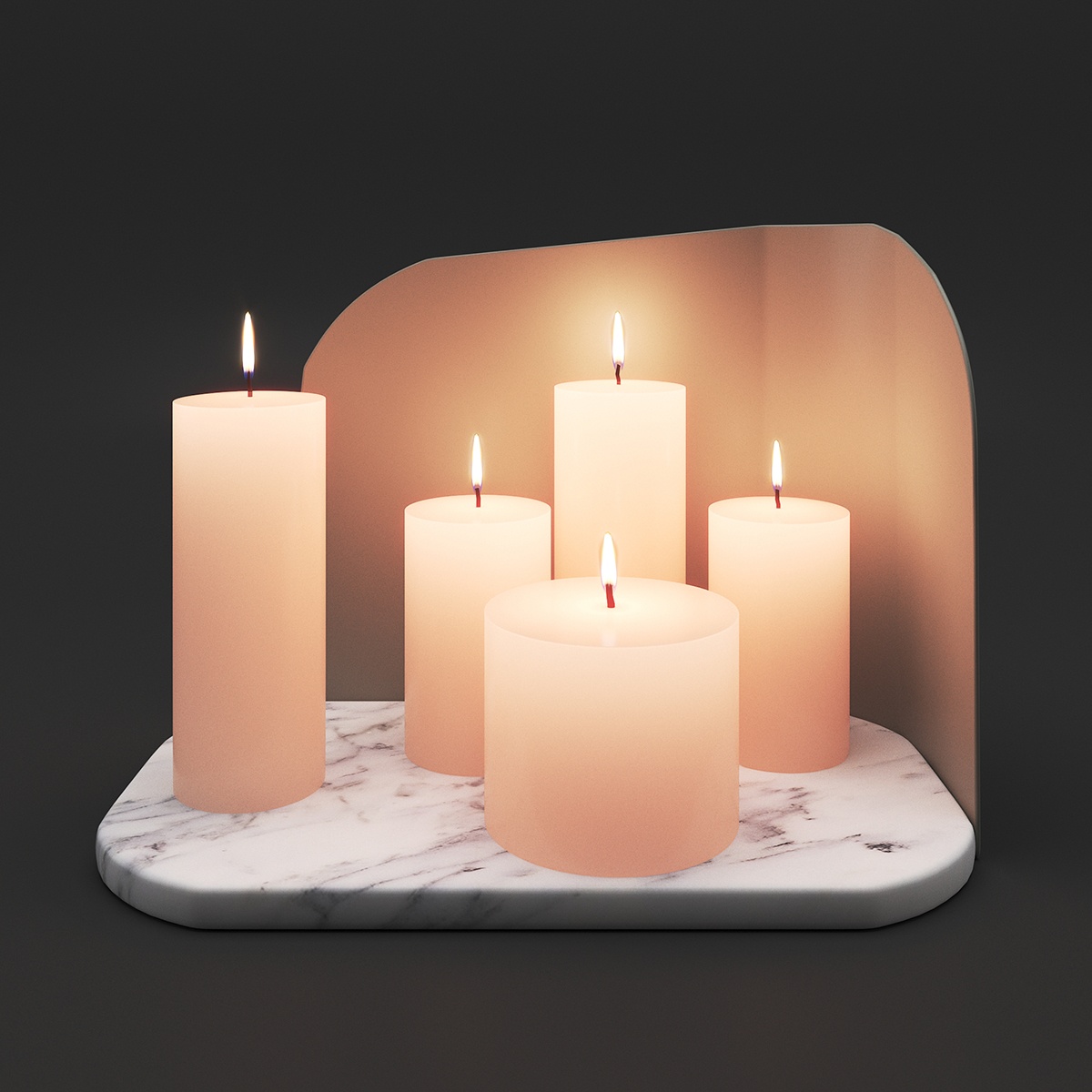

Scale (cm) = 15 cm








Example: Depth


This example demonstrates the effect of the Depth parameter. Translucency is set to None.

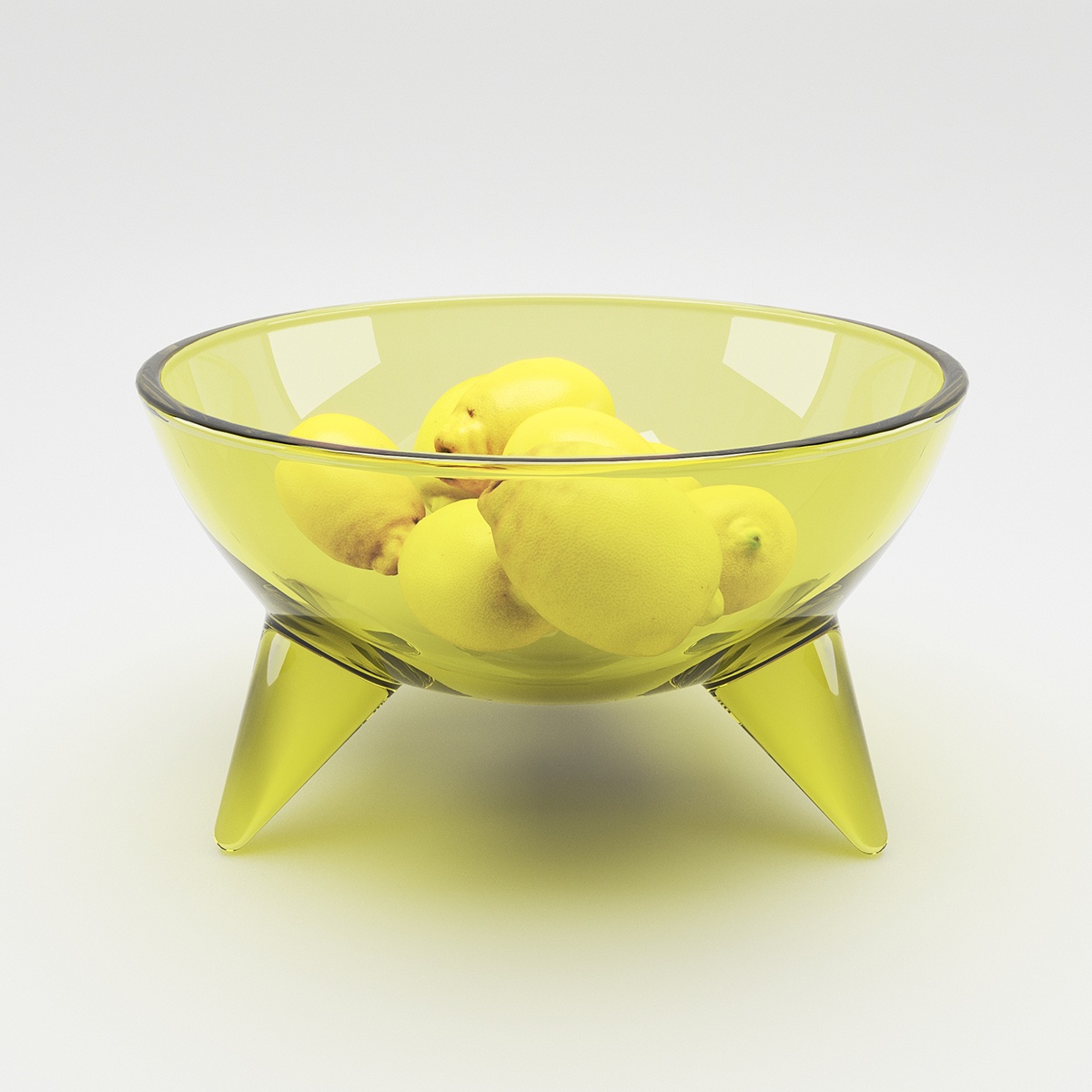

Example: Fog Color


This example demonstrates the effect of the Fog Color parameter. Notice that we are only changing the hue value of the Fog color. Translucency is set to None.




Depth = 5

Depth = 2

Depth = 0.5

Depth = 0.2

Depth = 0.1



Fog Color (HSV) Hue = 42

Fog color (HSV) Hue = 245

Fog color (HSV) Hue = 128

Fog color (HSV) Hue = 196

Fog color (HSV) Hue = 17

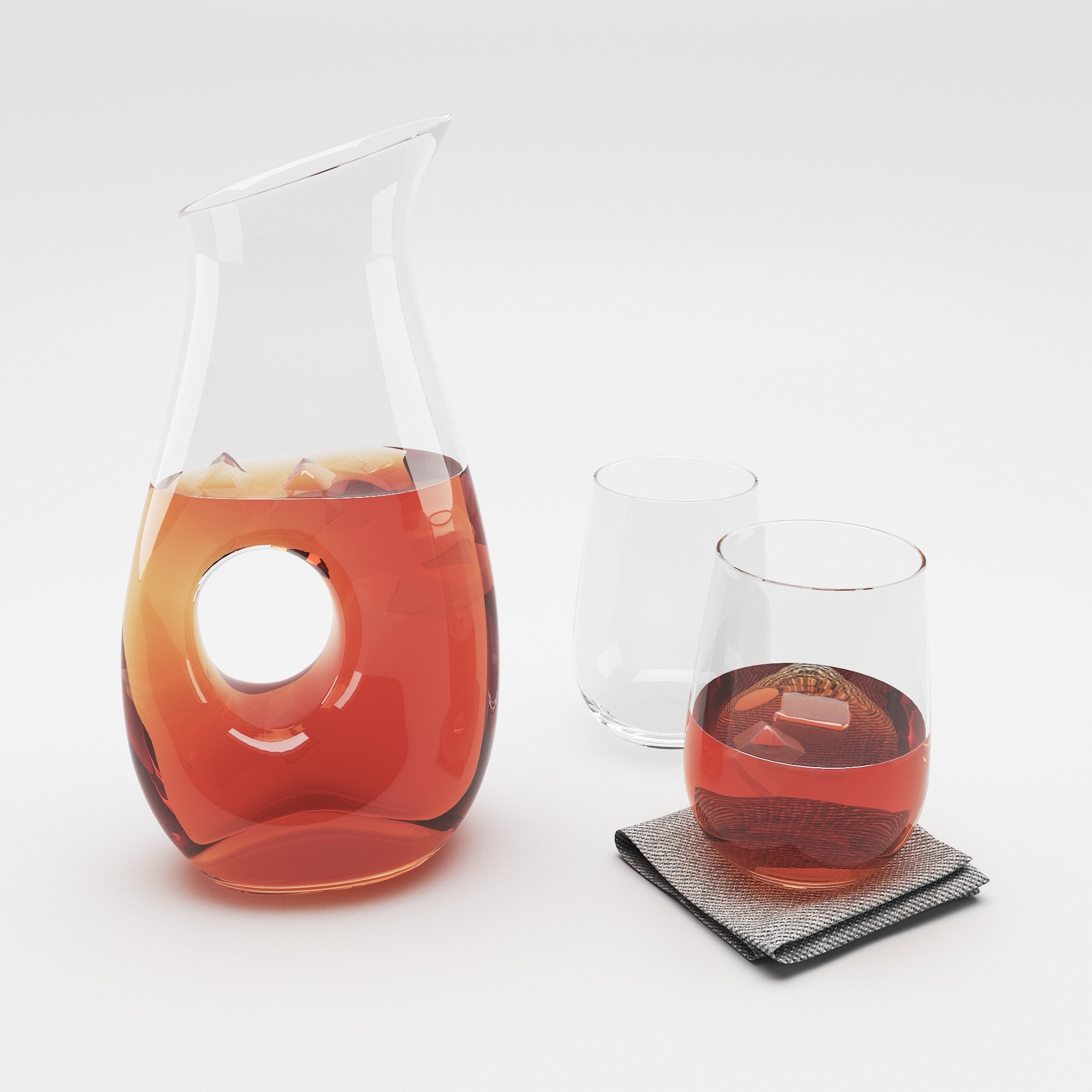

Example: Scatter Color



This example demonstrates the effect of the Scatter Color parameter. Translucency is set to Volumetric.


Scatter Color = RGB (250, 20, 30)

Scatter Color = RGB (220, 115, 22)

Scatter Color = RGB (240, 202, 23)

Scatter Color = RGB (250, 236, 5)

Scatter Color = RGB (49, 1, 1)







How to use the new V-Ray Material translucency


See this quick how-to video for further details on how to use the translucency parameters.


Refraction Advanced



Trace Refractions – Enables refractions for the current material.

Max Depth – The number of times a ray can be refracted. Scenes with lots of refractive and reflective surfaces may require higher values to look correct. See the Max Depth example for more information.

Affect Alpha – Allows the user to specify which channels are going to be affected by the transparency of the material.

Color Only – The transparency affects only the RGB channel of the final render. This is the default value.
Color+alpha – This mode causes the material to transmit the alpha of the refracted objects, instead of displaying an opaque alpha.
All channels – All channels and render elements are affected by the transparency of the material.

When selecting the Affect All channels option, be aware that the information of the respective component affects all render elements. In this case, the Beauty composition does not match the RGB result from the renderer.

Enable Dispersion –  Enables the calculation of true light wavelength dispersion.

Aberration – Allows the user to increase or decrease the dispersion effect. Lowering it widens the dispersion and vice versa. See the Aberration example for more information.

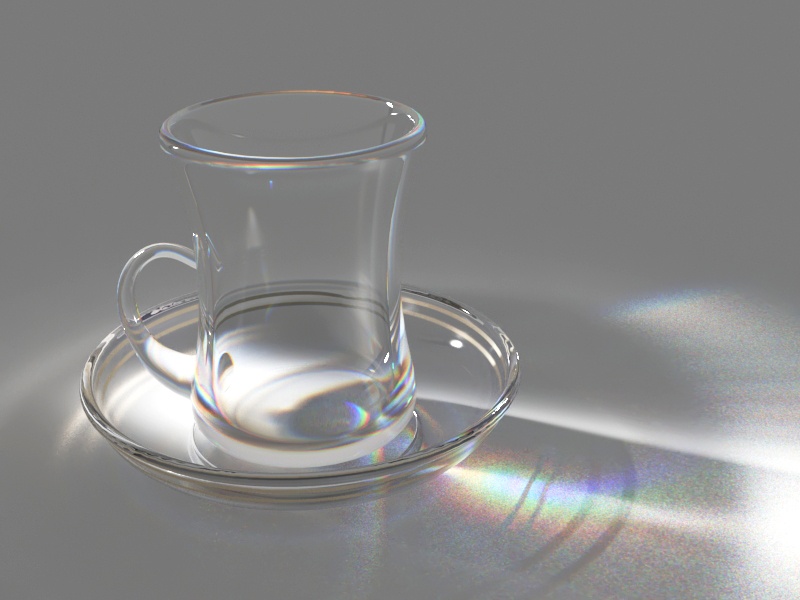

Example: Aberration


This example demonstrates the dispersion capabilities of the V-Ray Material and the effect of the Abberation parameter.


 Example: Refraction Depth

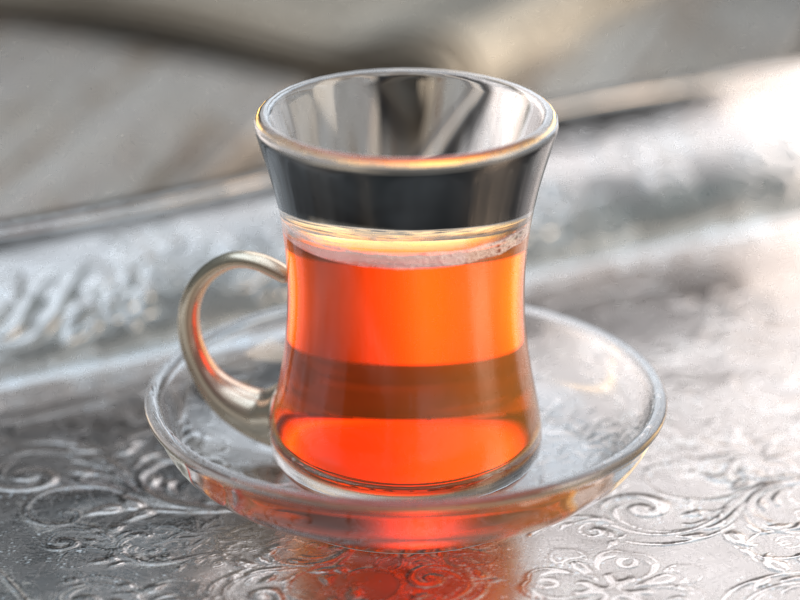

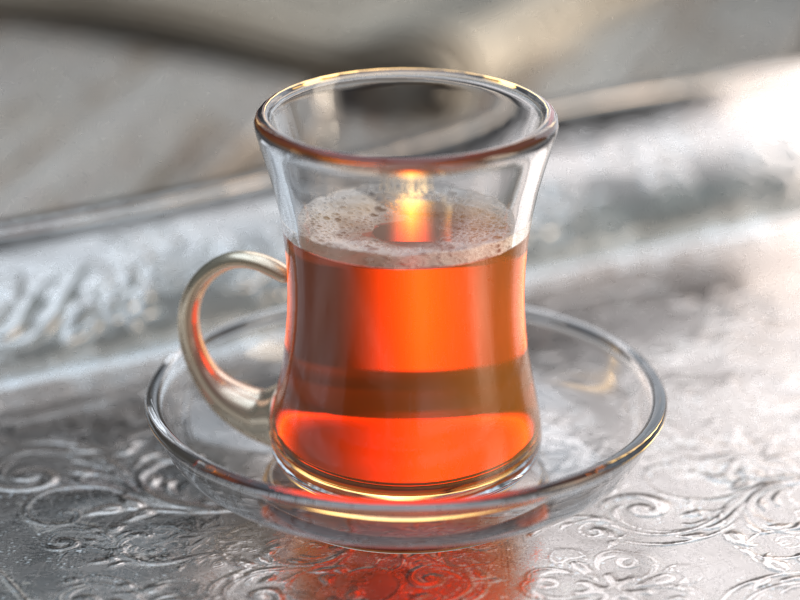

This example demonstrates the effect of the Refraction Max Depth parameter. When the Max Depth value is too low, it produces incorrect results. Also, in the last two examples, see how areas with total internal reflection are also affected by the Refraction Max Depth.




Aberration = 1

Aberration = 2

Aberration = 3


Aberration = 4

Aberration = 5

Aberration = 6

Aberration = 7


Aberration = 8


Aberration = 9


Aberration = 10

1
10

Refraction Max Depth = 1

Refraction Max Depth = 3

Refraction Max Depth = 5

Refraction Max Depth = 8

Refraction Max Depth = 10

1
10






Previous:

V-Ray Material Coat


 Next:

V-Ray Material Sheen

Notes



  • The new translucency modes perform actual volumetric multibounce scattering inside the object, therefore they are influenced by the actual geometry quite a bit. Widely used “cheats” like smooth surface normals may not be enough for low-poly meshes, especially with a small scatter radius. In this case, subdividing the mesh either using V-Ray subdivision or e.g. the Turbosmooth modifier improves the results. V-Ray subdivision is slower to render, but is able to tessellate the mesh in a view-dependent manner without having to guess the number of subdiv iterations.
  • V-Ray provides several other ways to achieve sub-surface scattering, for example the V- Ray Fast SSS2 and V-Ray ALSurface materials. These materials use various approximations for the sub-surface scattering effect in order to speed up the calculations. In many cases, they produce a decent result. However, in more complicated scenarios, the approximations may be inaccurate.




    The approximation used in the VRayALMtl assumes a mostly flat surface, therefore in areas of high geometric detail and relatively large scattering radius it tends to produce inaccurate results that don't capture the details very well. In addition, the Directional mode of the VRayALMtl material may introduce unwanted color shifts.
