UVW

The UVW texture can be used to illustrate the UVW mapping of object faces. It is usually combined with the Extra Texture render element.
Note that UVW texture produces proper results when the material is applied to the object's faces instead of a group/component or a texture projection tools are used. See UV Tools for more information.

Component – Specifies which component to show.

All
U
V
W

Type – Controls how the texture is positioned on the geometry.

2D (UV Channel) – The texture uses the object UV coordinates.
Environment – This mode is applicable if the map is connected to an Environment slot or a Dome light.
Mapping Source – The texture uses an external UV placement source.

2D (UV Channel)

UV Channel/Set – Specifies the index of the mapping channel data to use. A value of 1 takes the first available channel.

Repeat U/V – Determines how many times the texture is repeated in the 0 to 1 UV square.

Lock U/V Repeat – Locks the U/V Repeat.

Offset U/V – Controls the texture offset in the U and V direction.

Rotate – Rotates the texture (in degrees).

Tile U/V – Tiles the texture in the U and V direction. If the option is disabled, the Default texture color is used outside the 0 to 1 UV square. Default color is found in Parameters > Color Manipulation.

Mirror U/V  – Mirrors the texture in the U and V direction separately. The option cuts the texture in the half flipping one side vertically or horizontally. This can be used to avoid seams in-between non-tileable repeated textures.

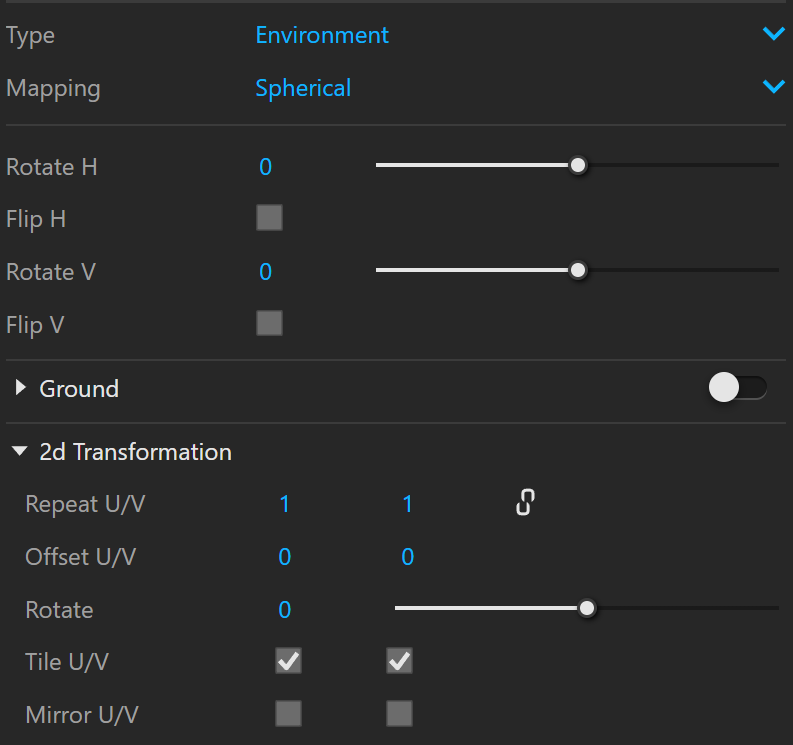

Environment

Mapping – Specifies the type and shape of the texture.

Angular
Cubic
Spherical
Mirror Ball
Screen

Rotate H – Rotates the environment sphere horizontally.

Flip H – Flips the environment sphere horizontally.

Rotate V – Rotates the environment sphere vertically.

Flip V – Flips the environment sphere vertically. This option is active only in Spherical Mapping.

Ground – Enables ground projection of the texture.

Position X/Y/Z – Offsets the ground projection along the X/Y/Z axis.

Radius – Specifies a projection radius. Can be used to control the scale of the projection.

2d Transformation – see 2D (UV channel) parameters.

Mapping Source

UV Placement Source – External UV placement source to be used for the texture placement.

2D (UV Channel)

Environment

Mapping Placement
