This page provides details on the V-Ray for Revit UI and how it is integrated into the Revit interface.
Overview
The V-Ray for Revit Ribbon gives you access to all of the settings and options that you will need with V-Ray.
View
This allows you to select which one of the Revit 3D views to render.
Render
Allows you to choose your Render type and open up the V-Ray Frame Buffer.
Quality
Provides a drop down menu with a specific set of presets. They provide preset settings ranging from very low quality “Low” settings to “High+” settings.
Resolution
Allows you to choose your Output and Crop Box resolution size.
Lighting
Gives you access to the options for the V-Ray Sun, V-Ray Dome Light, No V-Ray Lights, and Artificial Lights.

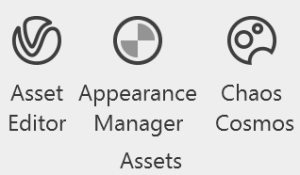

Assets
Gives you access to the V-Ray Asset Editor, V-Ray Appearance Manager, and Chaos Cosmos Browser.
Camera
Gives you access to the V-Ray Camera settings.
Settings
Gives you access to the V-Ray Settings.
Online Help
Opens the online V-Ray for Revit Help documents.
The following Render options are accessible through the panel:
- Online Help - This will take to you the V-Ray for Revit home page.
- Disable V-Ray - Releases your V-Ray license. V-Ray for Revit will be locked and won't be available for use.
- About - Displays V-Ray version information, Credits and Copyrights, and the End User License Agreement, as shown in the image below.
- Feedback - Redirects to the V-Ray for Revit forum where users can give us feedback.
- License Server - Opens a webpage to your Online License server information.
V-Ray
Allows you to acquire your license and gives you access to the Online License Server.
