The Lighting Render Element stores direct lighting and diffuse color information.

Overview

The Lighting Render Element stores direct lighting information from lights in the scene and materials as lit by the scene's lighting. This render element can be used to brighten, lessen, or tint just the direct lighting in a composite without affecting indirect light or reflections, for example.

The vrayRE_Lighting pass is the same as Raw Light multiplied by vrayRE_Diffuse. vrayRE_Lighting is provided as a convenience to the compositor.

Specific objects can be excluded from this Render Element by disabling the Generate Render Elements option in the VRayObjectProperties node for the selected object(s).
UI Path: ||Display Render Settings button|| > Render Elements tab > Lighting





To use render elements, select from the Available render elements column and click the Add button to add the passes you wish to generate at render time. When you render the scene, the added render elements listed in the column on the right, will also render, which can be viewed from the VFB window's channel drop-down menu.

For more information on the parameters on this dialog, see the Render Elements tab page.

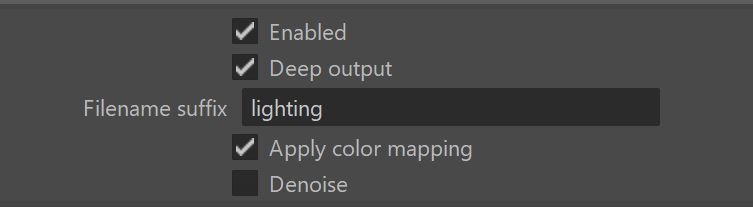

Attributes

The parameters for this render element appear in the Attribute Editor under Extra V-Ray Attributes.

Enabled – When enabled, the render element appears in the V-Ray Virtual Frame Buffer.

Deep output – Specifies whether to include this render element in deep images.

Filename suffix – The text added to the end of the rendered file, when saved as a separate file (e.g. myrender.specular.vrimg).

Apply color mapping – Applies the color mapping options specified in the Color mapping rollout of the VRay tab in the Render Settings window to this render element. This option is enabled by default.

Denoise – Enables the render element's denoising, provided the Denoiser render element is present.





Common uses

The Lighting Render Element is useful for changing the appearance of direct illumination after rendering in a compositing or image editing application. Below are a couple of examples of possible uses.






Lighting Render Element




Lighting Render Element with contrast added and tinted












Original Beauty Composite








Composite with contrast added and tinted









Compositing Formula

vrayRE_Raw_Light x vrayRE_Diffuse = vrayRE_Lighting
